New ABB Motors for Sale
Industrial Motor Repair Capabilities
We have documented 96 different Servo Manufacturer repair reports in our Database
We repair AC Servos, DC Servos, AC Spindles, and AC Actuators
Capable of 24-hour repairs in many cases
We have thousands of spare and rebuilt motors in our inventory for parts or exchange motorsIndustrial Motor Repair Procedures
-
Data
Motor nameplate data is recorded
-
Inspection
A visual inspection of any damage to the motor.
We check for- Damaged Leads/Terminals
- Worn output shaft/keyways
- Cracks in end bells or covers
-
Job Ticket
We complete to full write up off all motor data
Including- All winding tests (Resistance, Meg Ω, Continuity)
- All bearing sizes
- All seal sizes
- Brake torque tests (Record Torque, winding resistance)
- Feedback Tests (Tachometer/Encoder)
-
Motor Disassembly
- Bearing and seal sizes are recorded
- Bearing fits are measured on shaft and End bell
- Brake torque is measured as well as resistance and Meg Ω
- More winding tests are performed (Surge and HiPOT tests)
- Stator is then washed and baked in oven
- Magnets are inspected for cracks or if loose on shaft
- Encoder is tested with either (Heidenhain PWM20, Sick PGT-11, or Mitchell Electronics equipment)
-
Assembly
- New bearings are installed
- New seals are installed
- If required, new windings are impregnated
- Brakes are rebuilt or replaced depending on manufacturer design.
- Rebuilt or New encoders are installed and aligned using:
- (Heidenhain PWM20, Sick PGT-11, or Mitchell Electronics equipment)
-
Rotor Balancing and Testing
- Rotor is run through a full vibration diagnostic
-
Run Testing
- Every Motor is Run for a minimum of 1 hour using one of our drives.
- We use Siemens S110, S120, IndraDrive, AB Kinetix 300, Yaskawa 7, and AMC drives
-
Service Report
- A Final 3-page Service Report is filled out
- Pinout diagram for power and feedback is provided
- Brake torque is recorded a final time for our Service Reports
- A photo of nameplate and motor is attached
- A motor tag is installed on motor with QR code linking Service Report and Job Histories
- If requested, a YouTube link is attached to the service report of motor
New ABB Motor Distributor

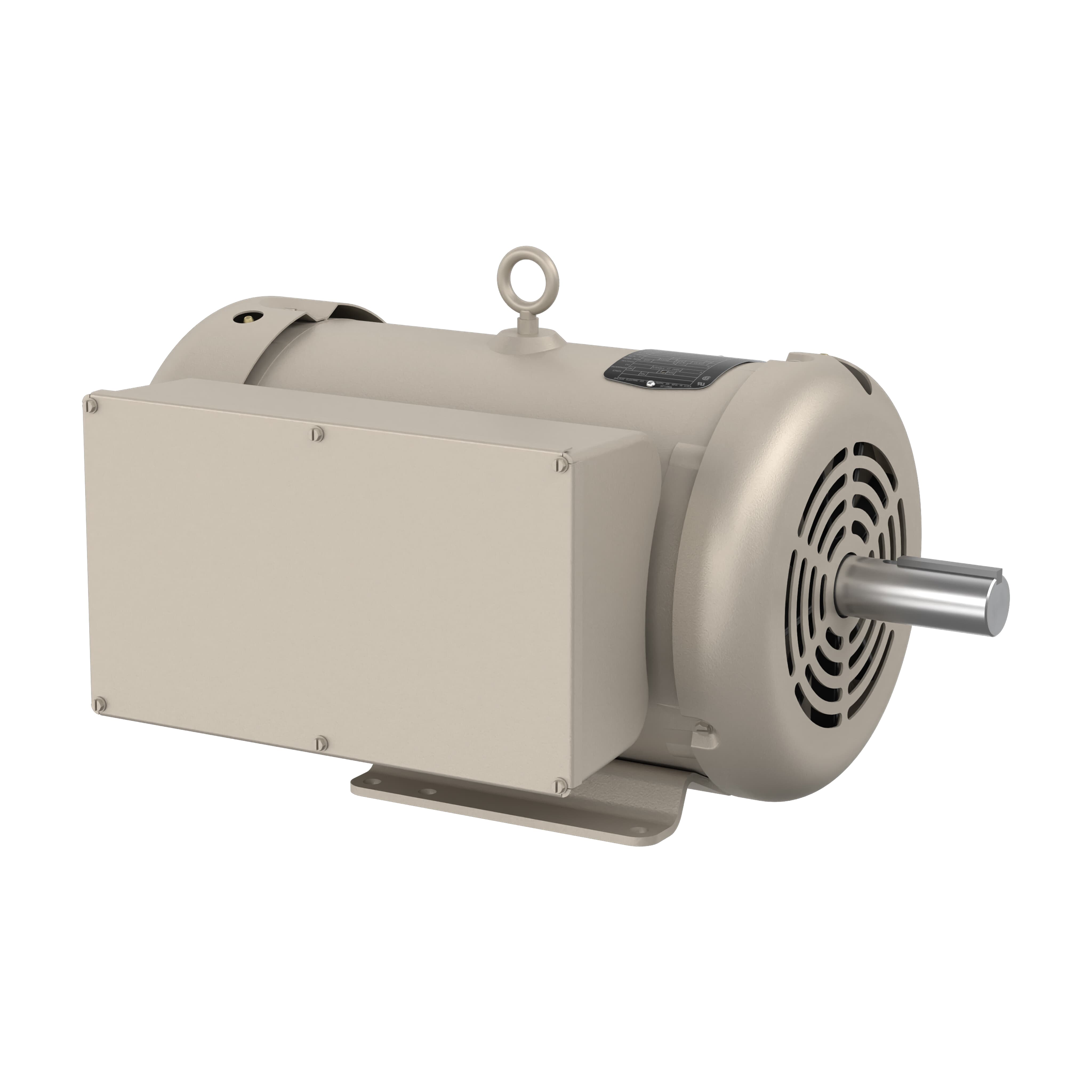

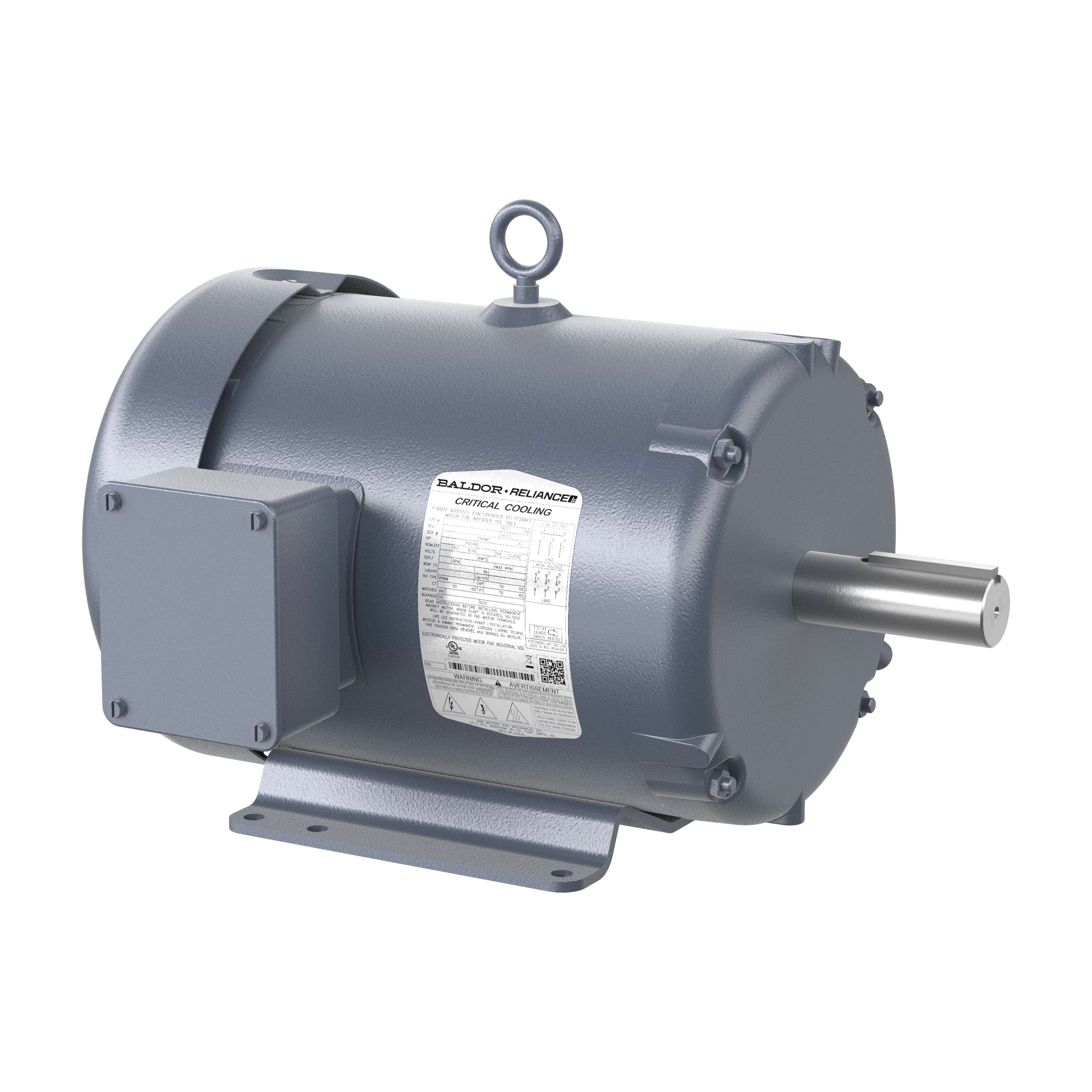

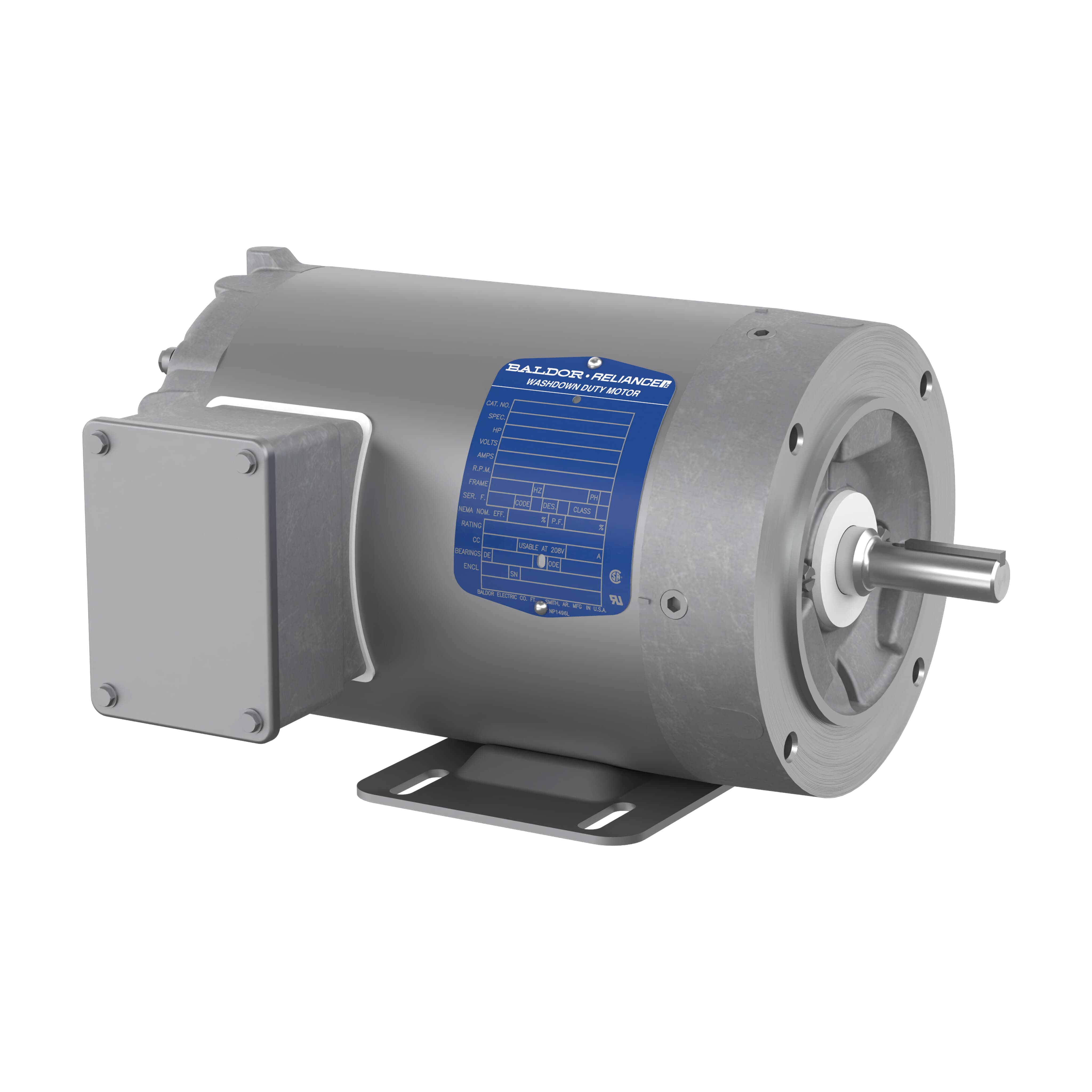

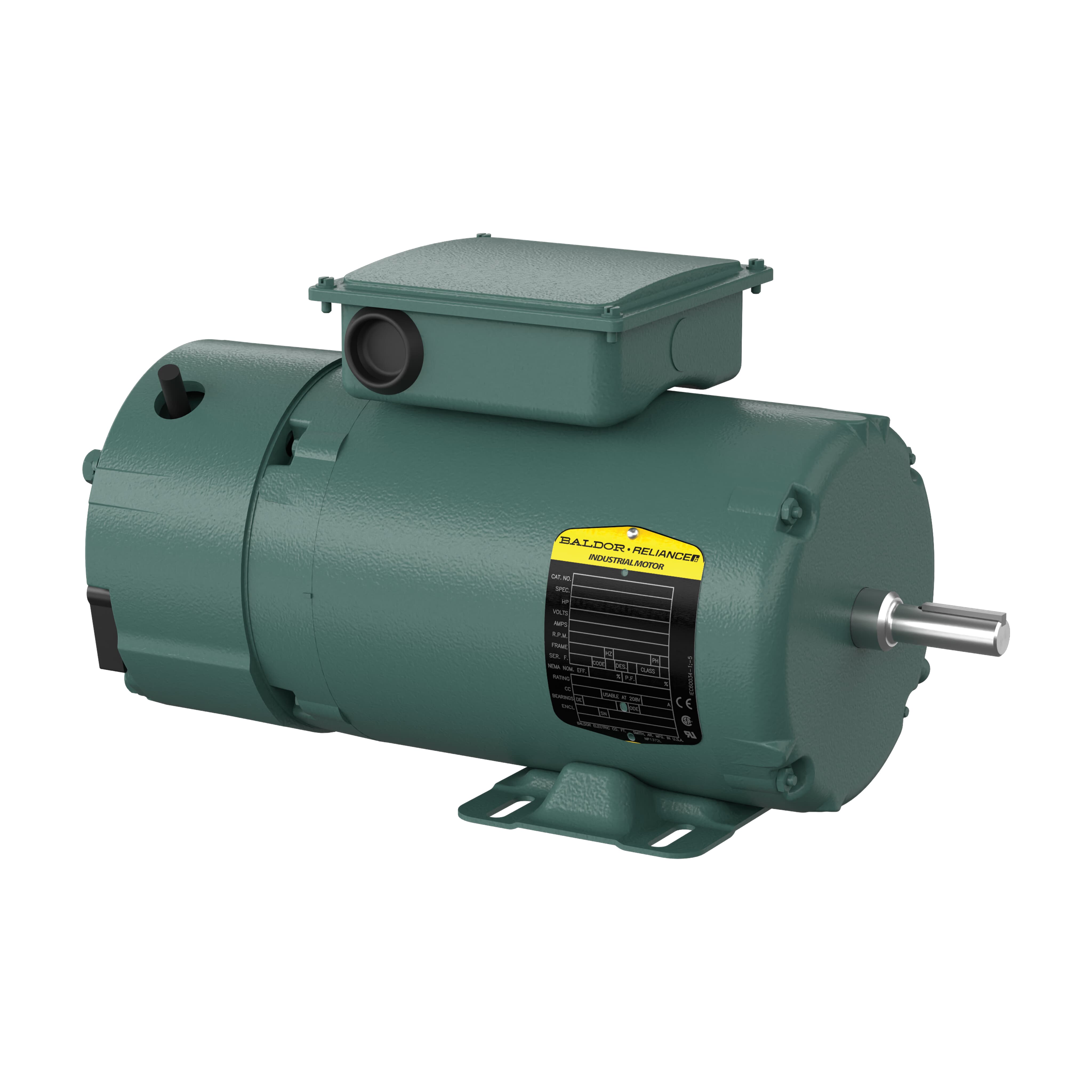

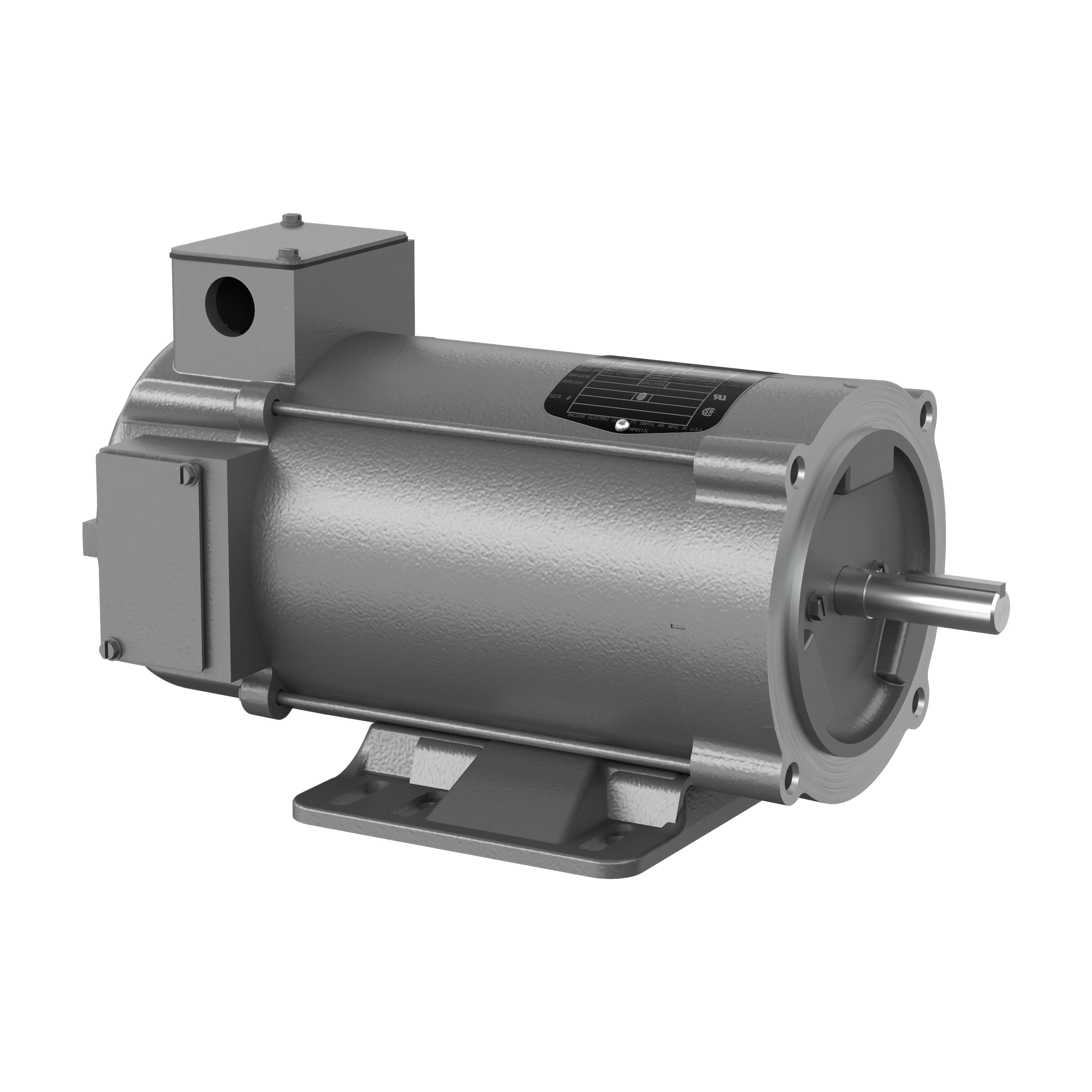

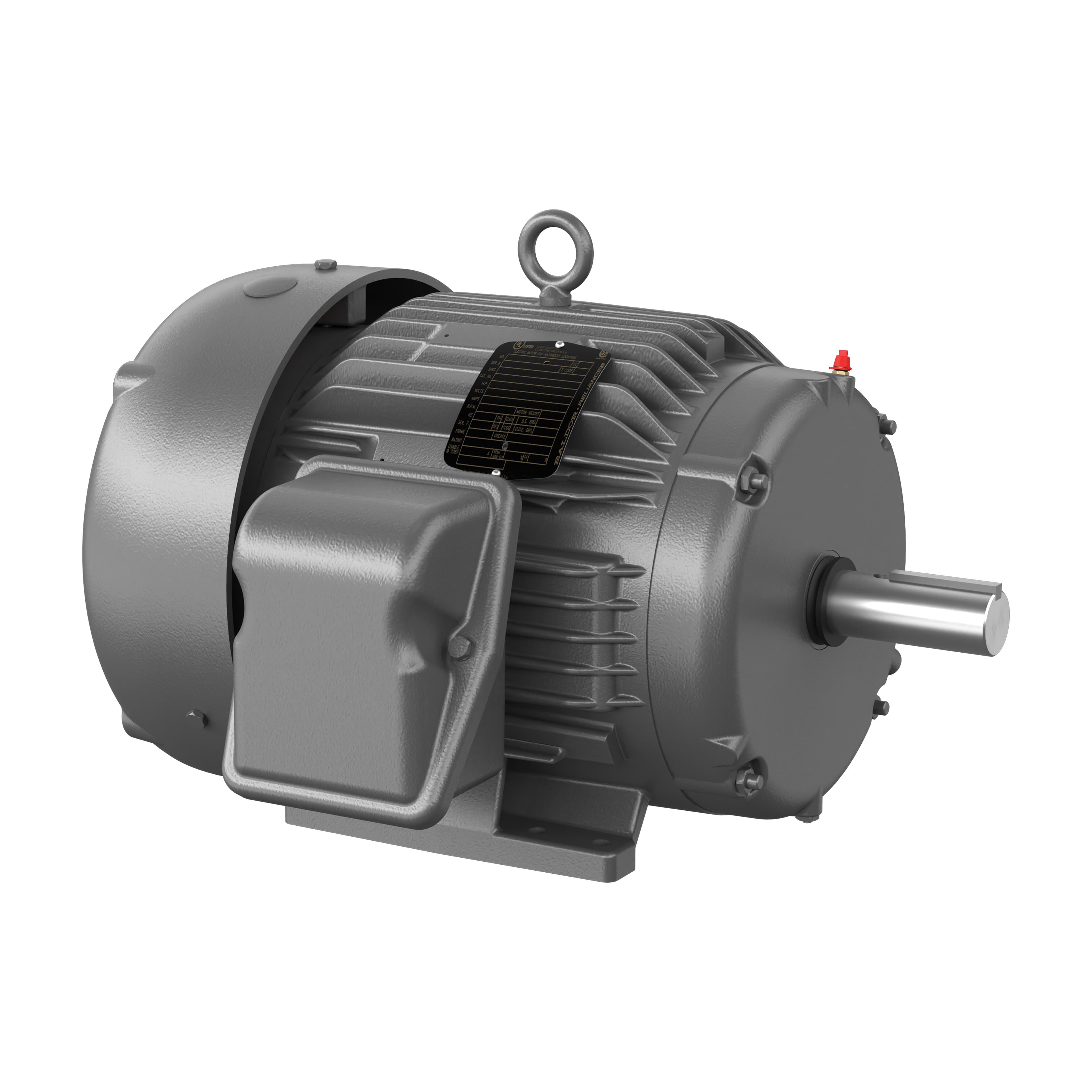

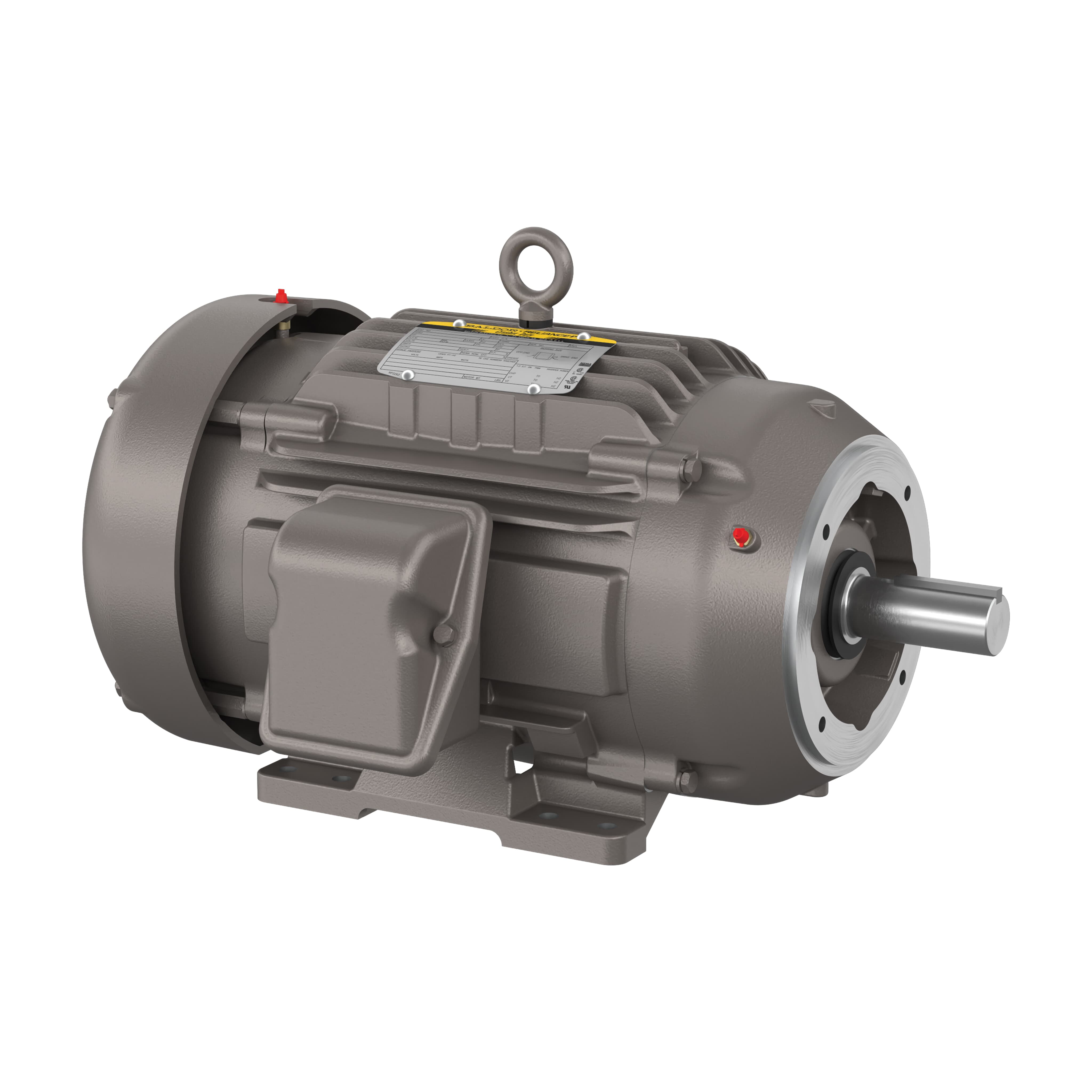

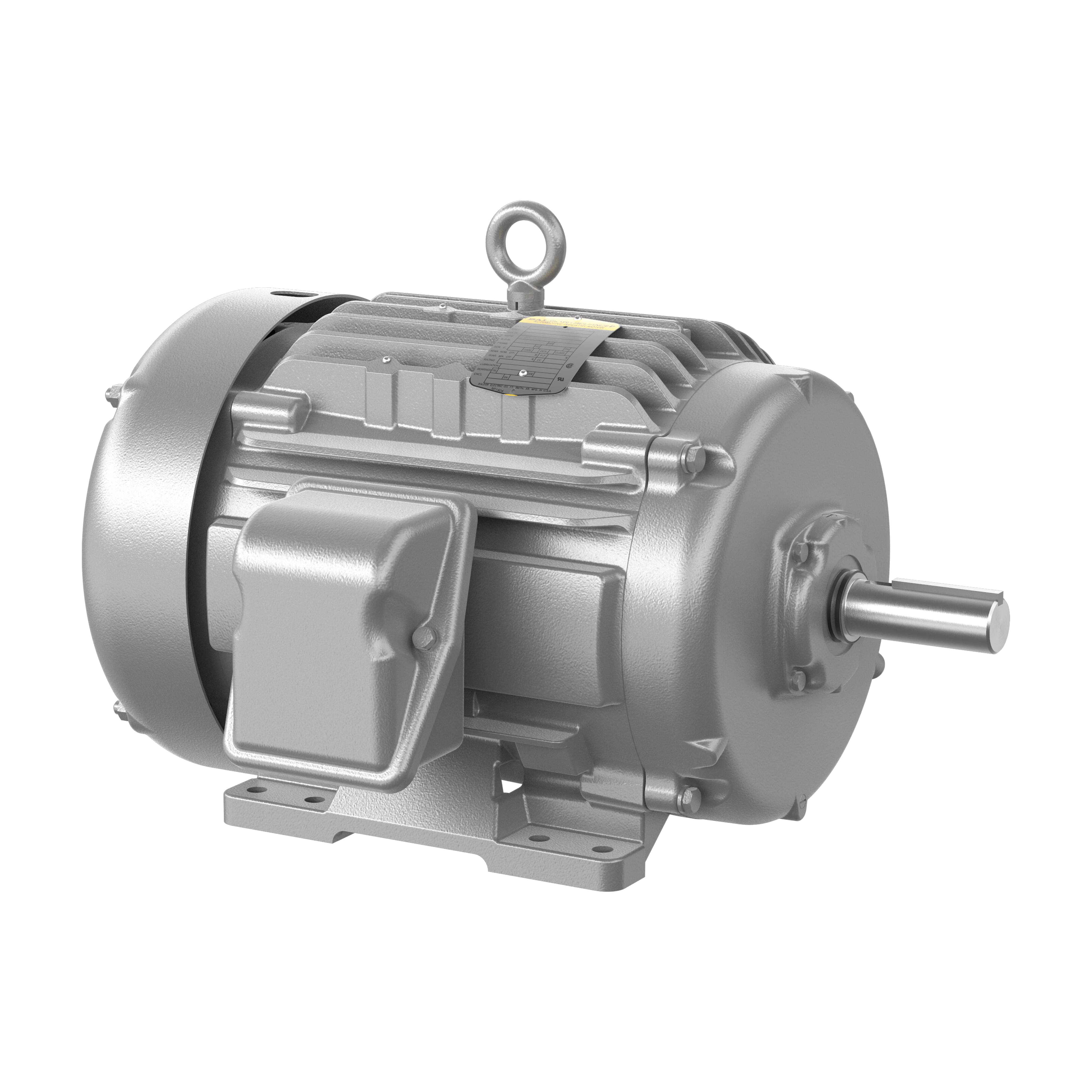

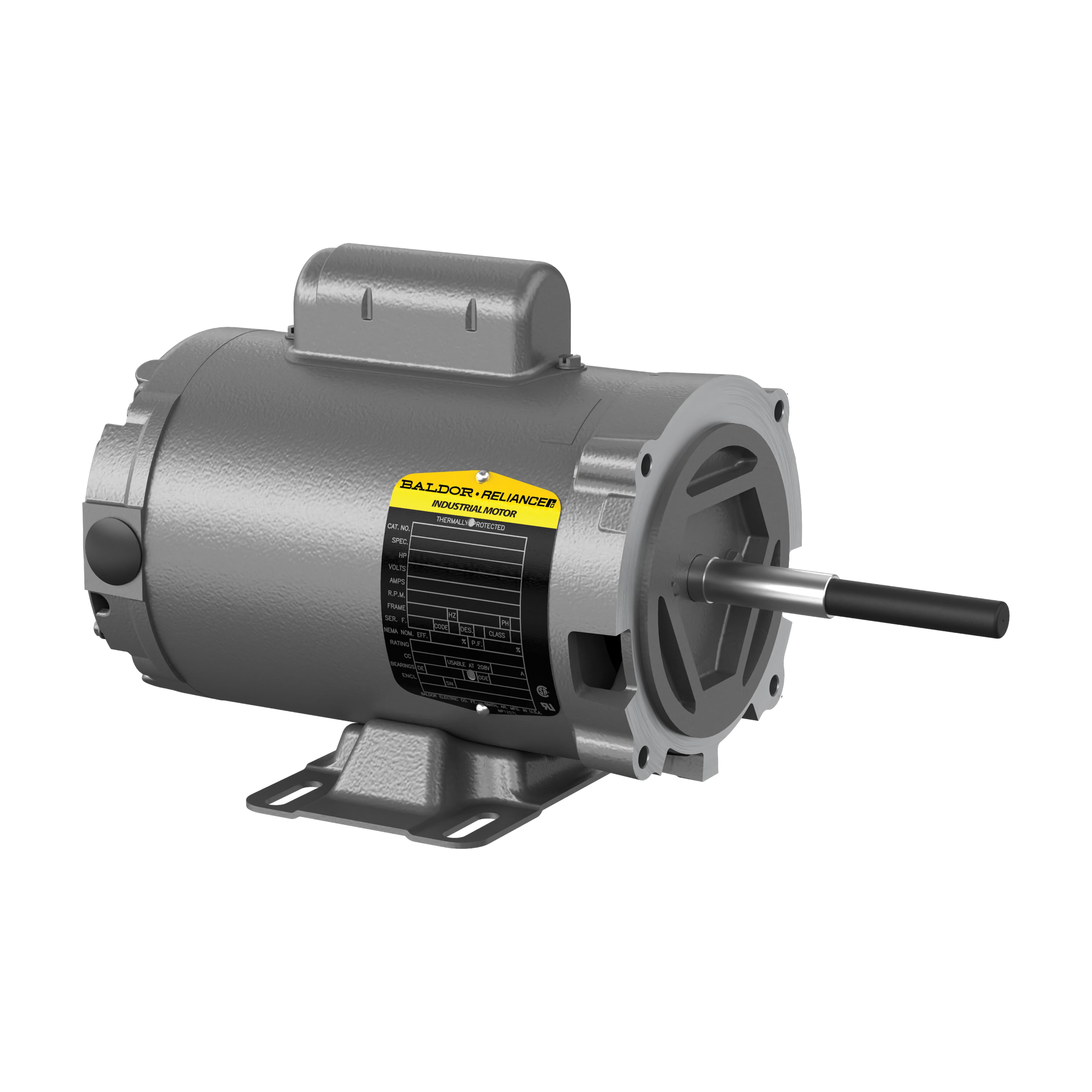

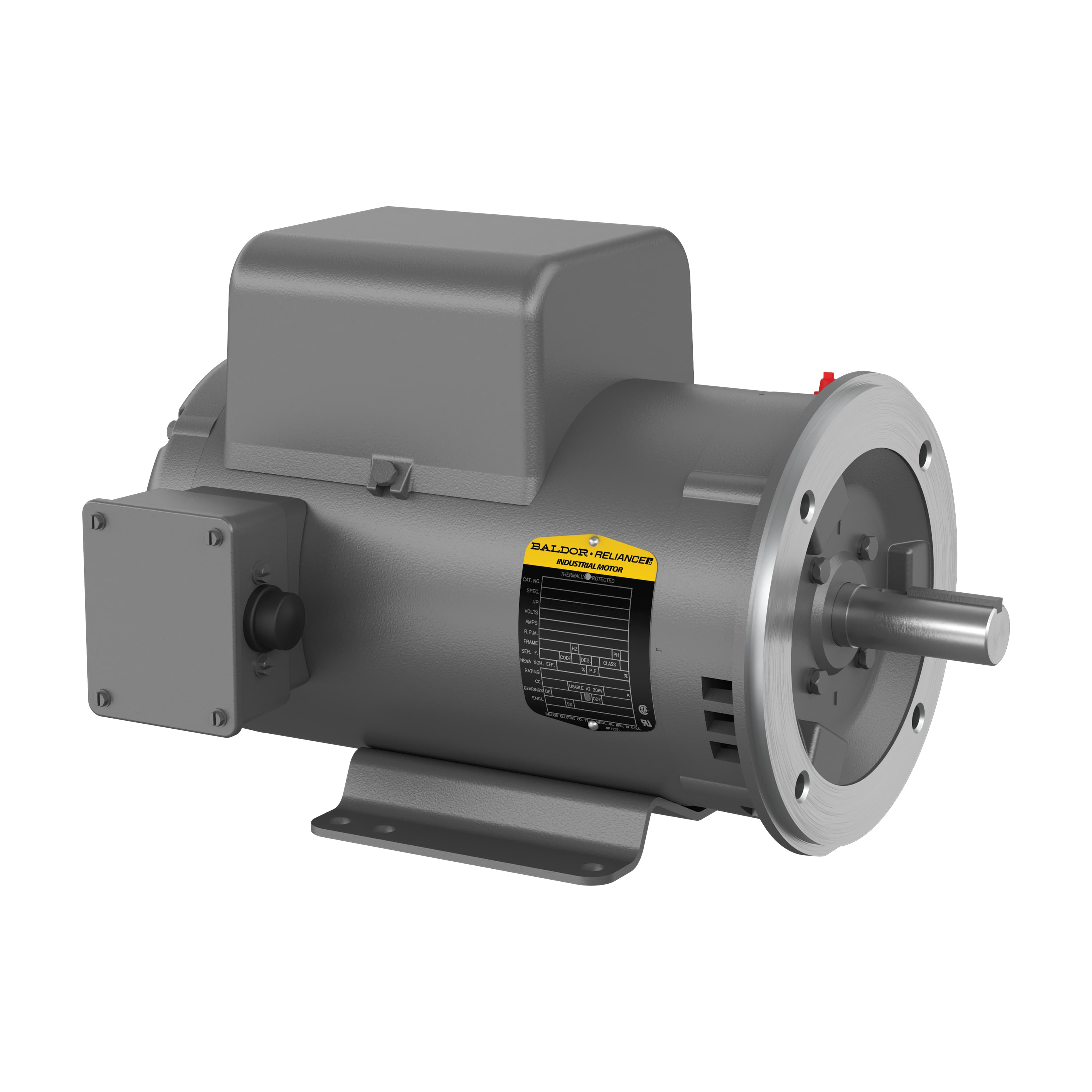

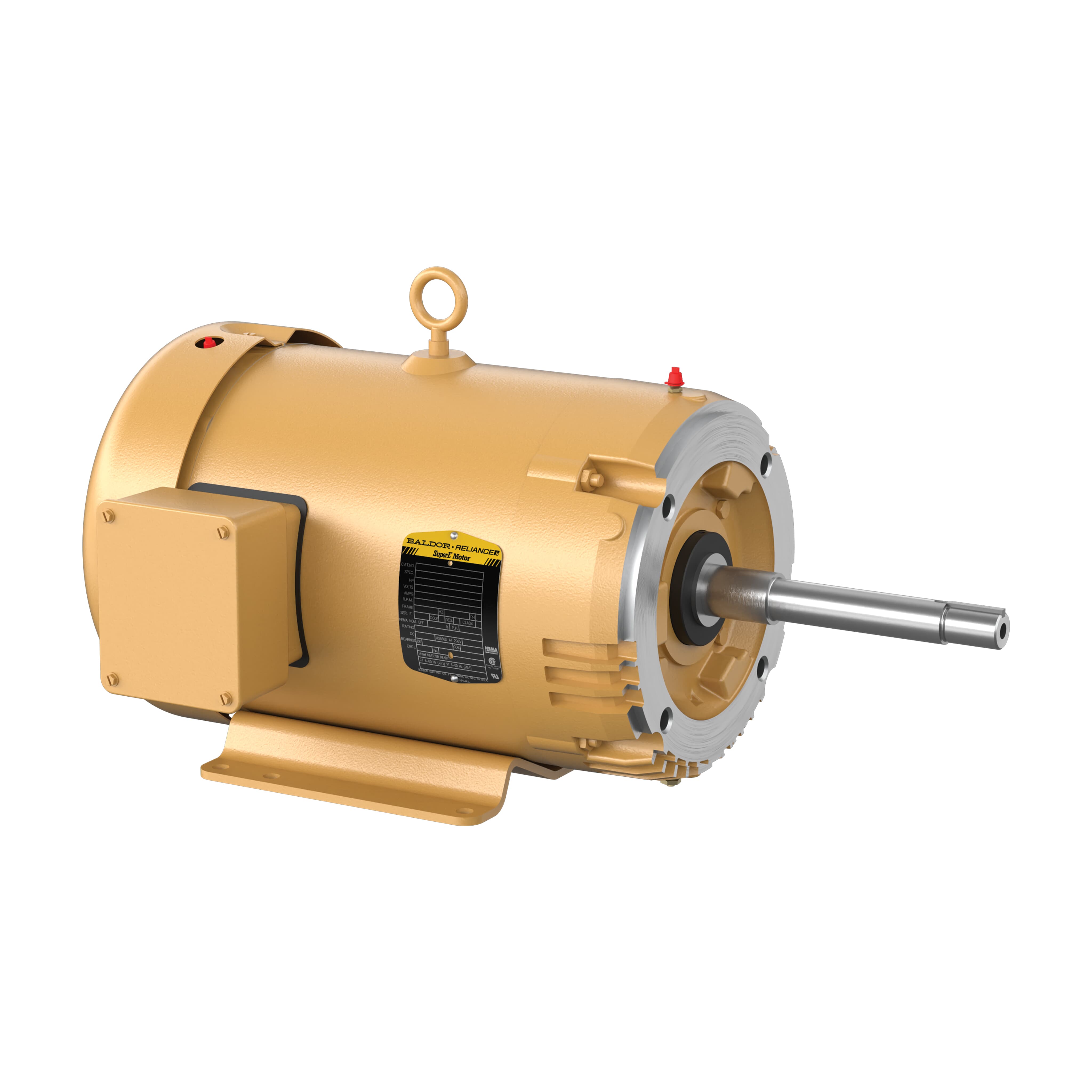

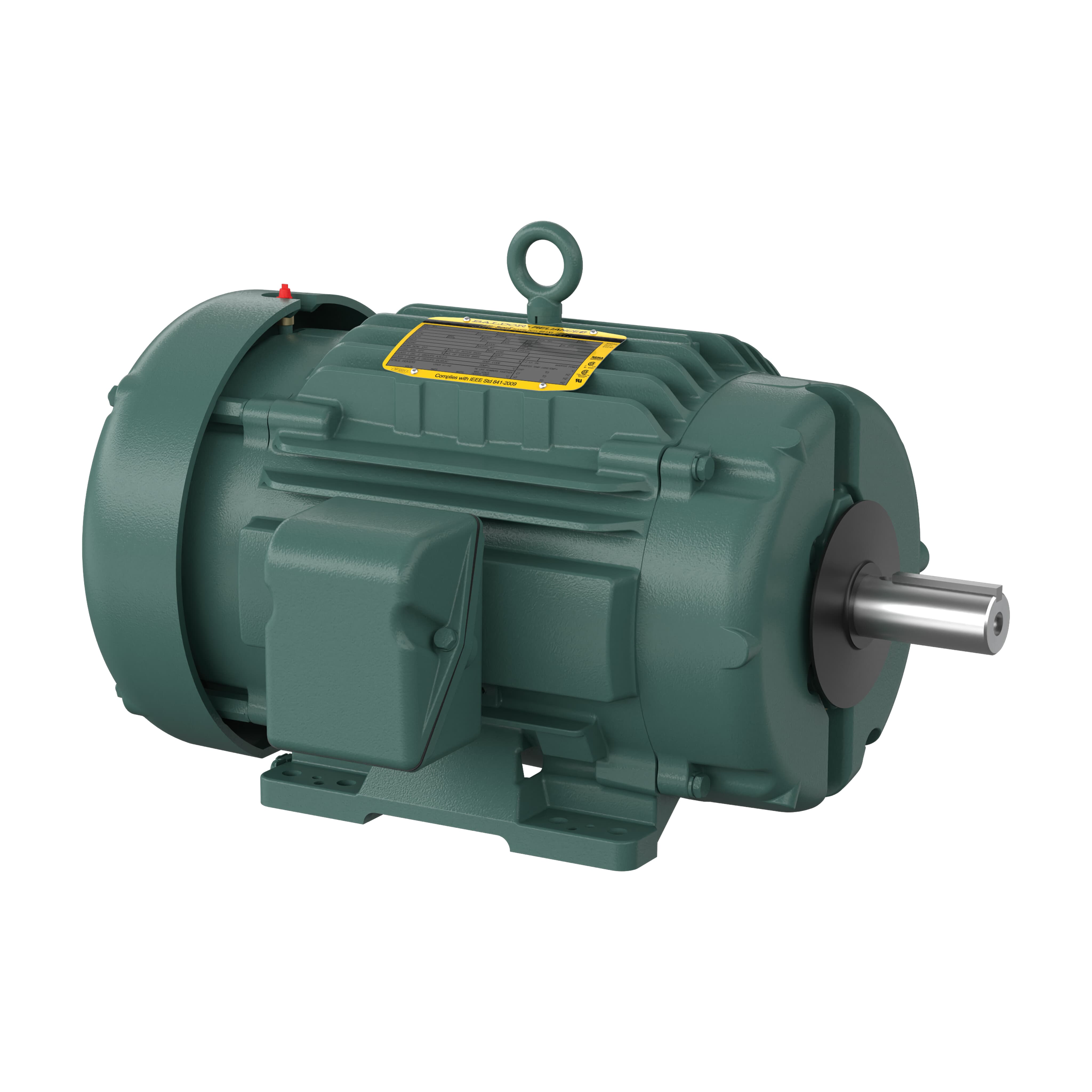

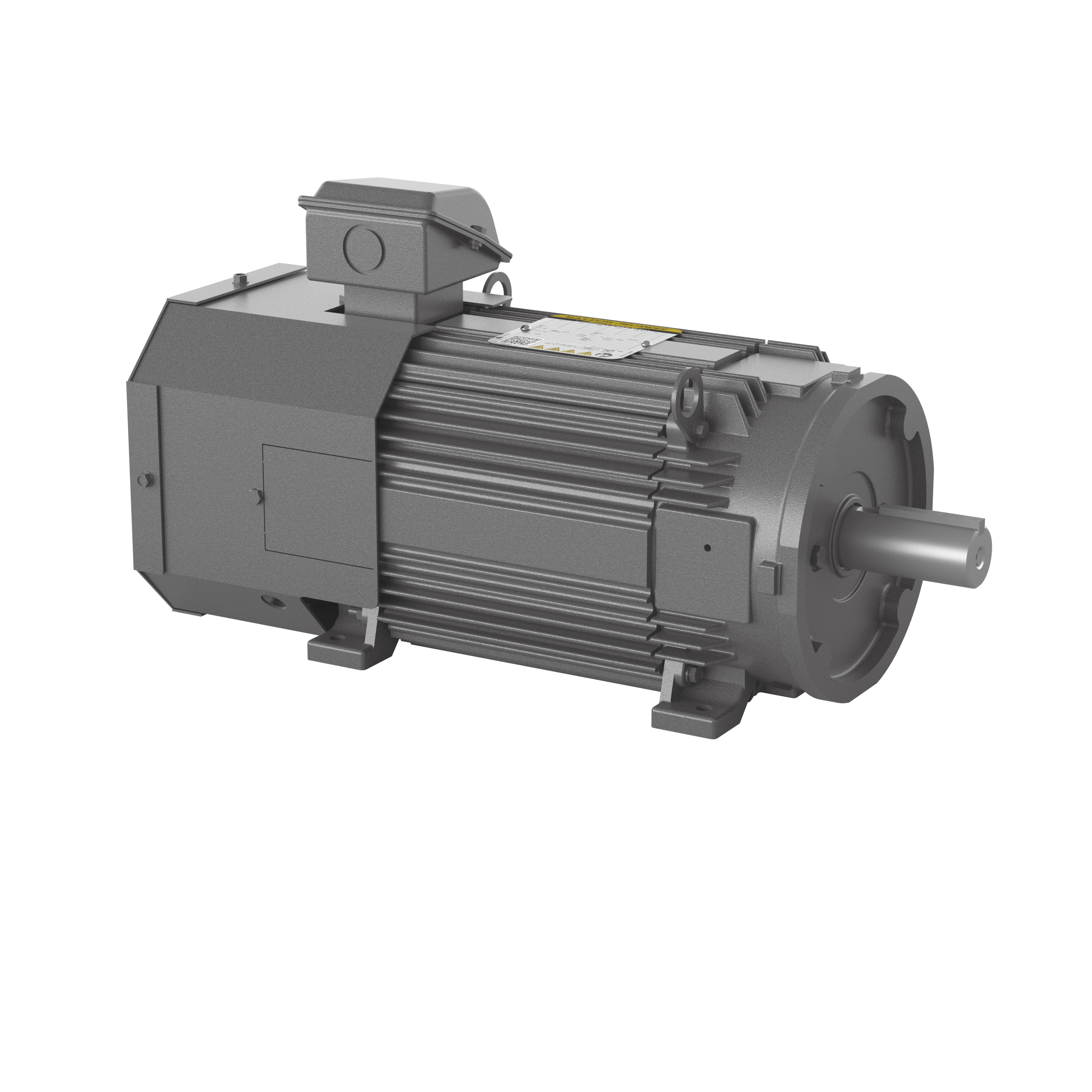

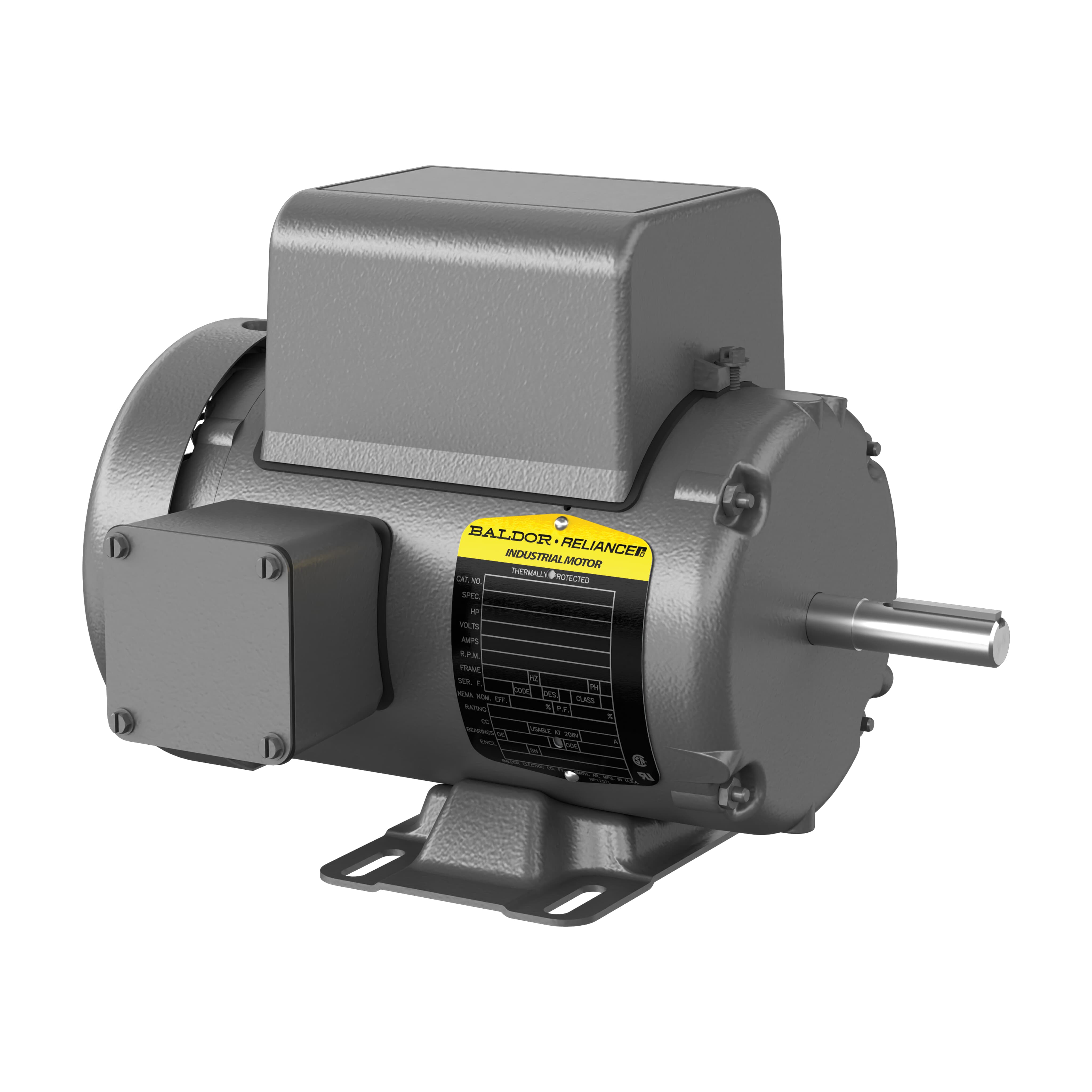

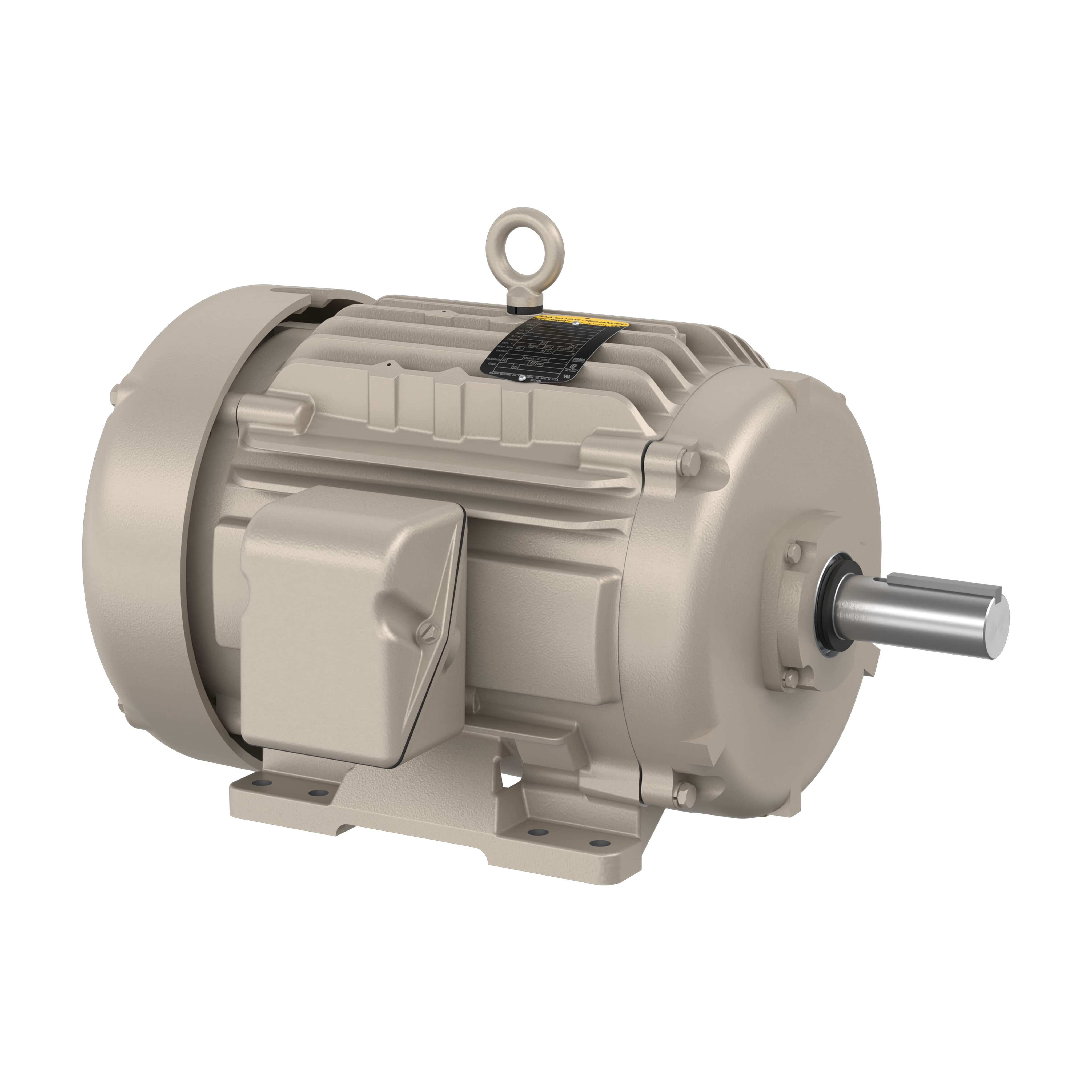

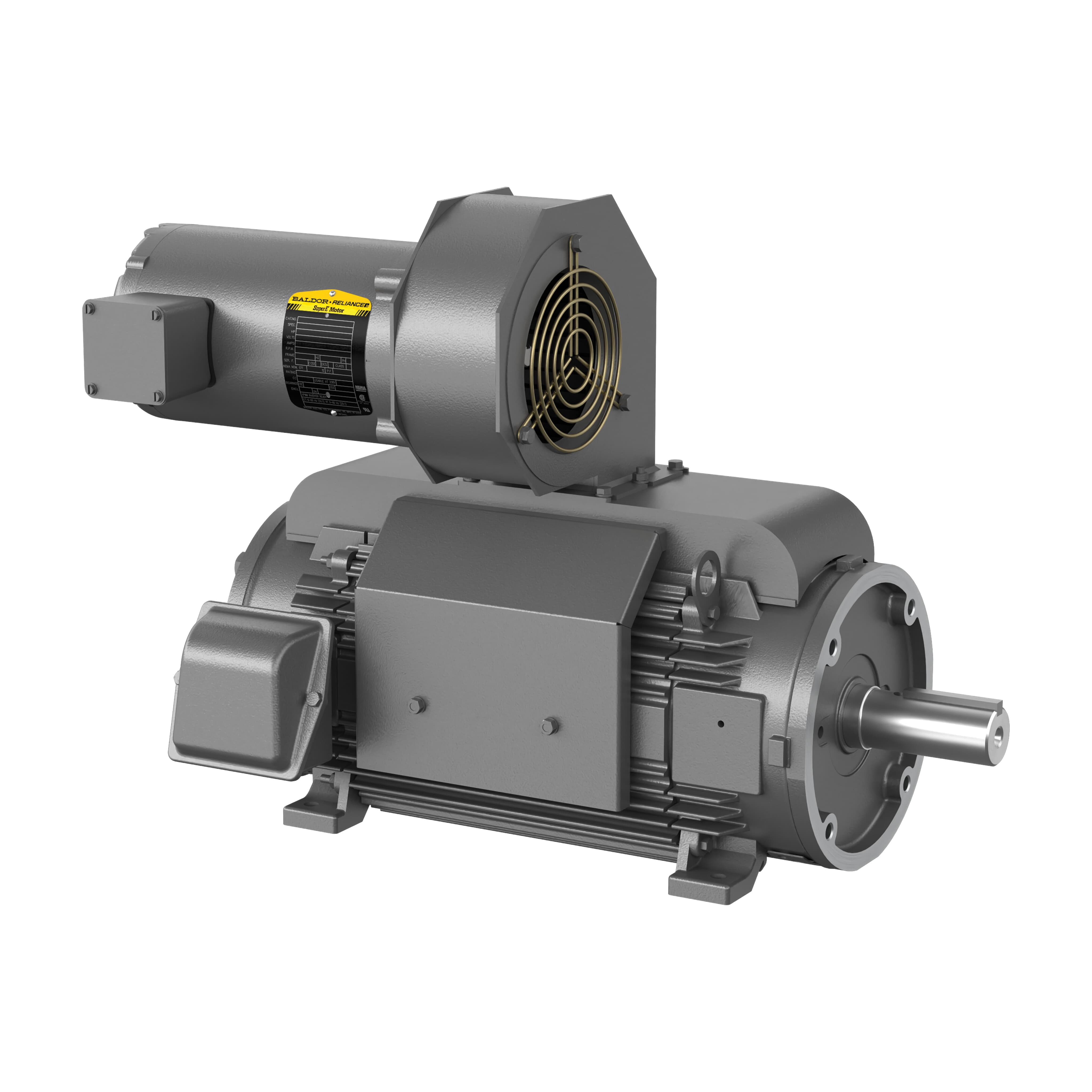

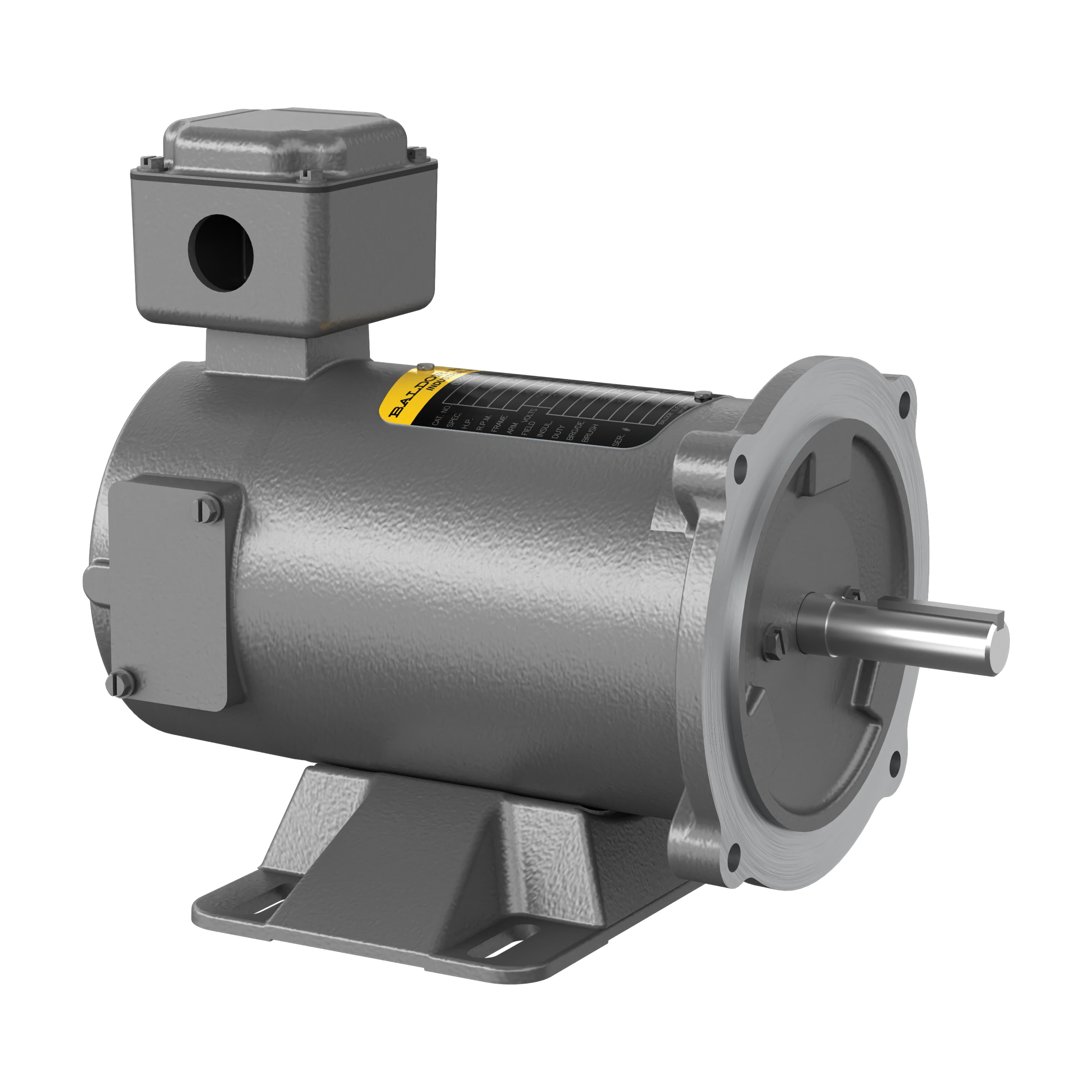

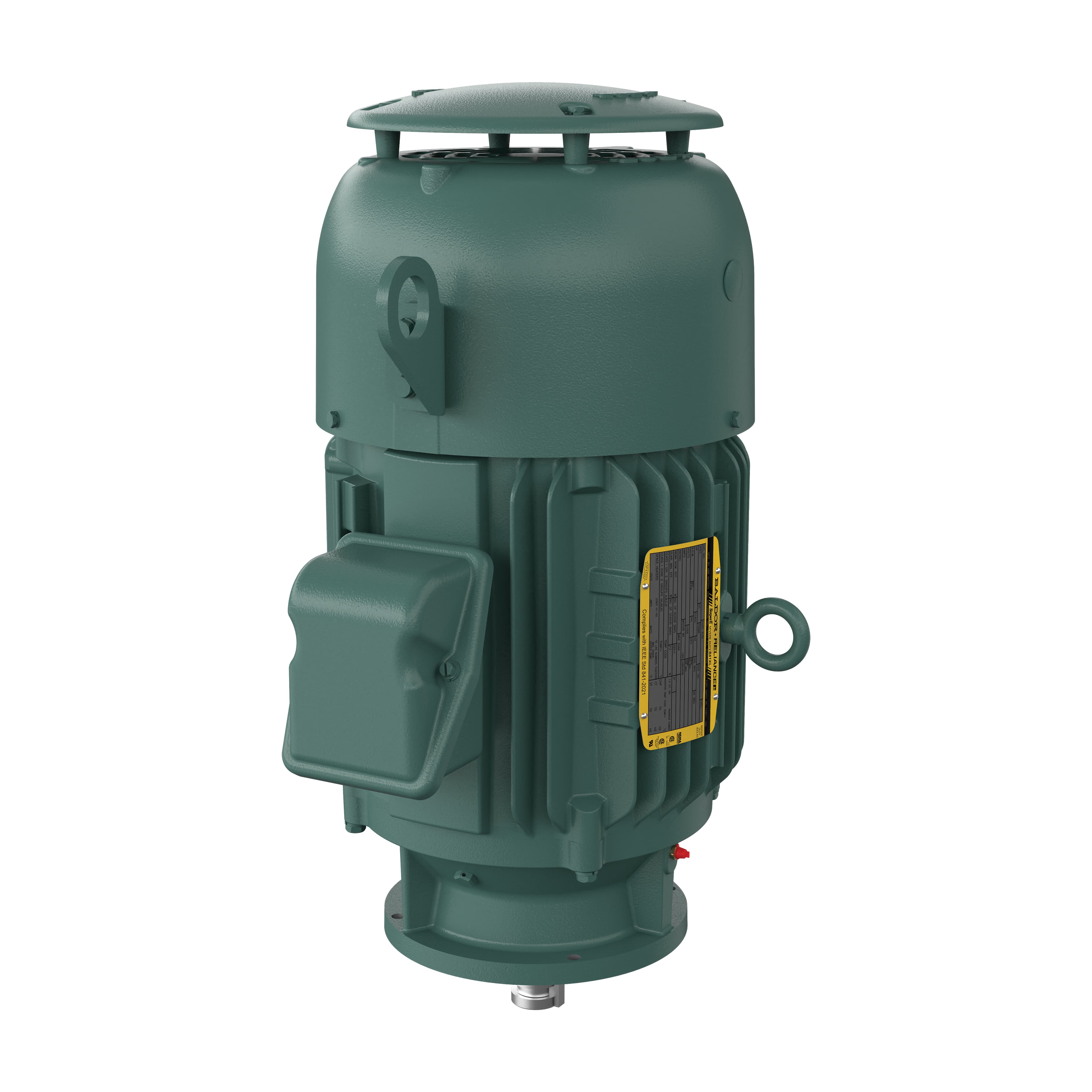

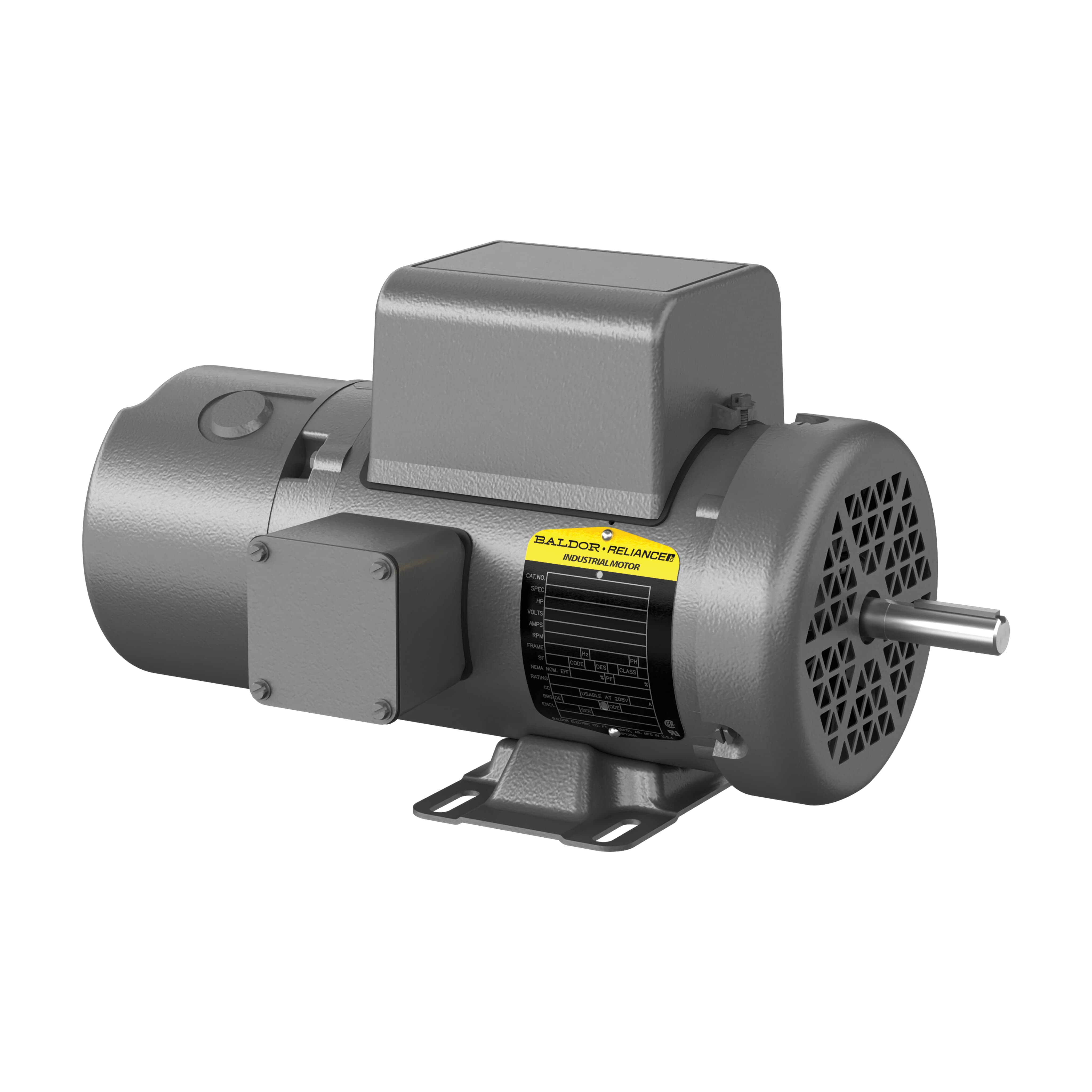

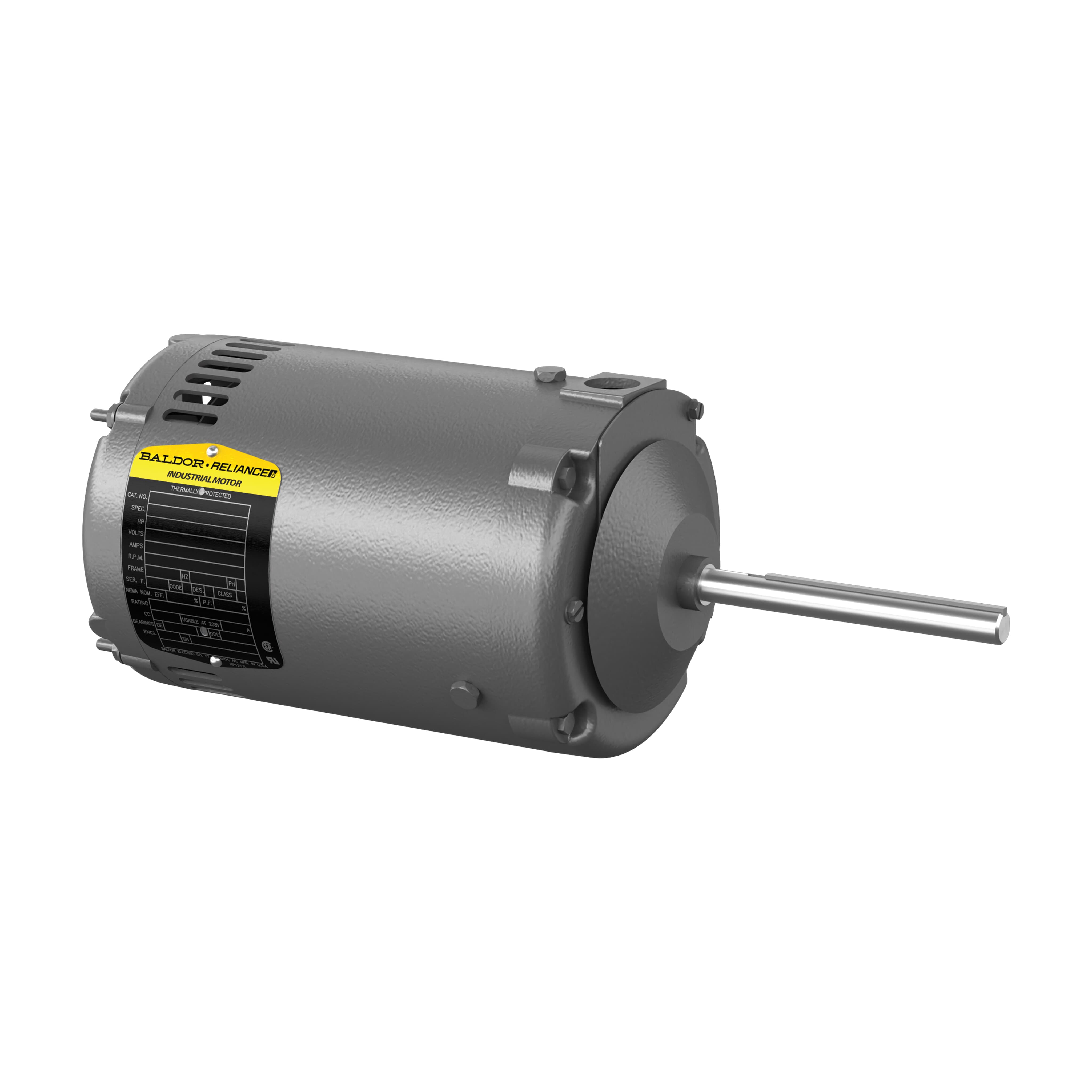

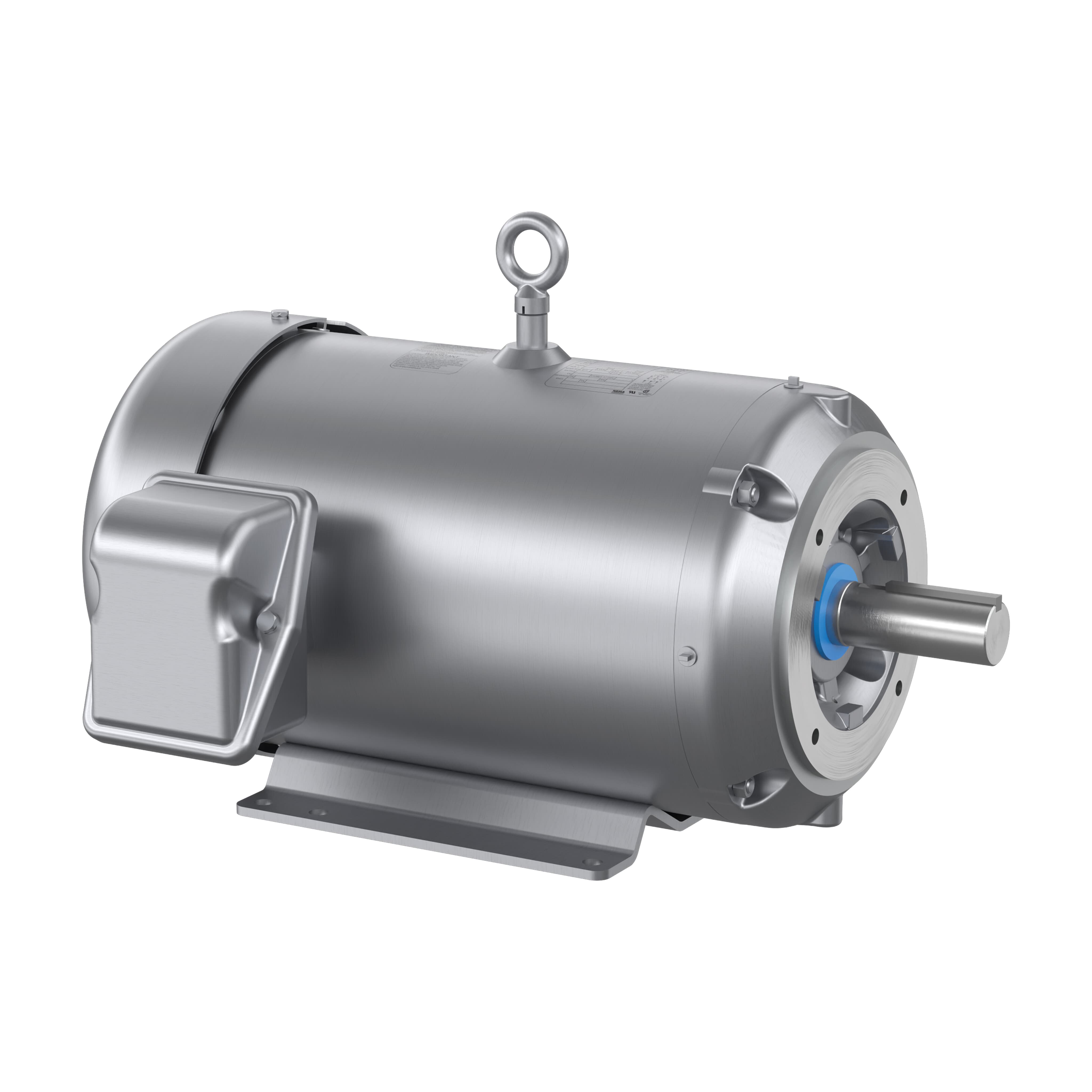

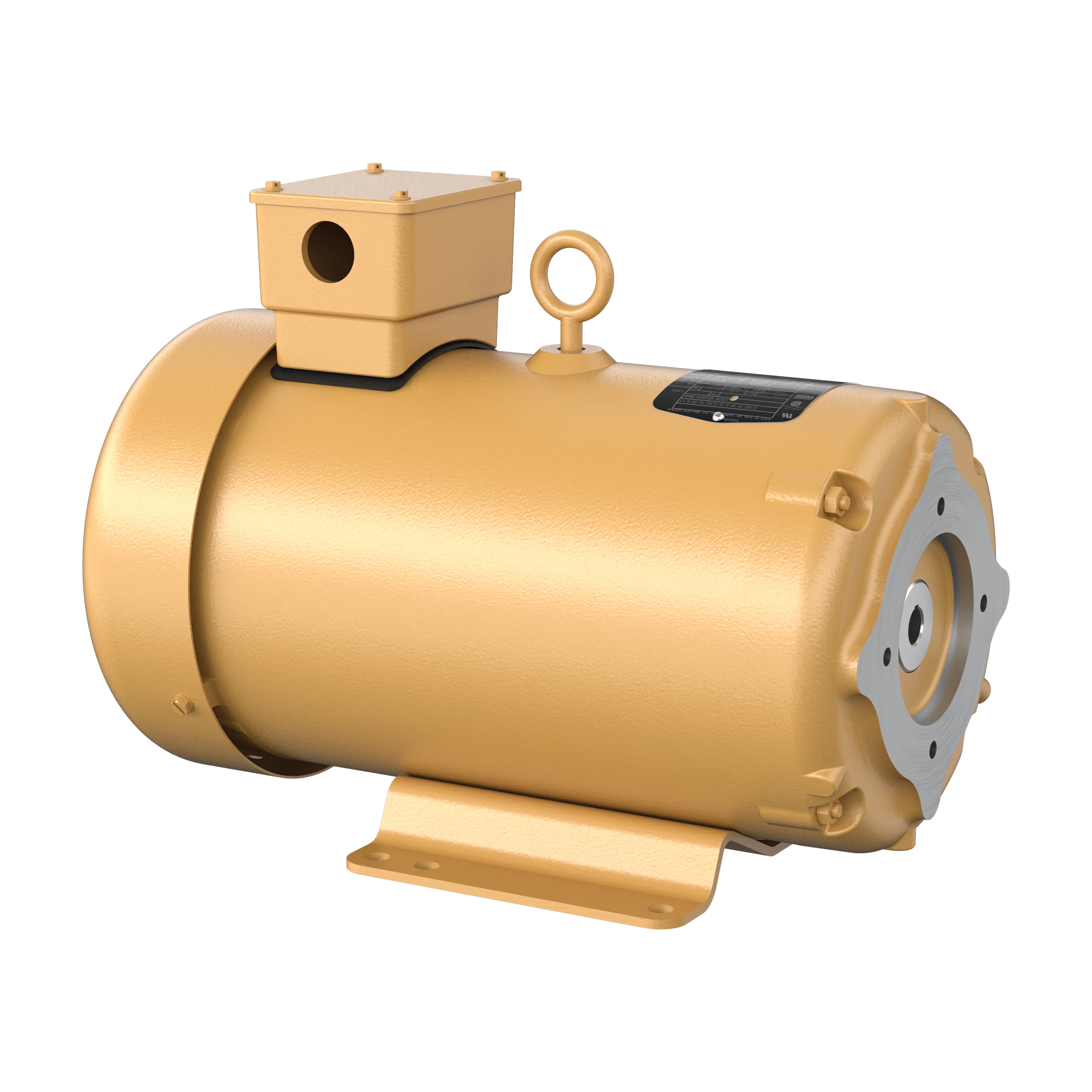

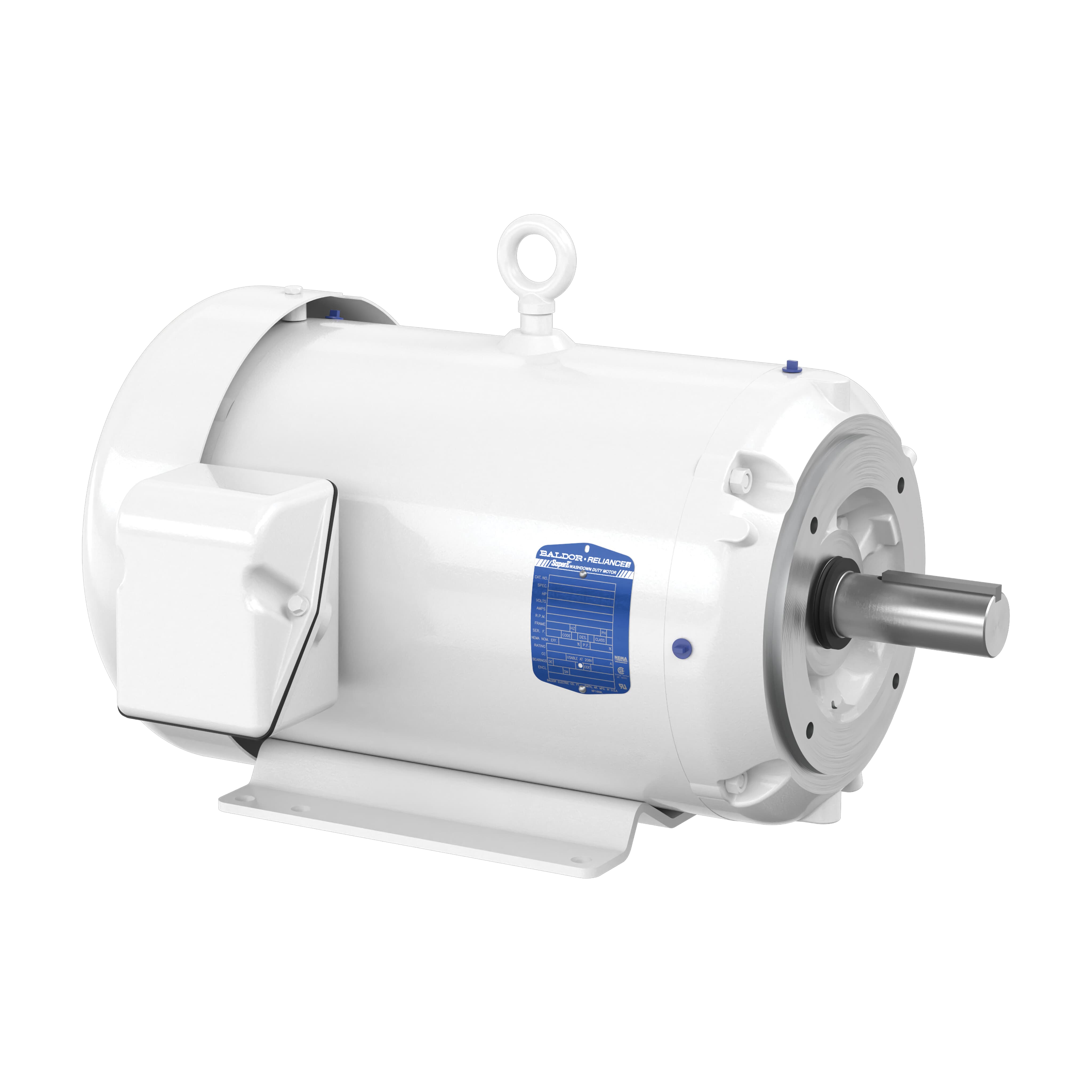

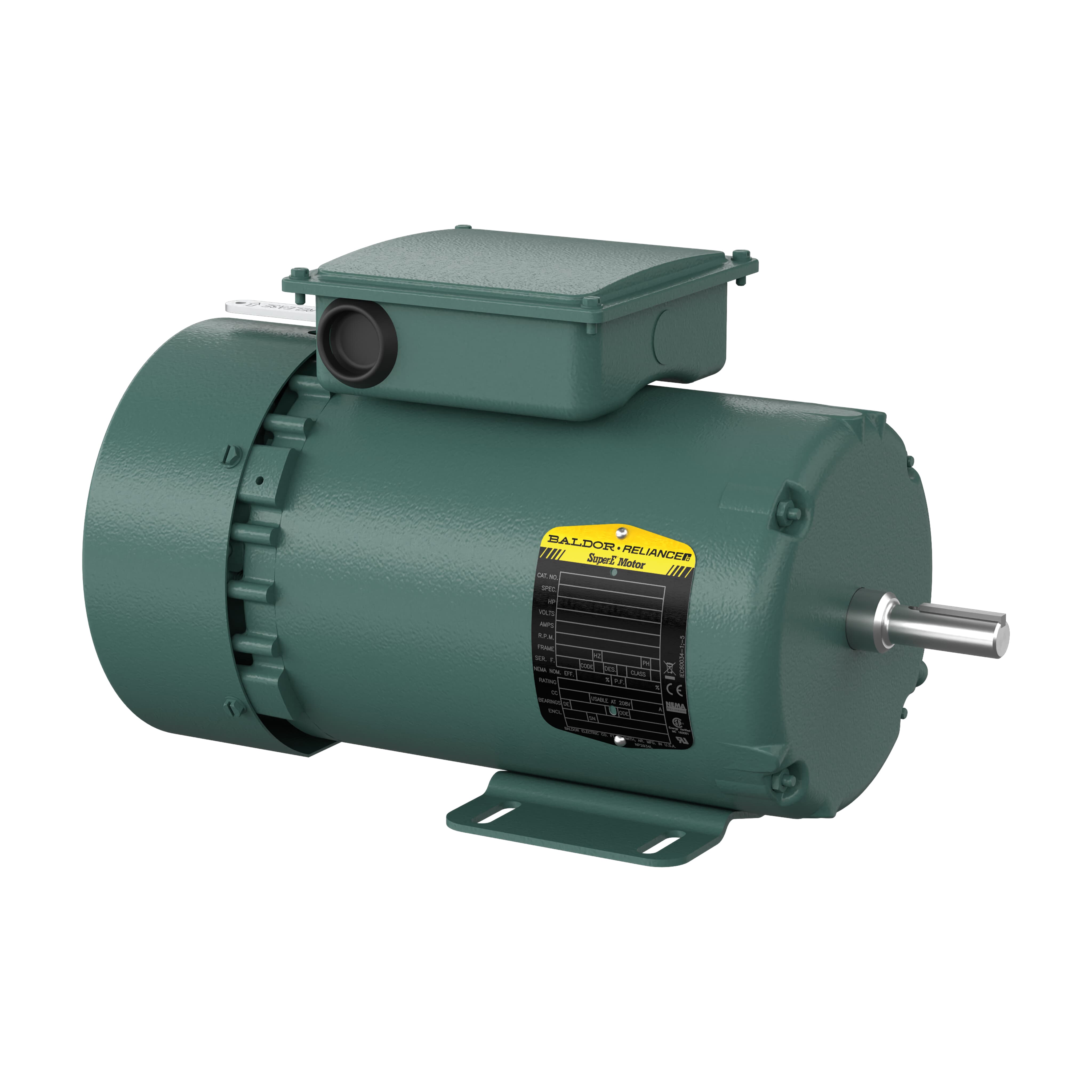

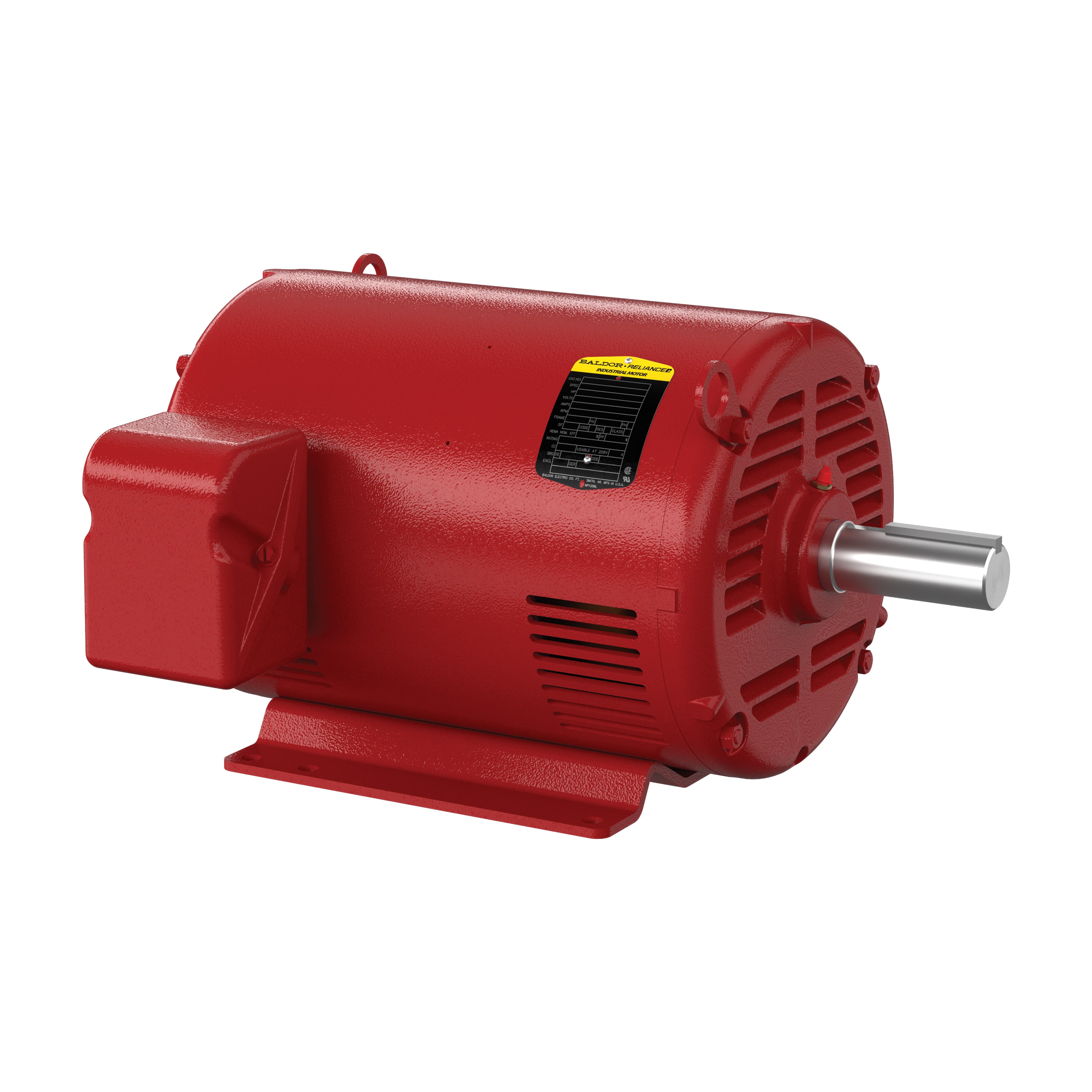

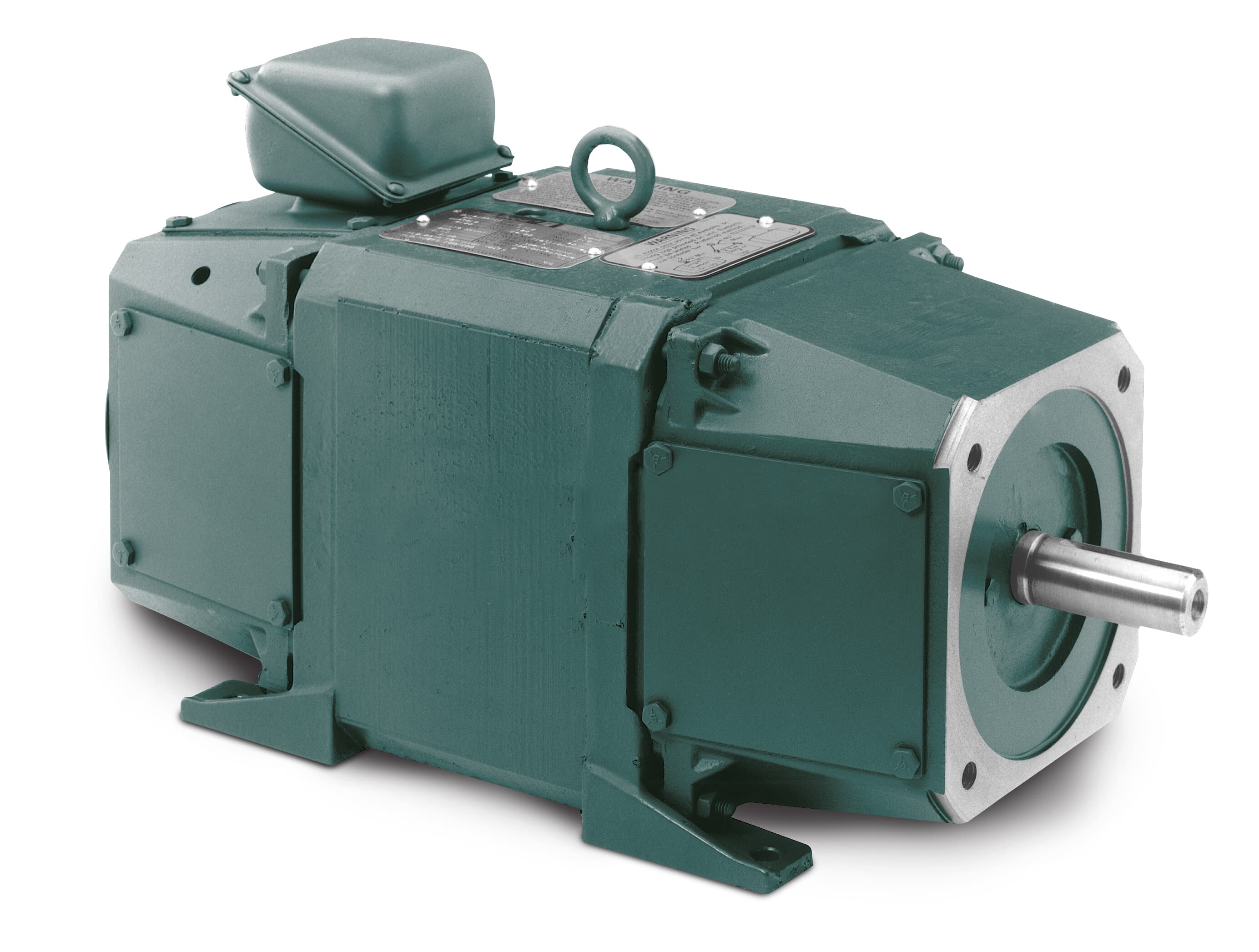

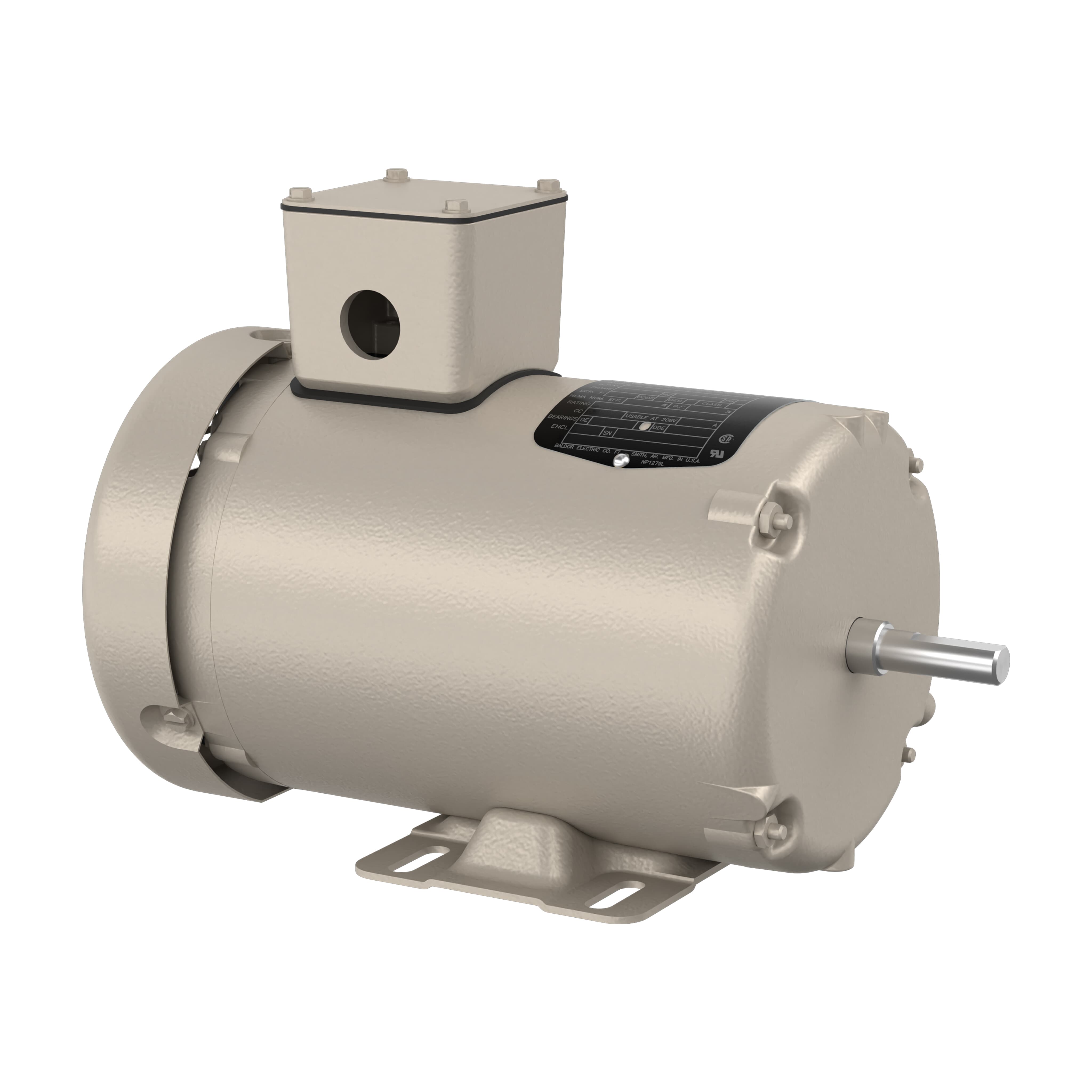

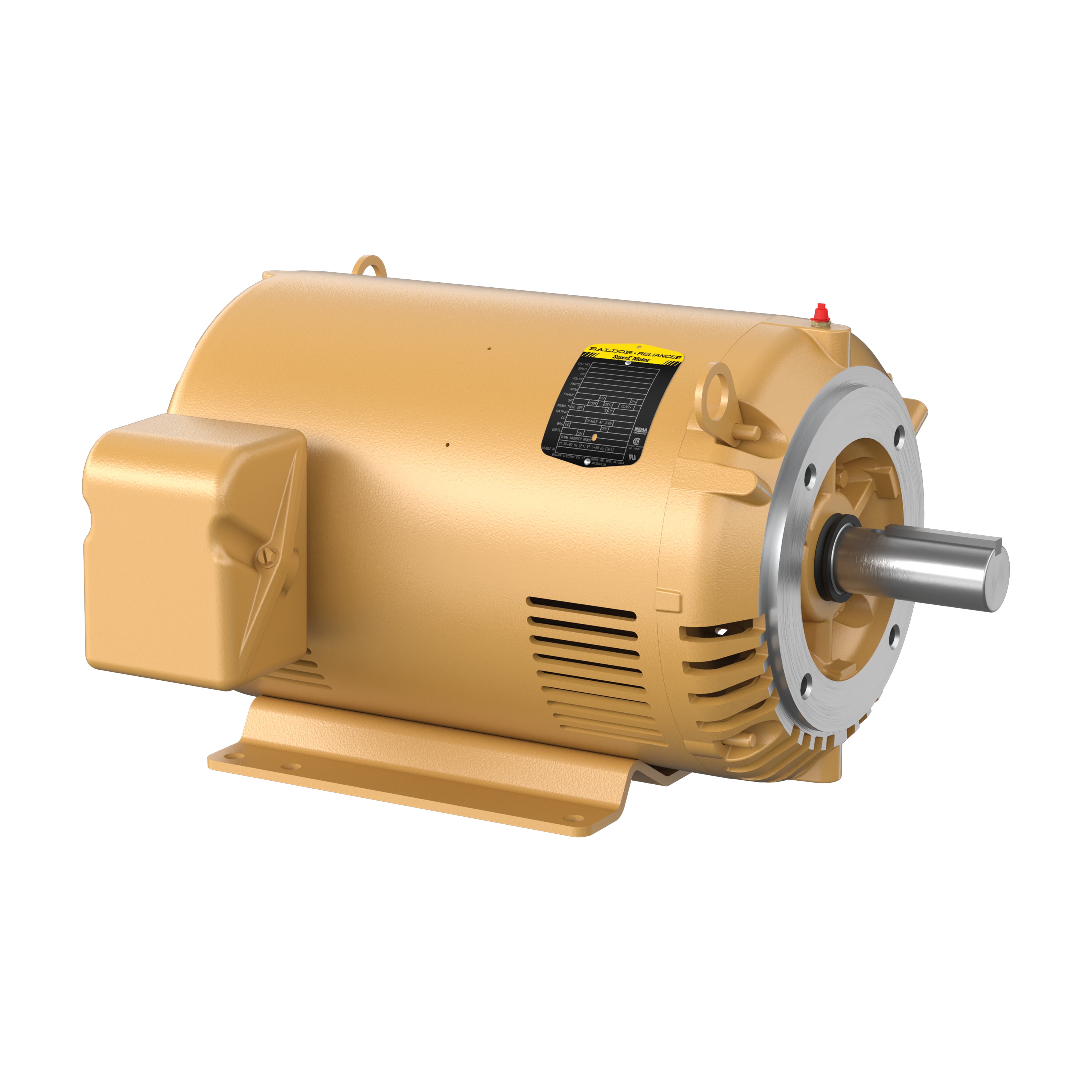

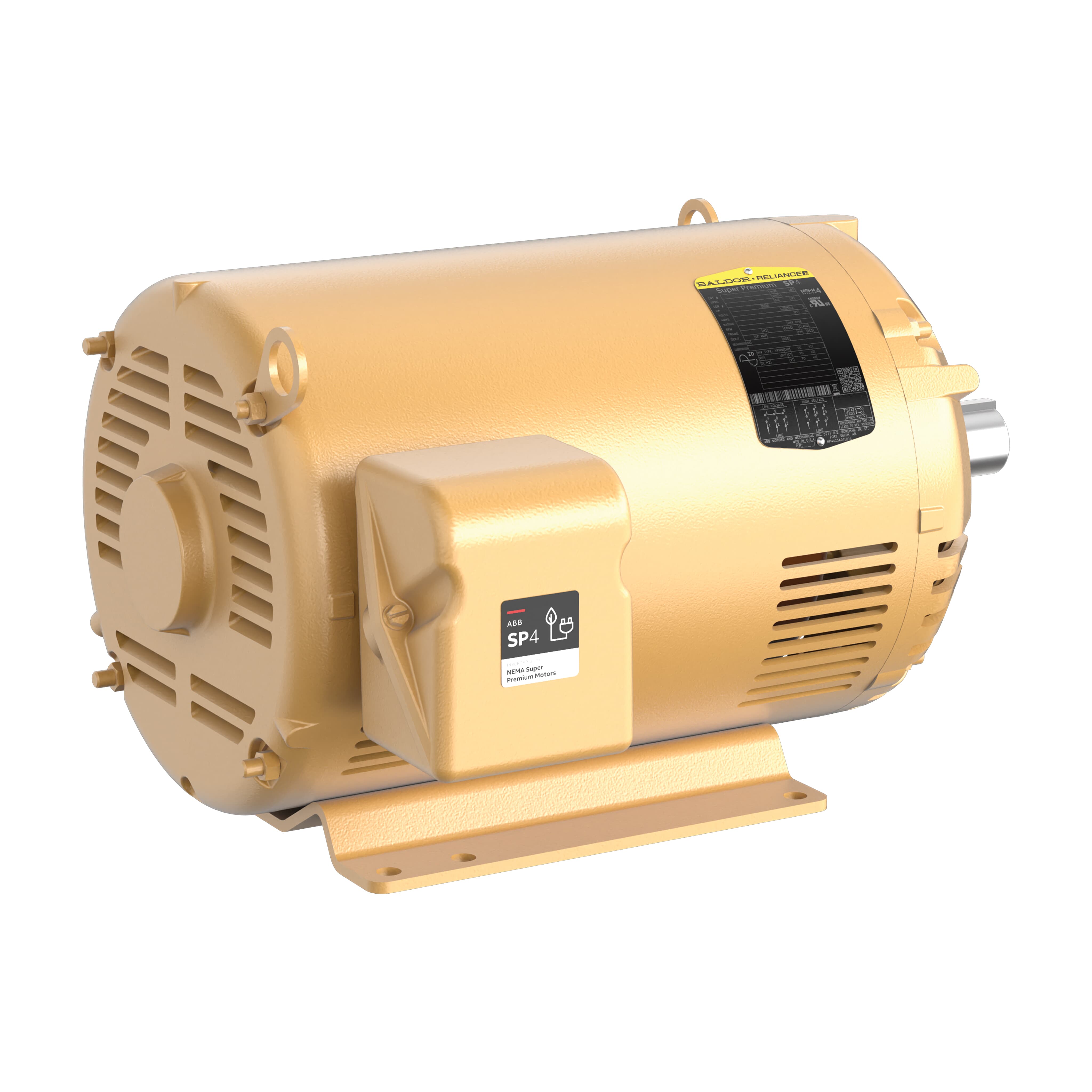

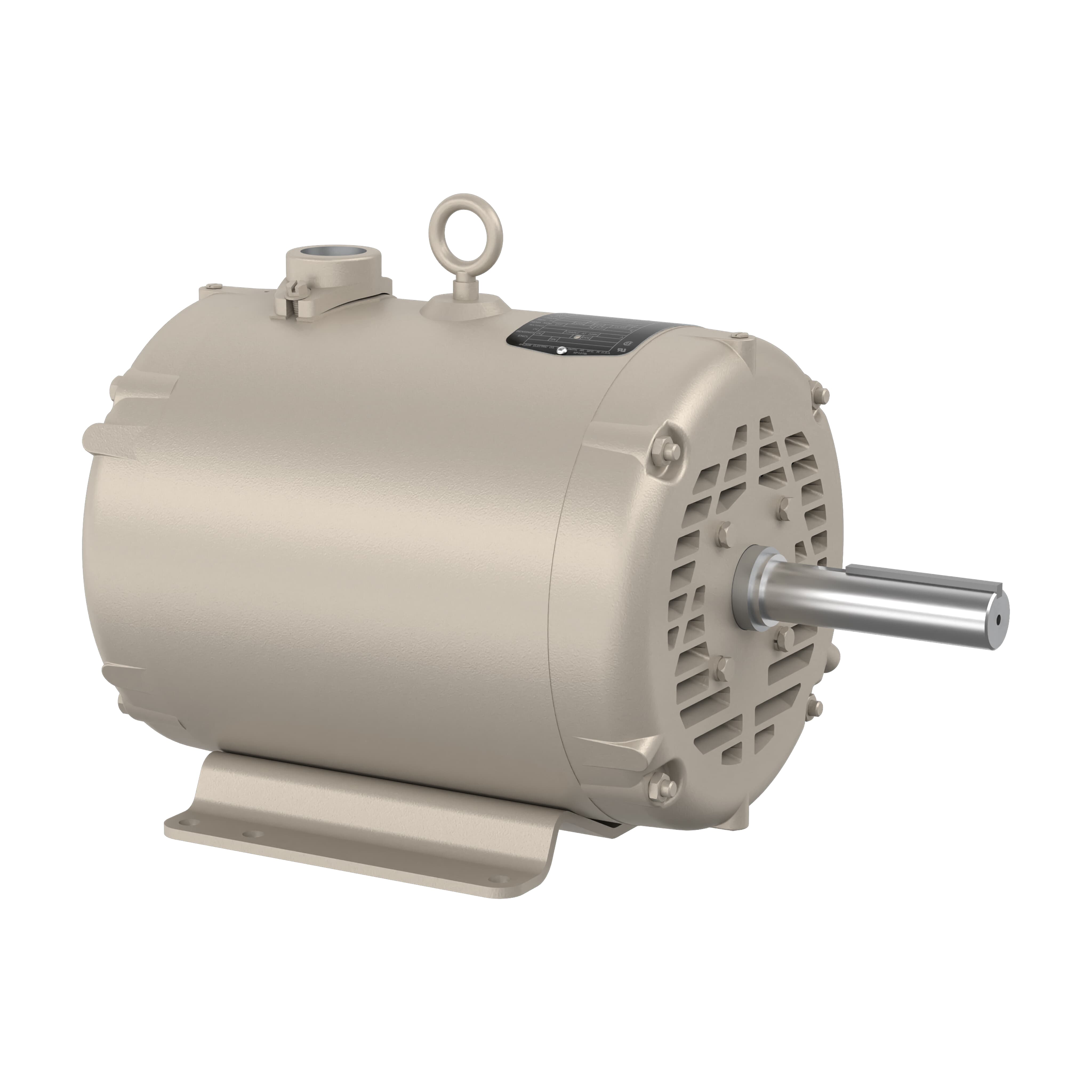

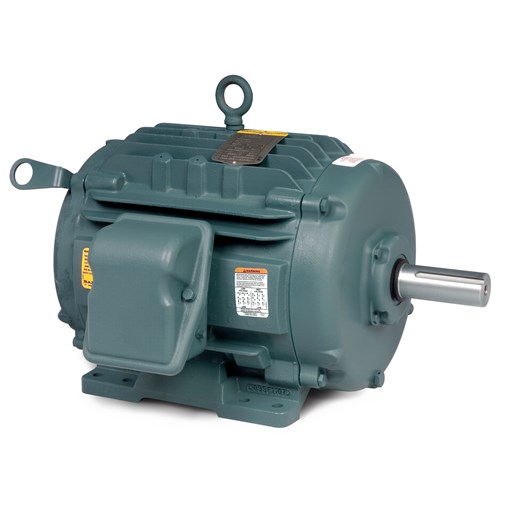

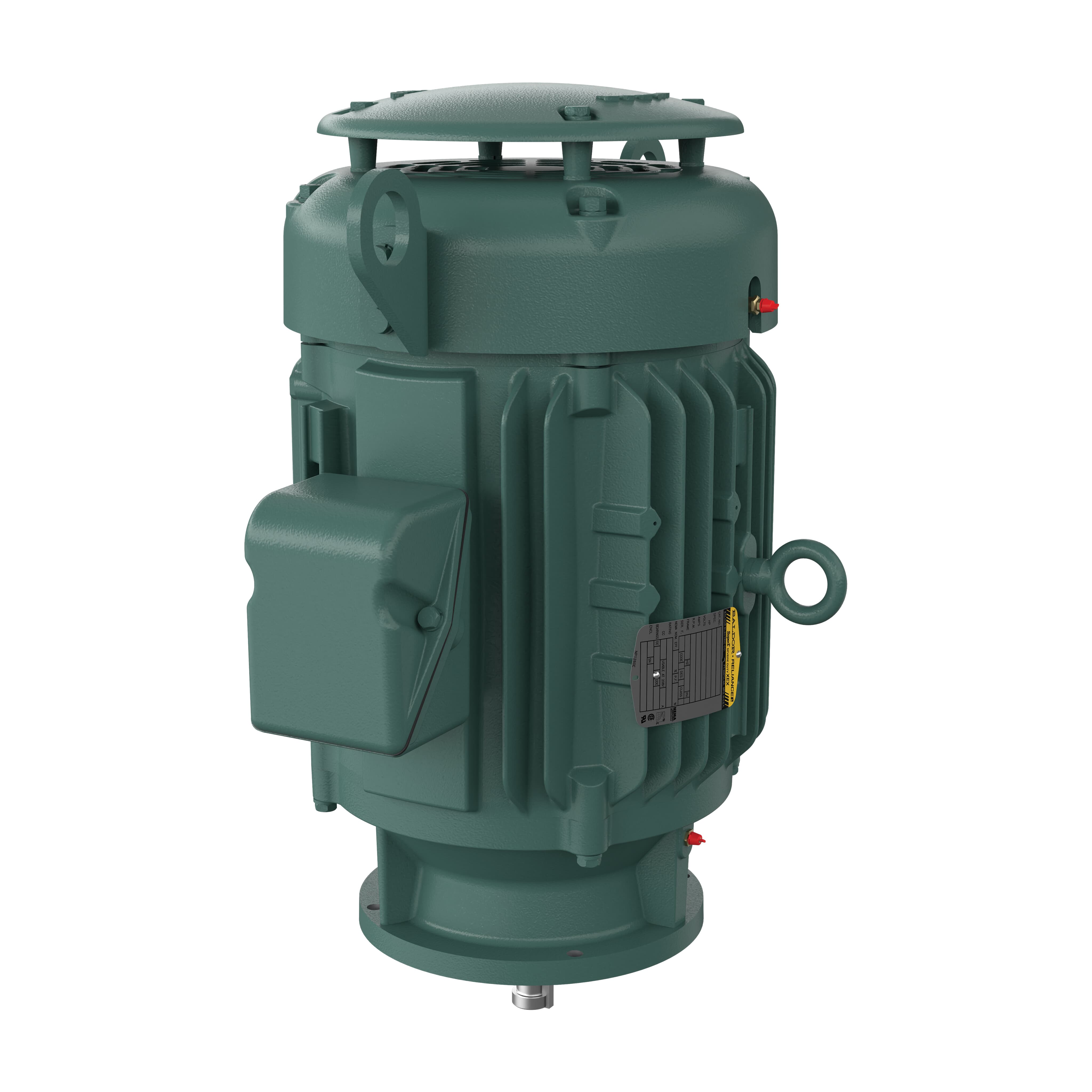

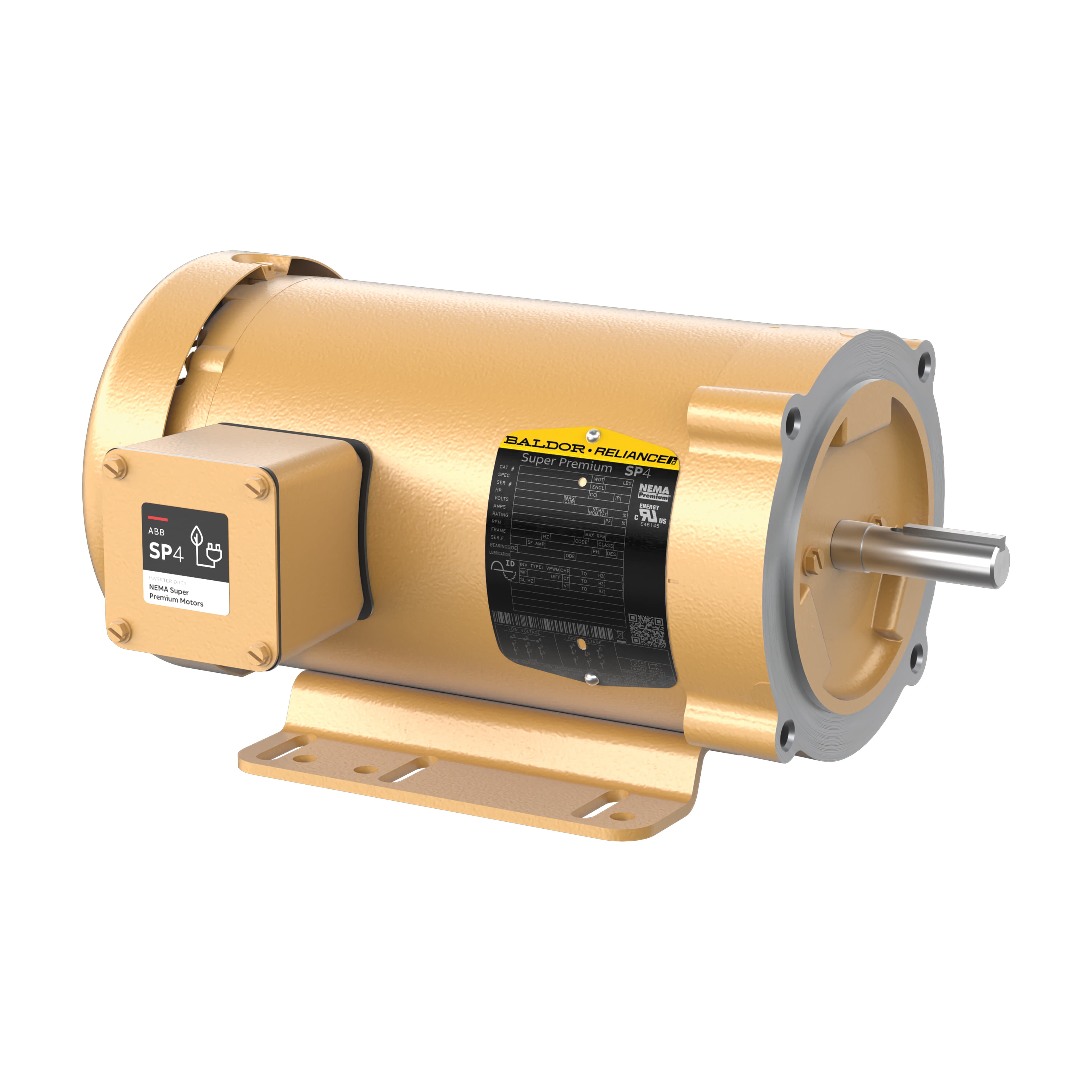

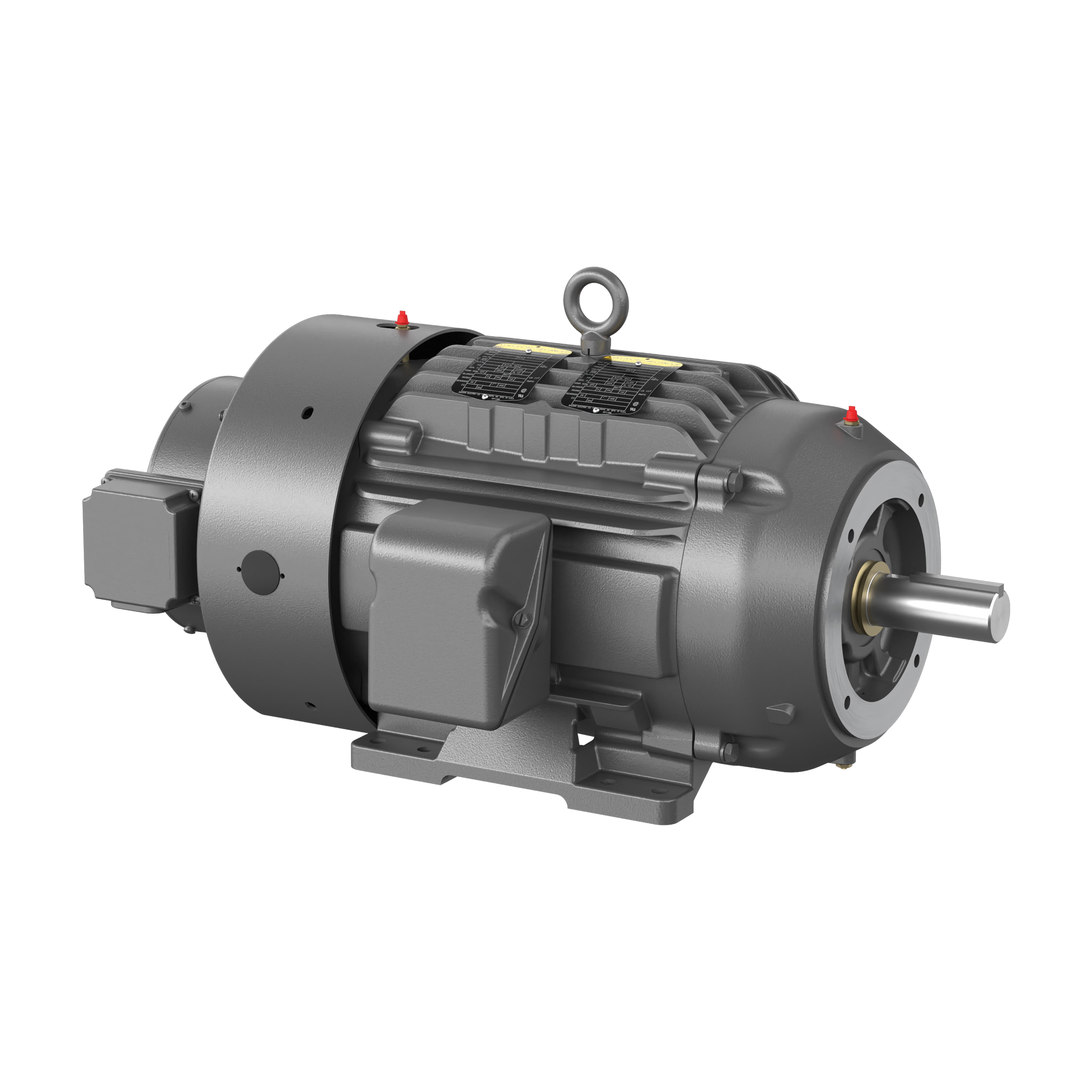

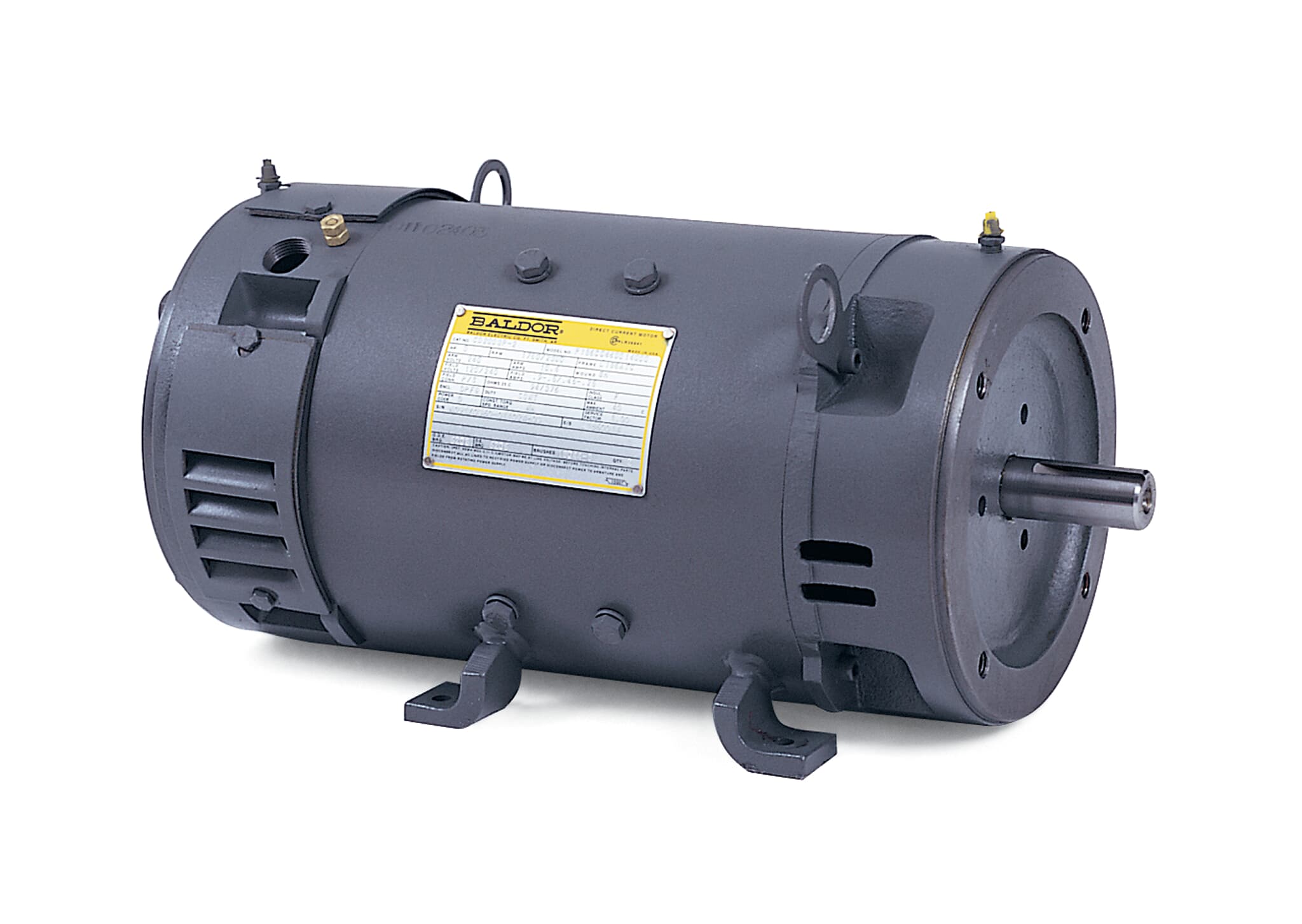

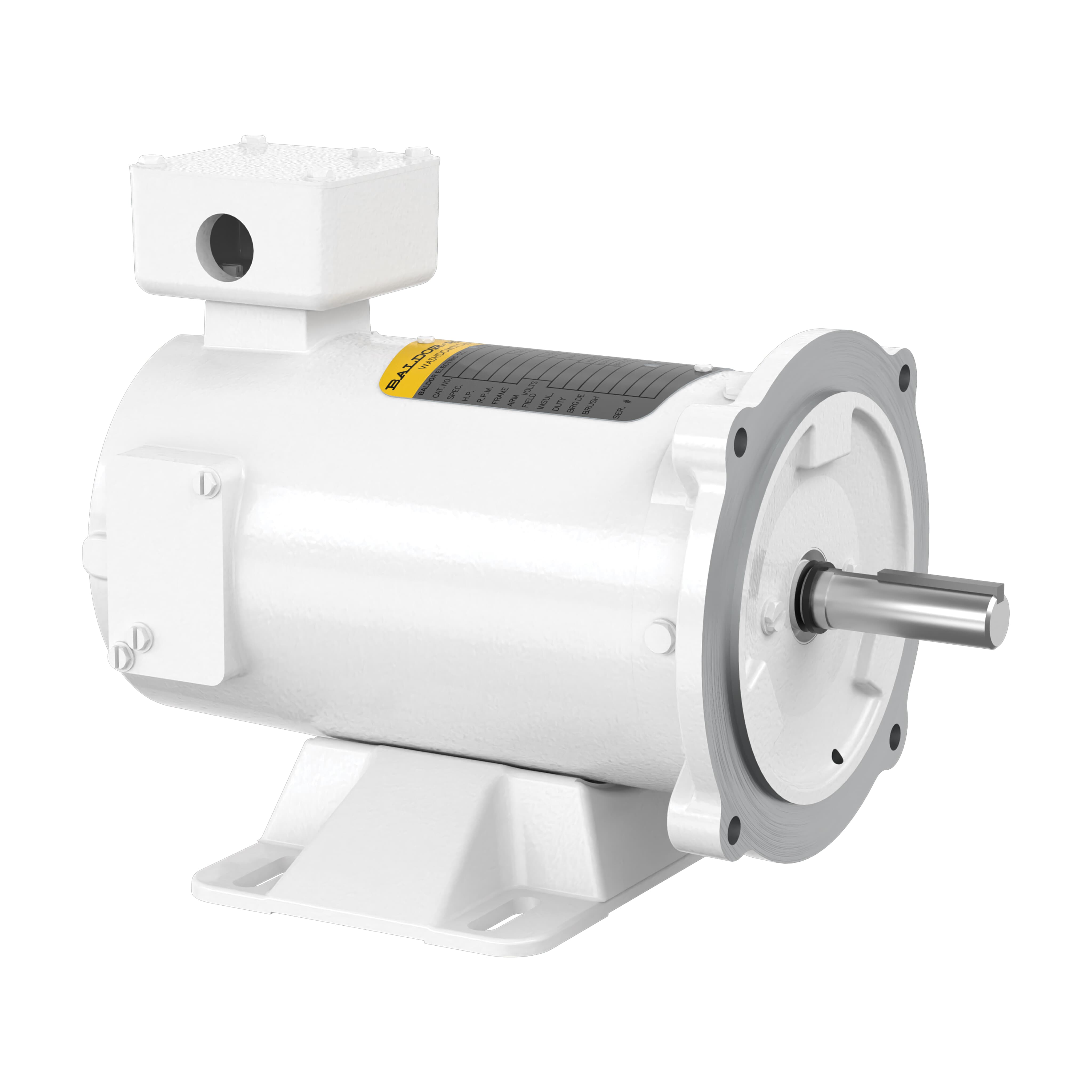

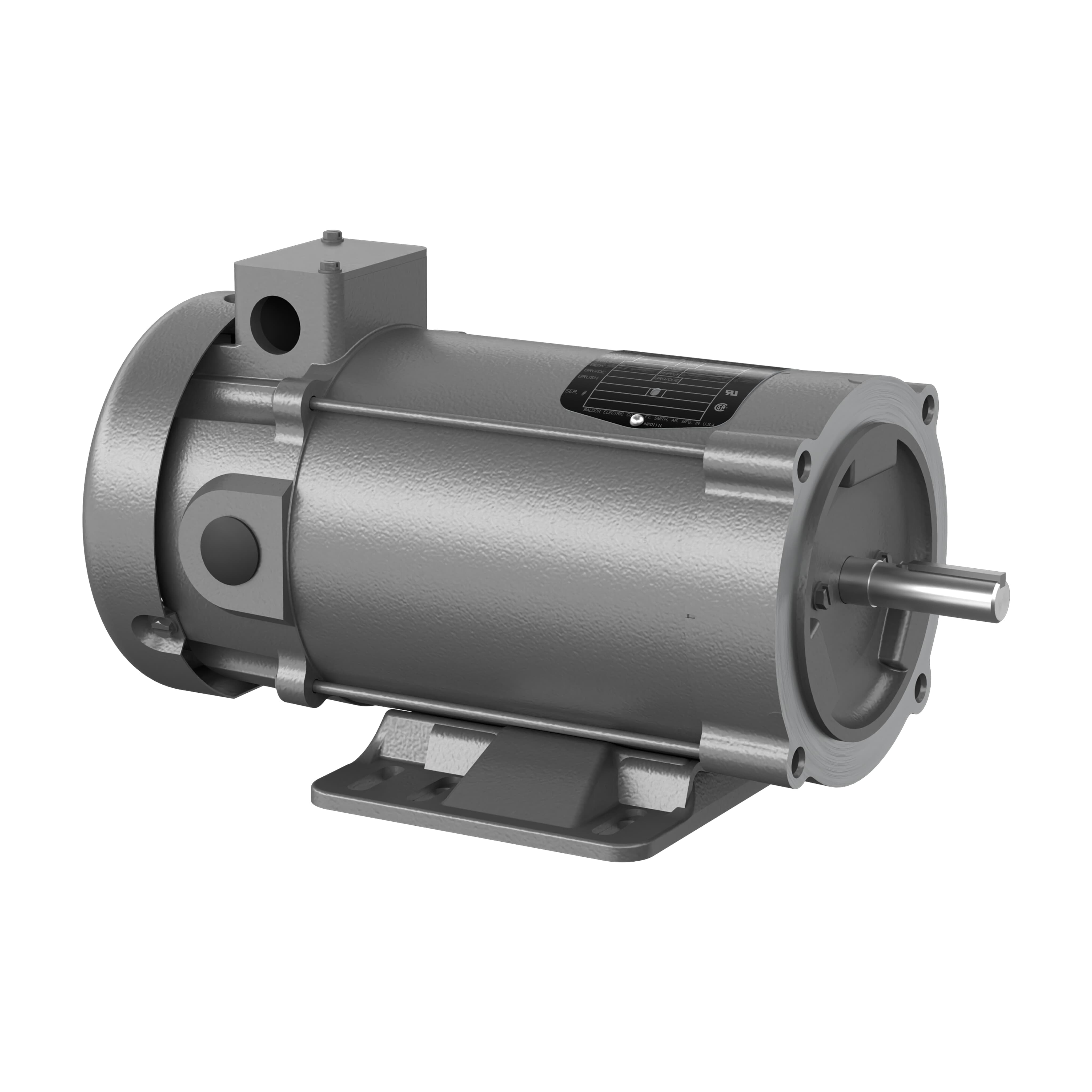

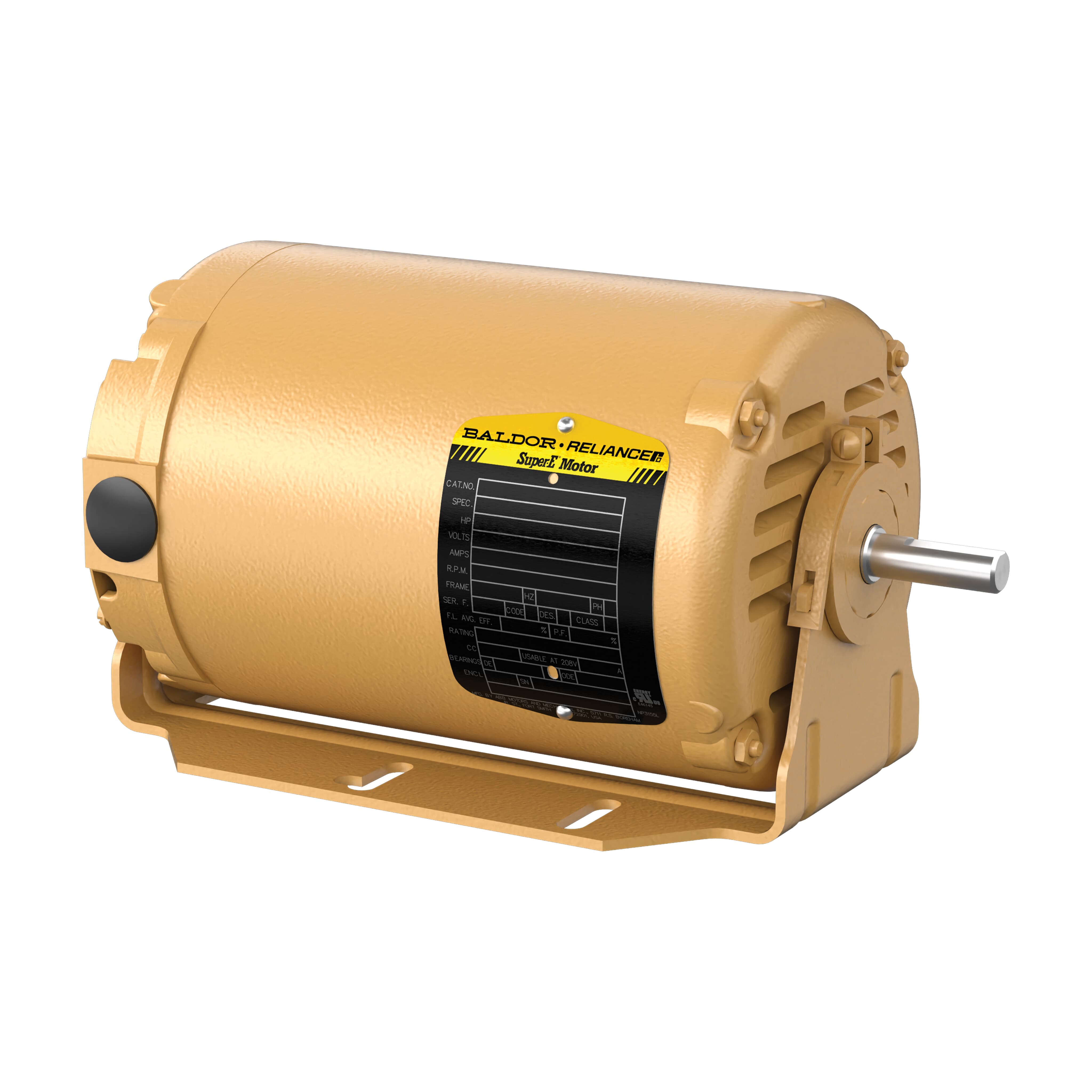

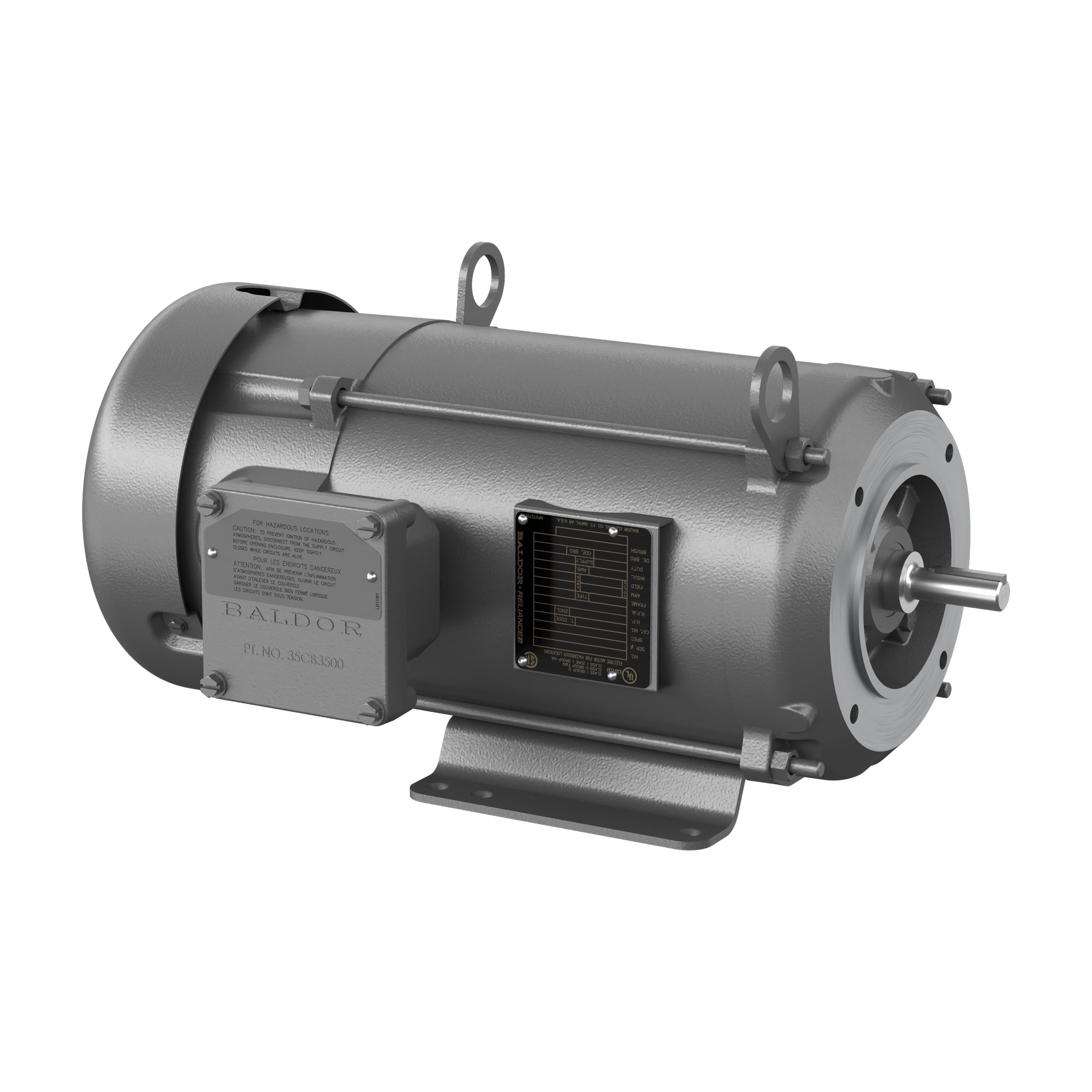

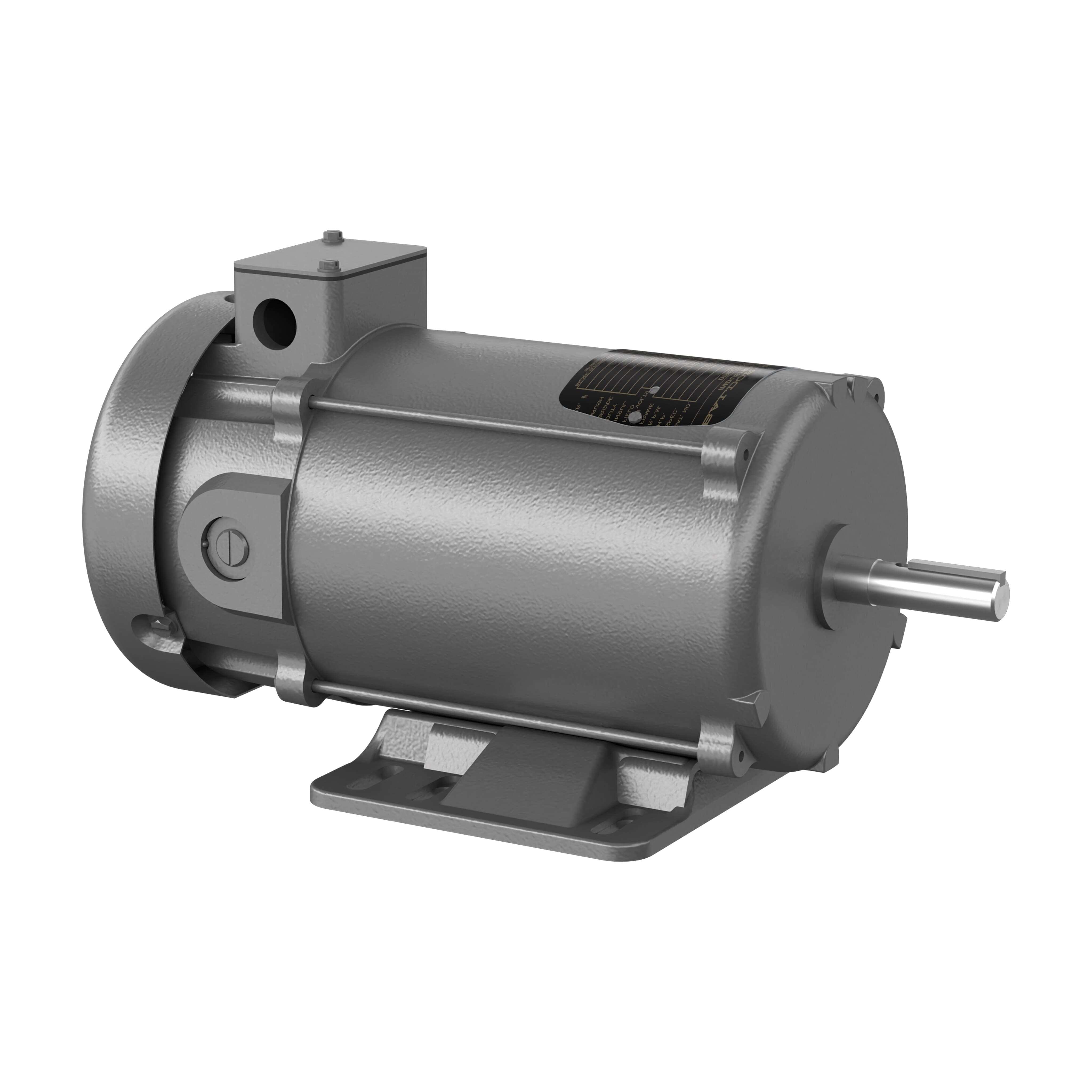

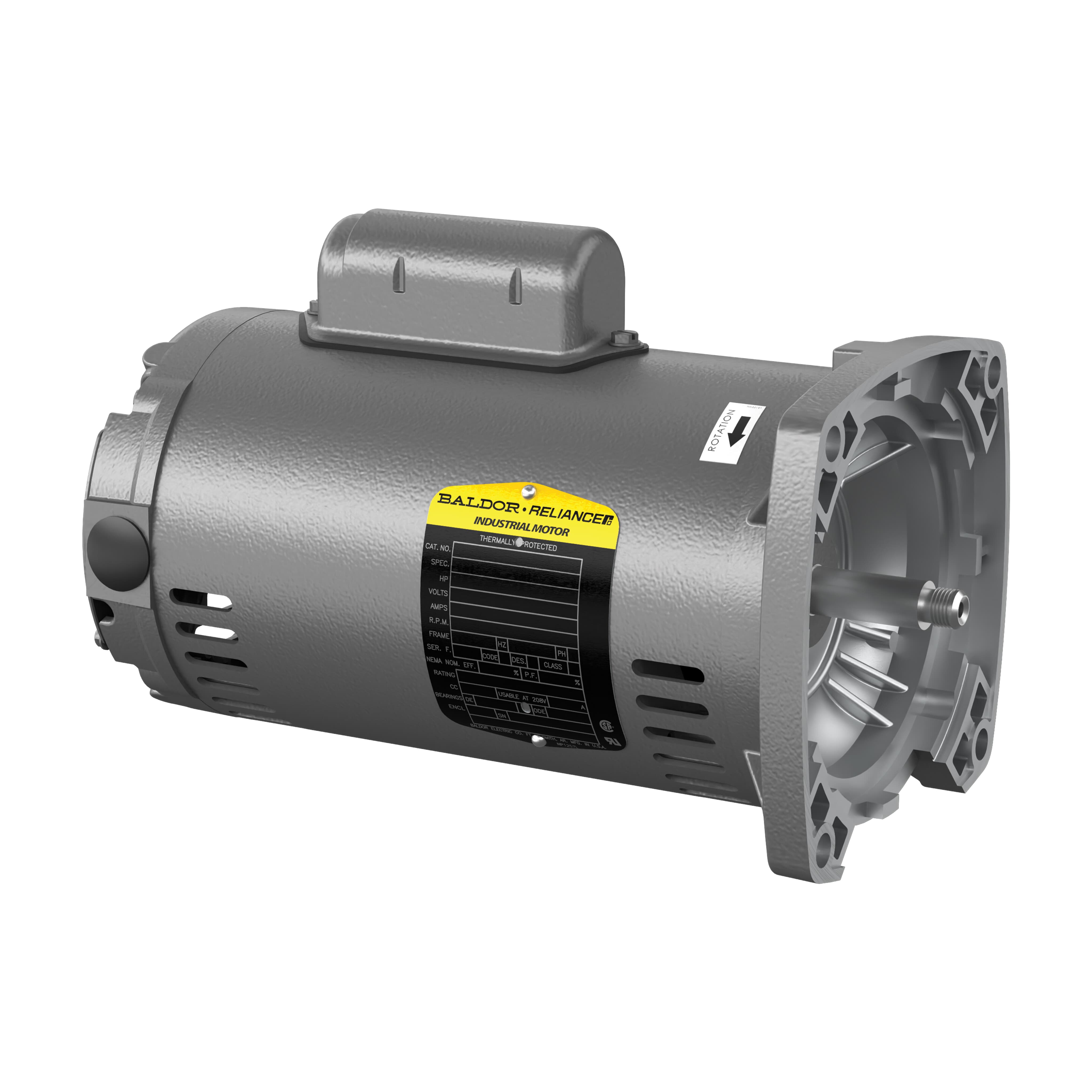

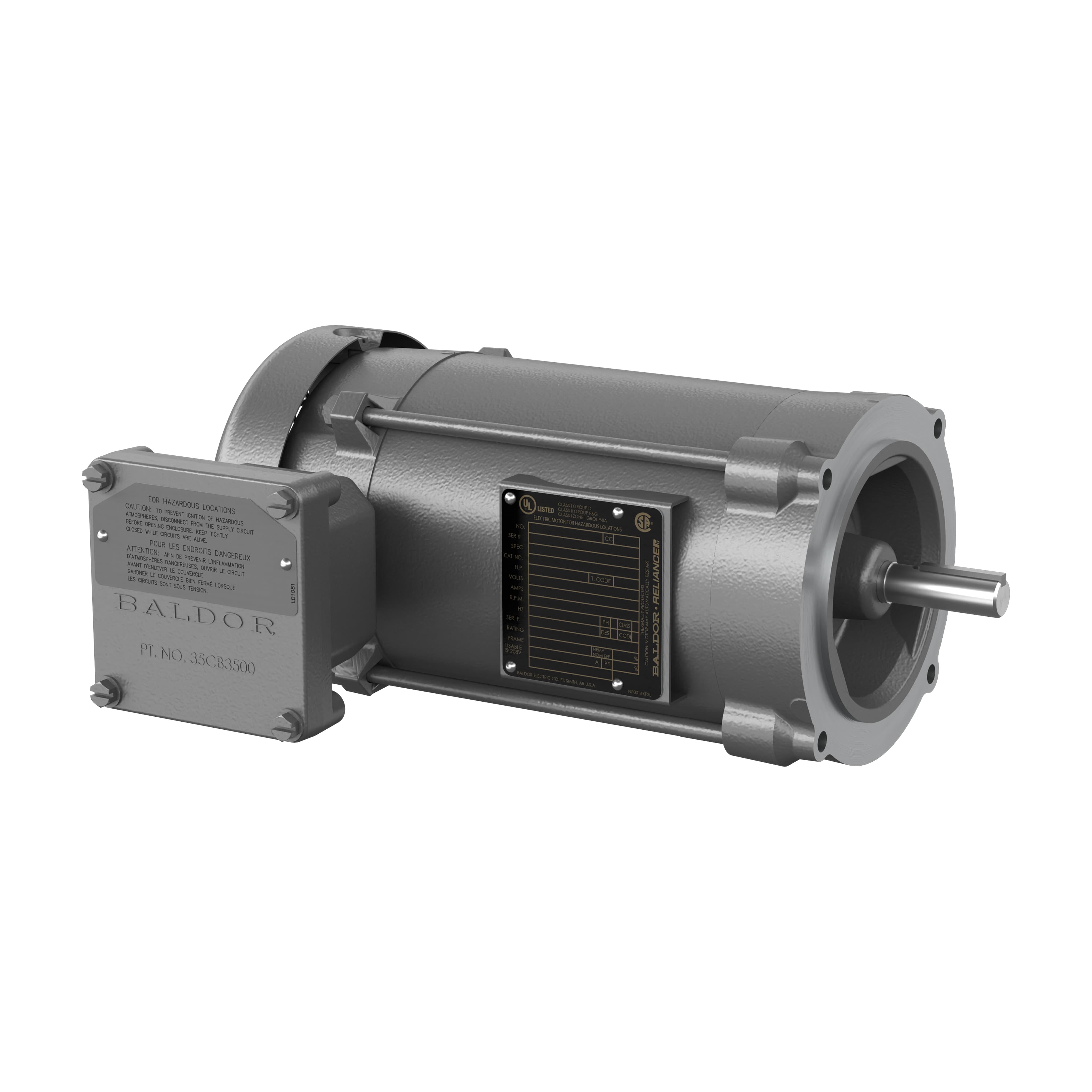

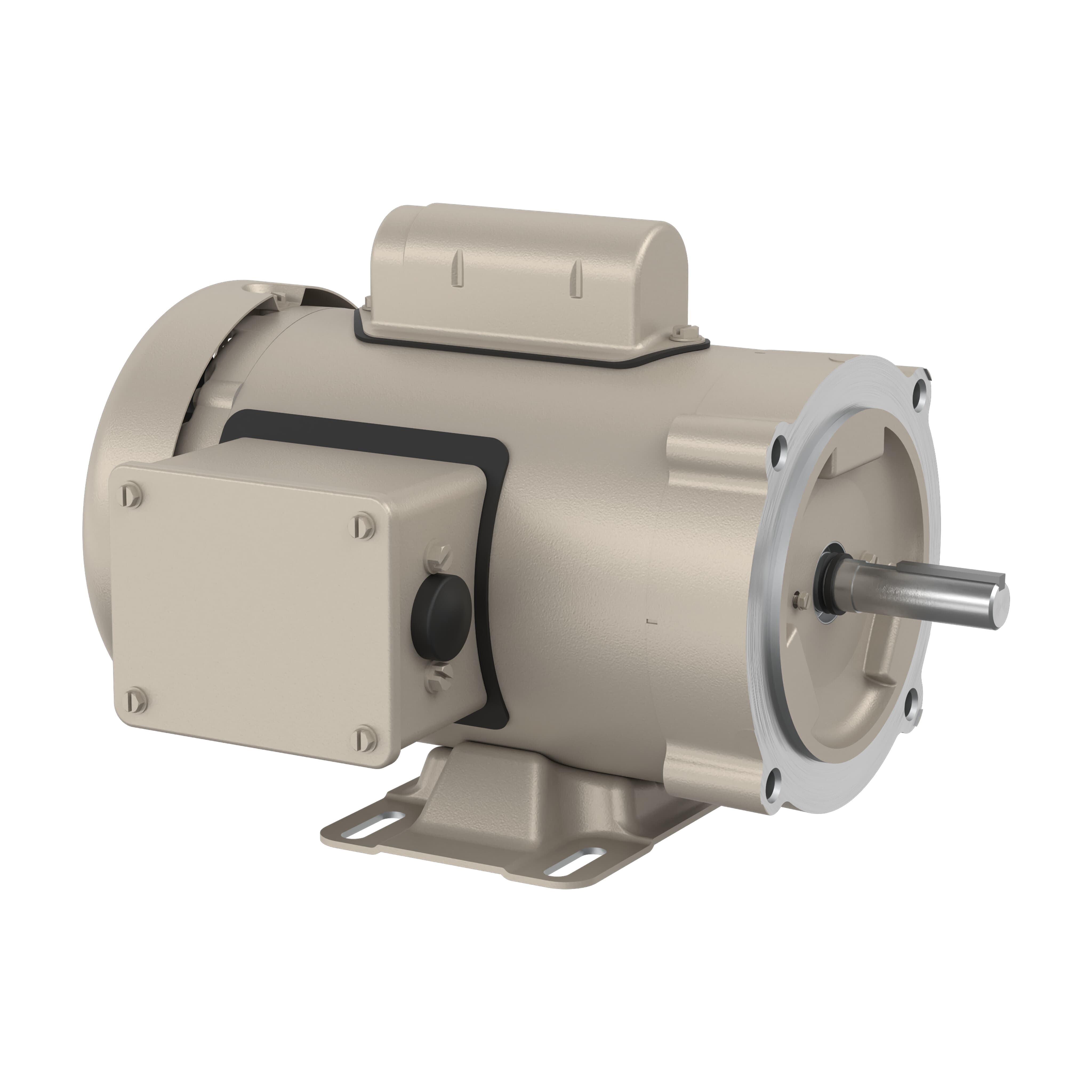

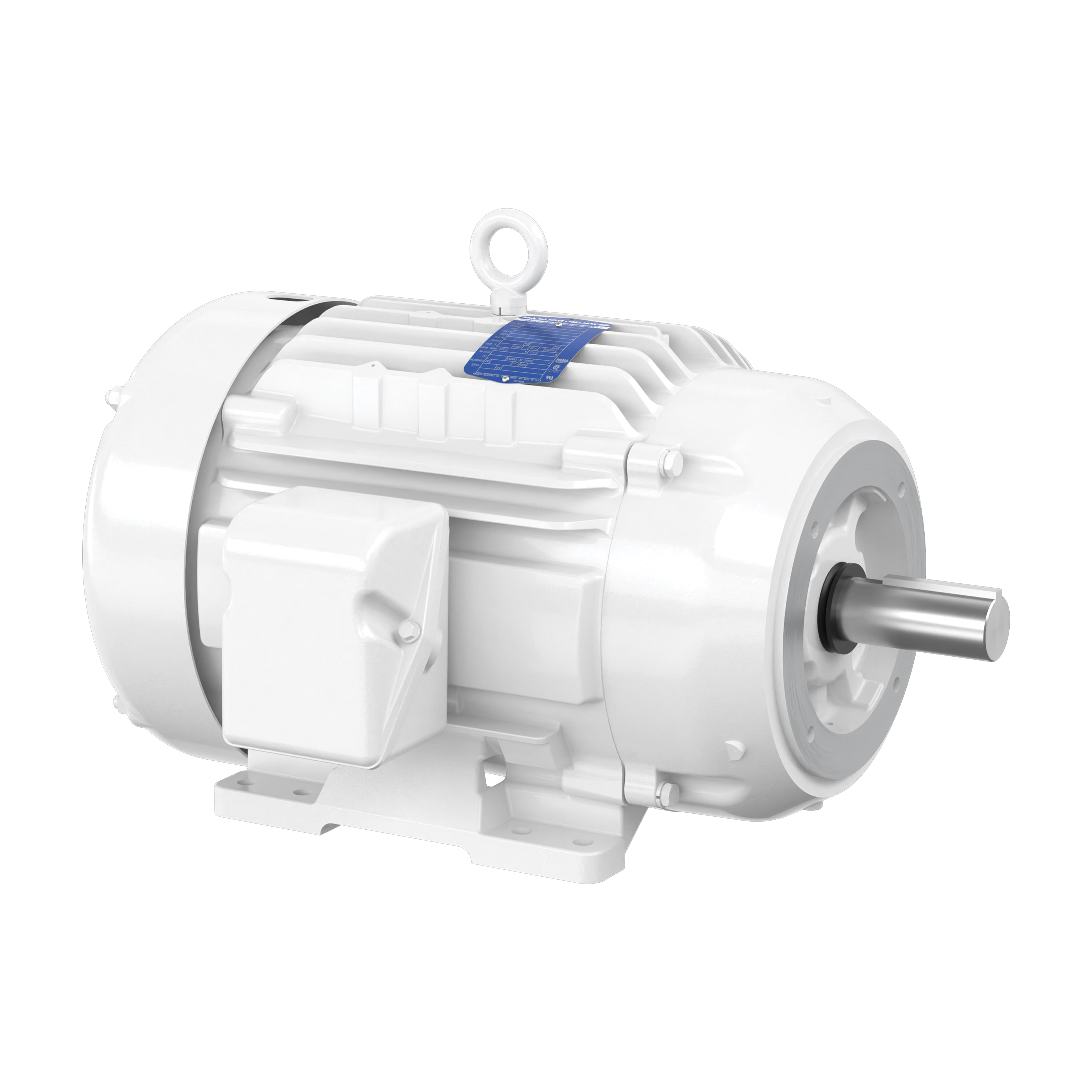

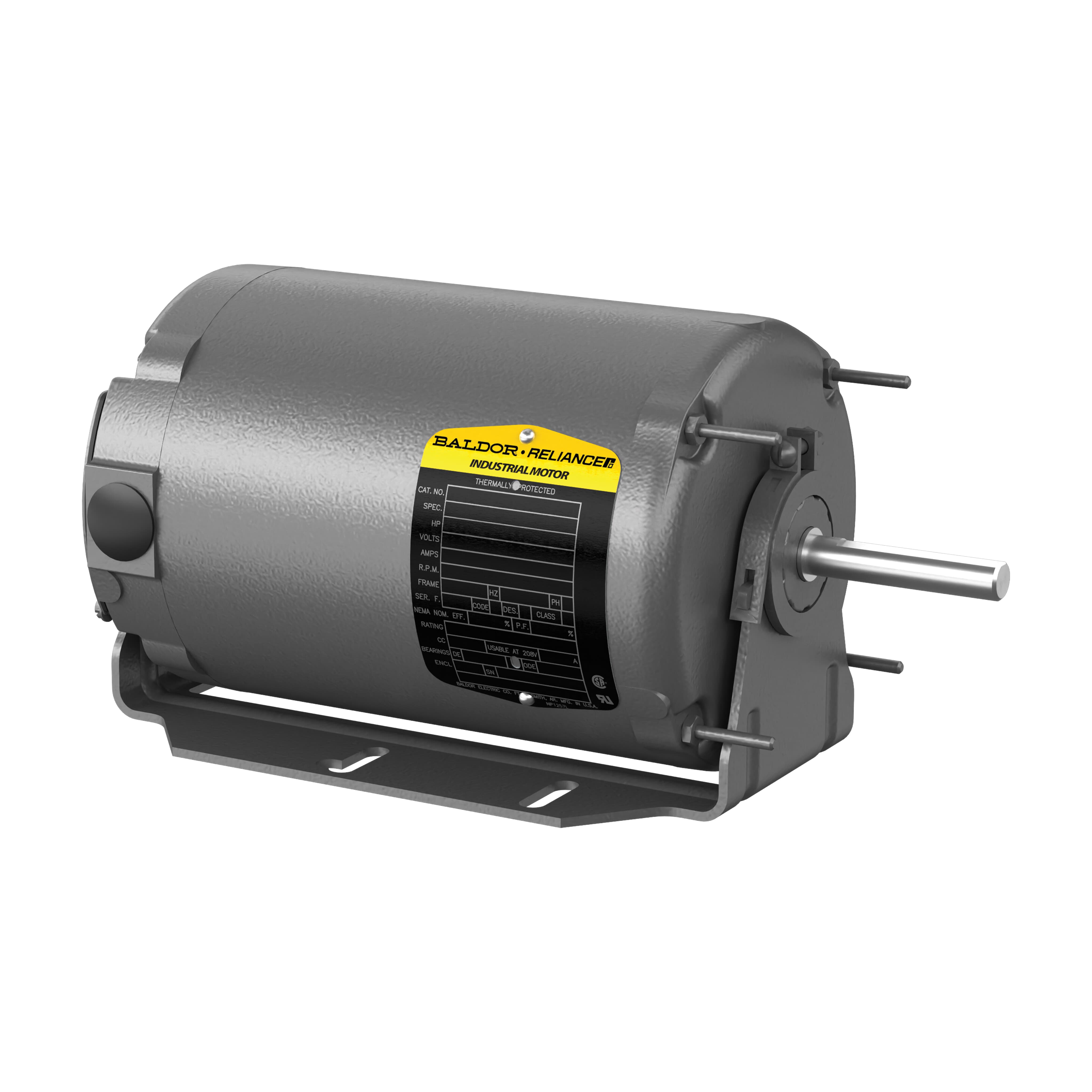

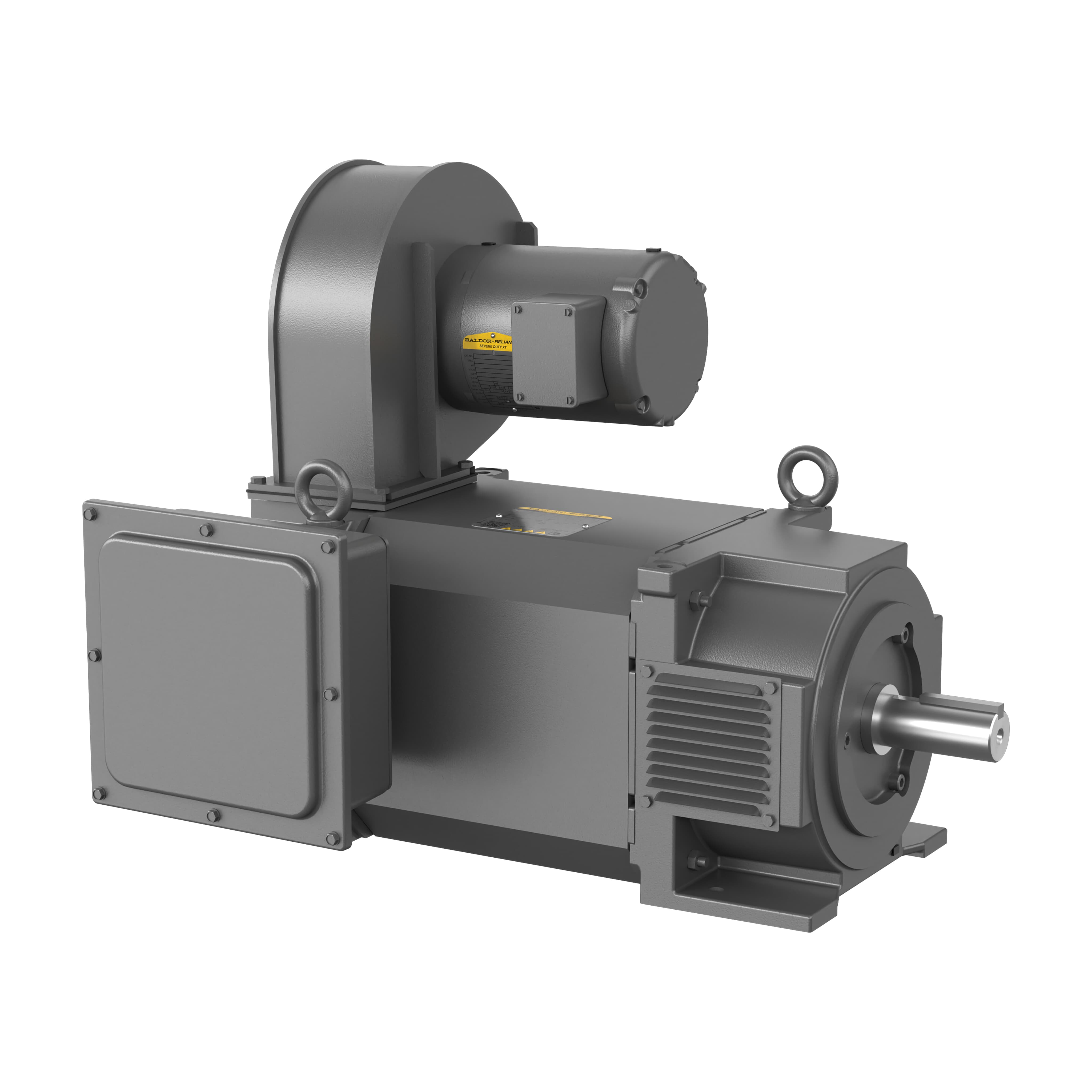

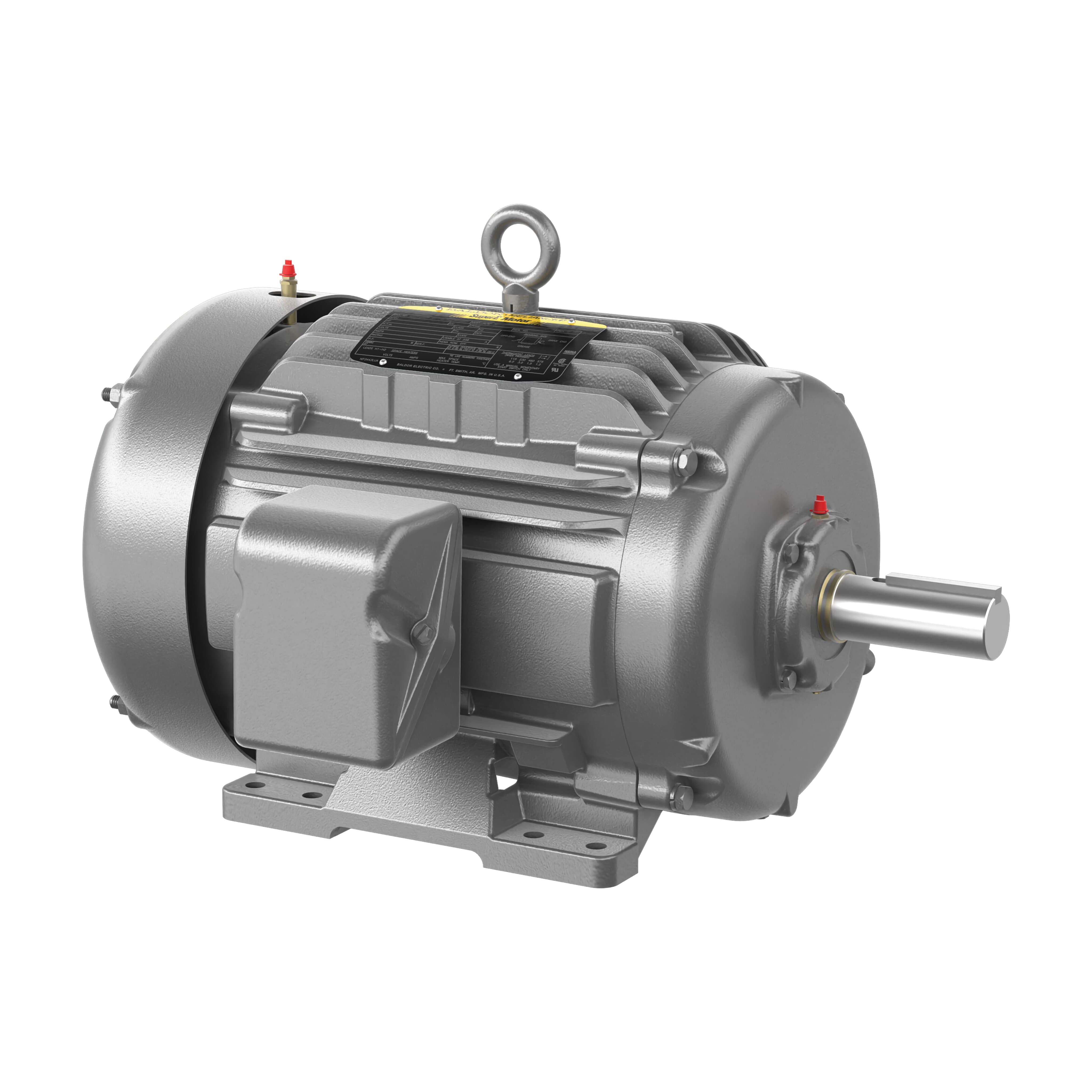

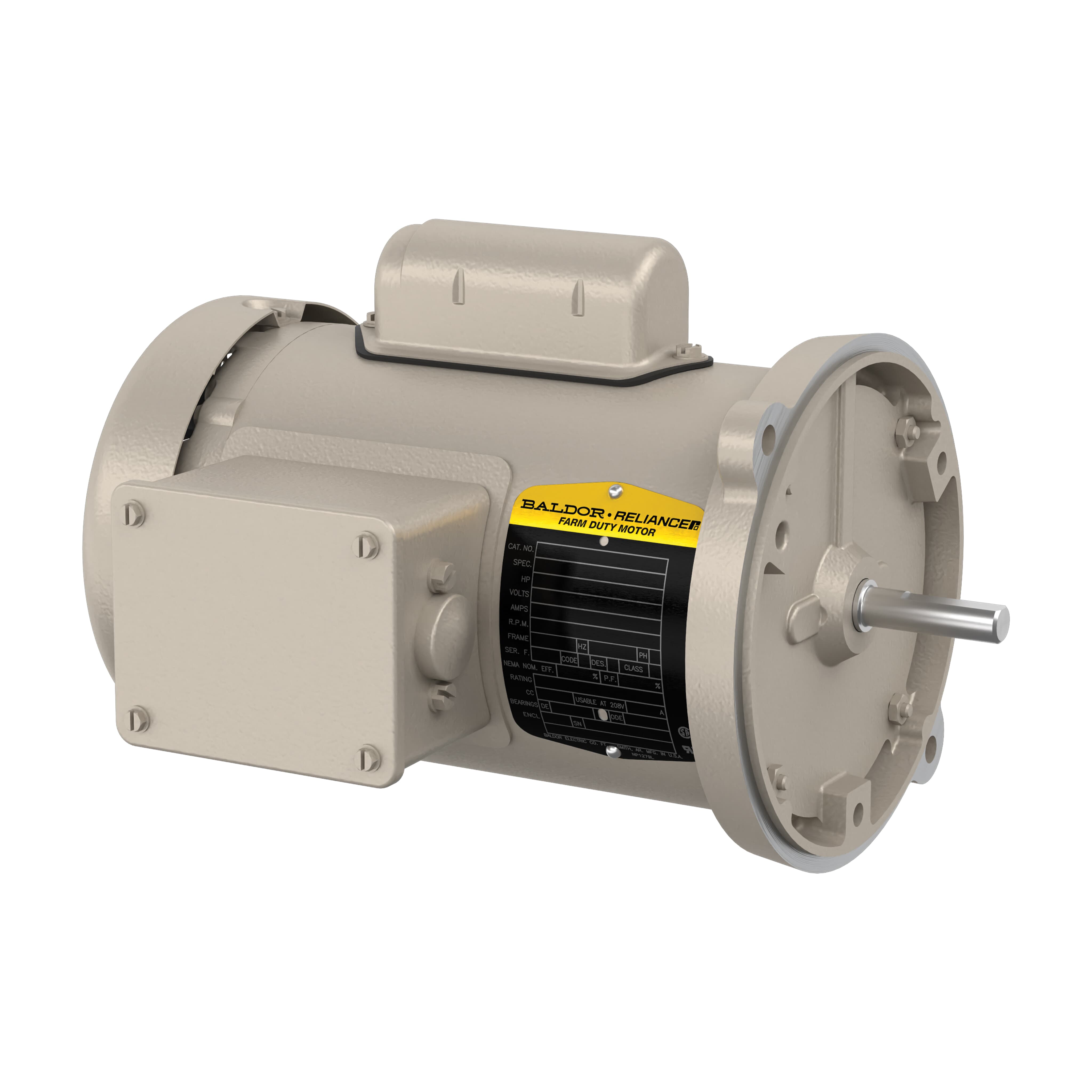

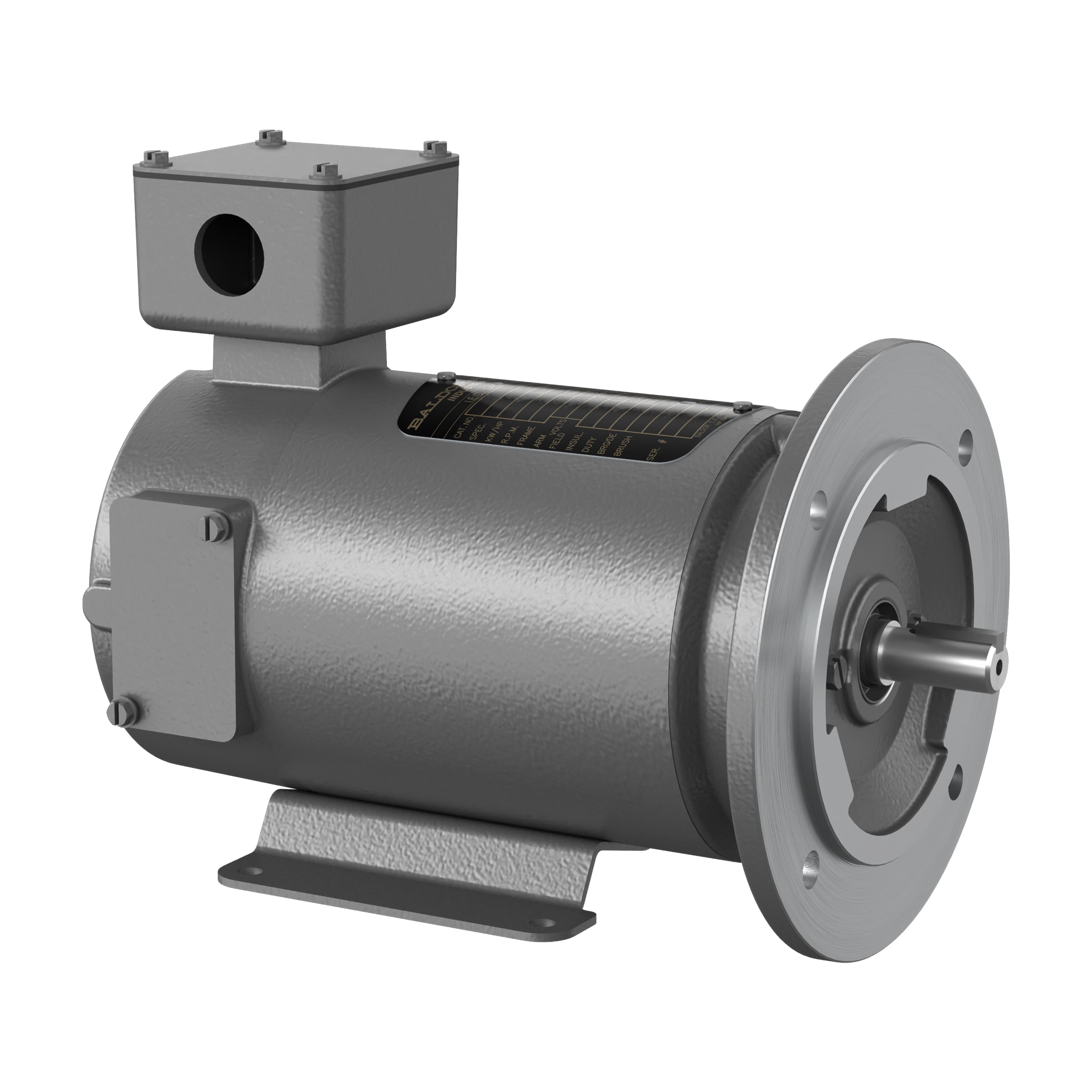

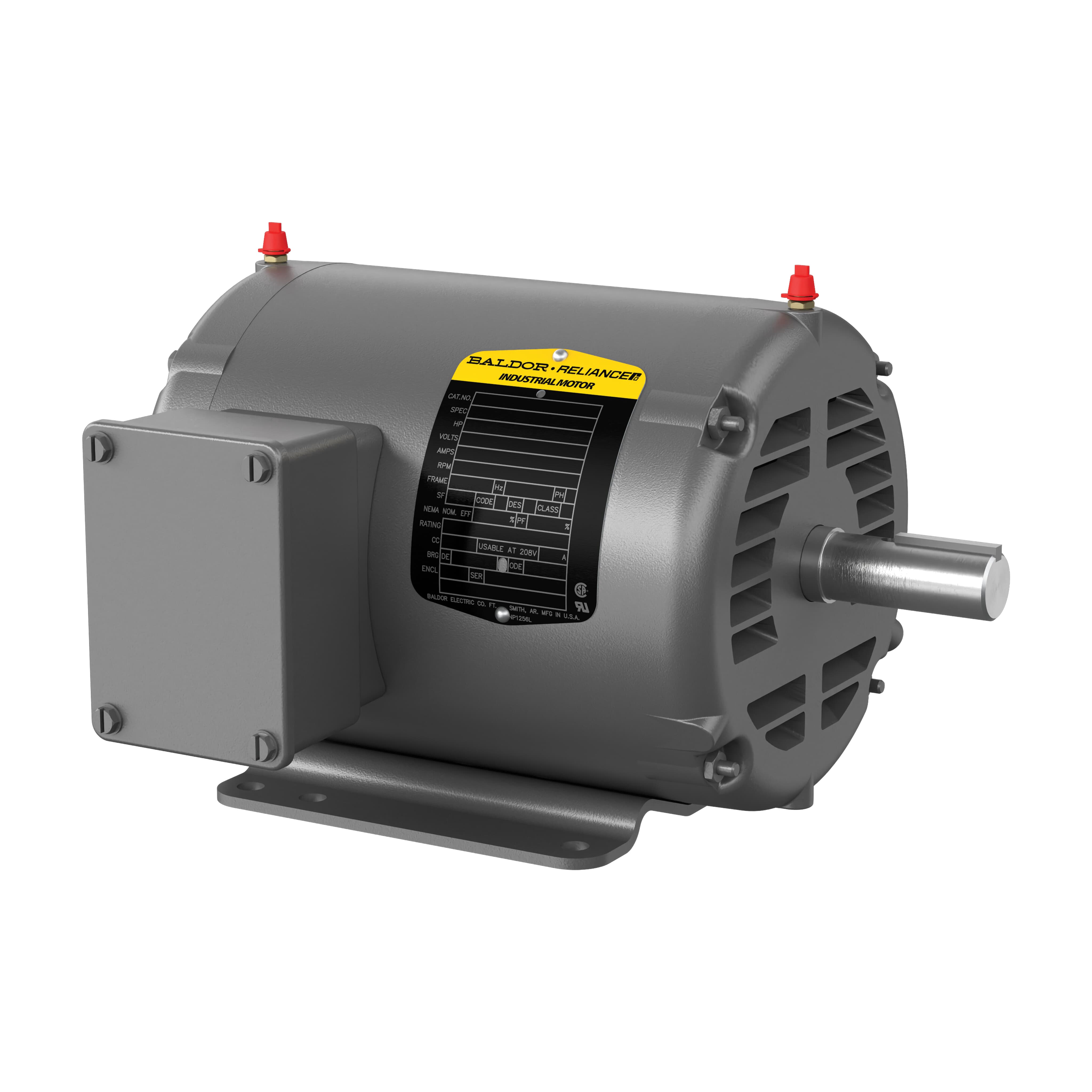

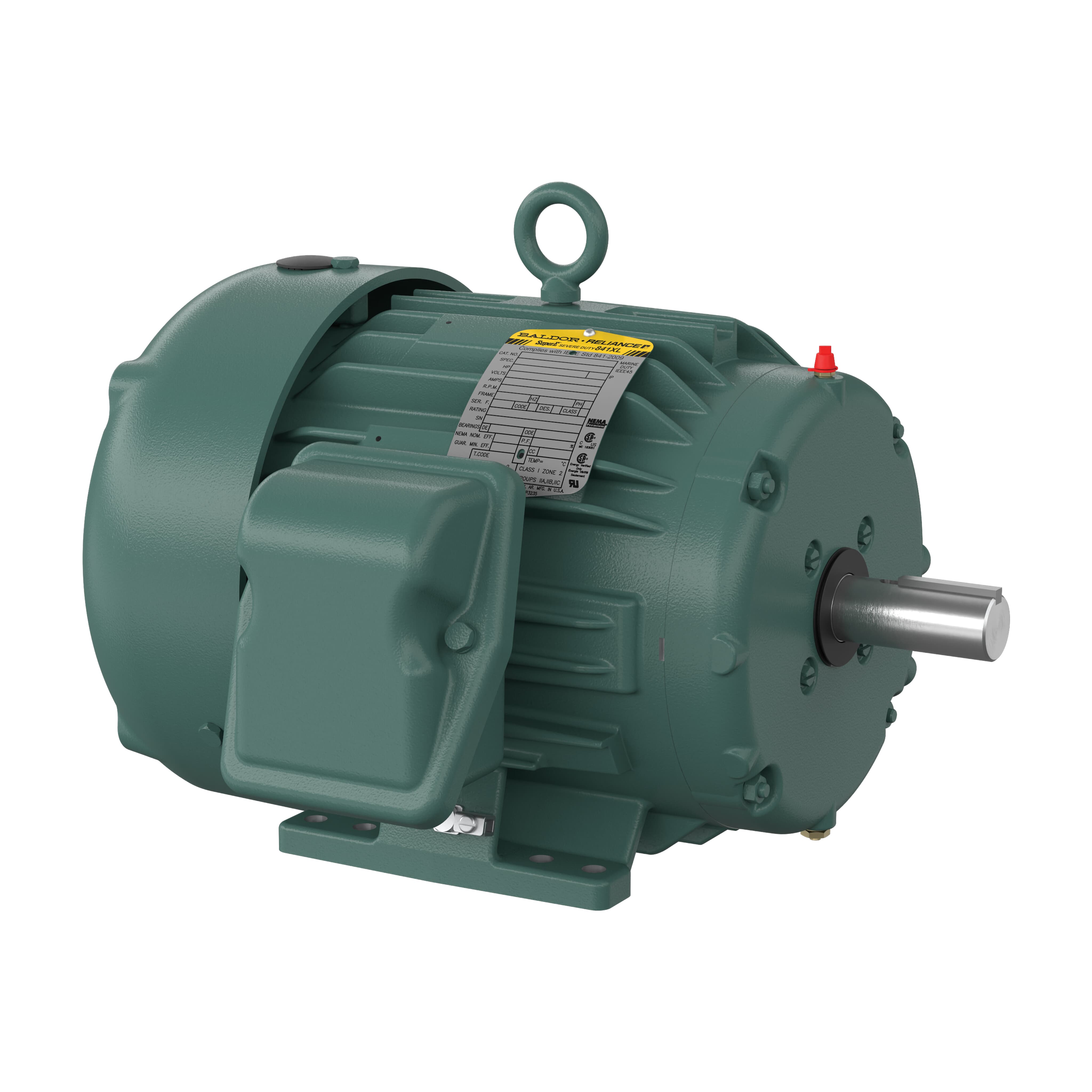

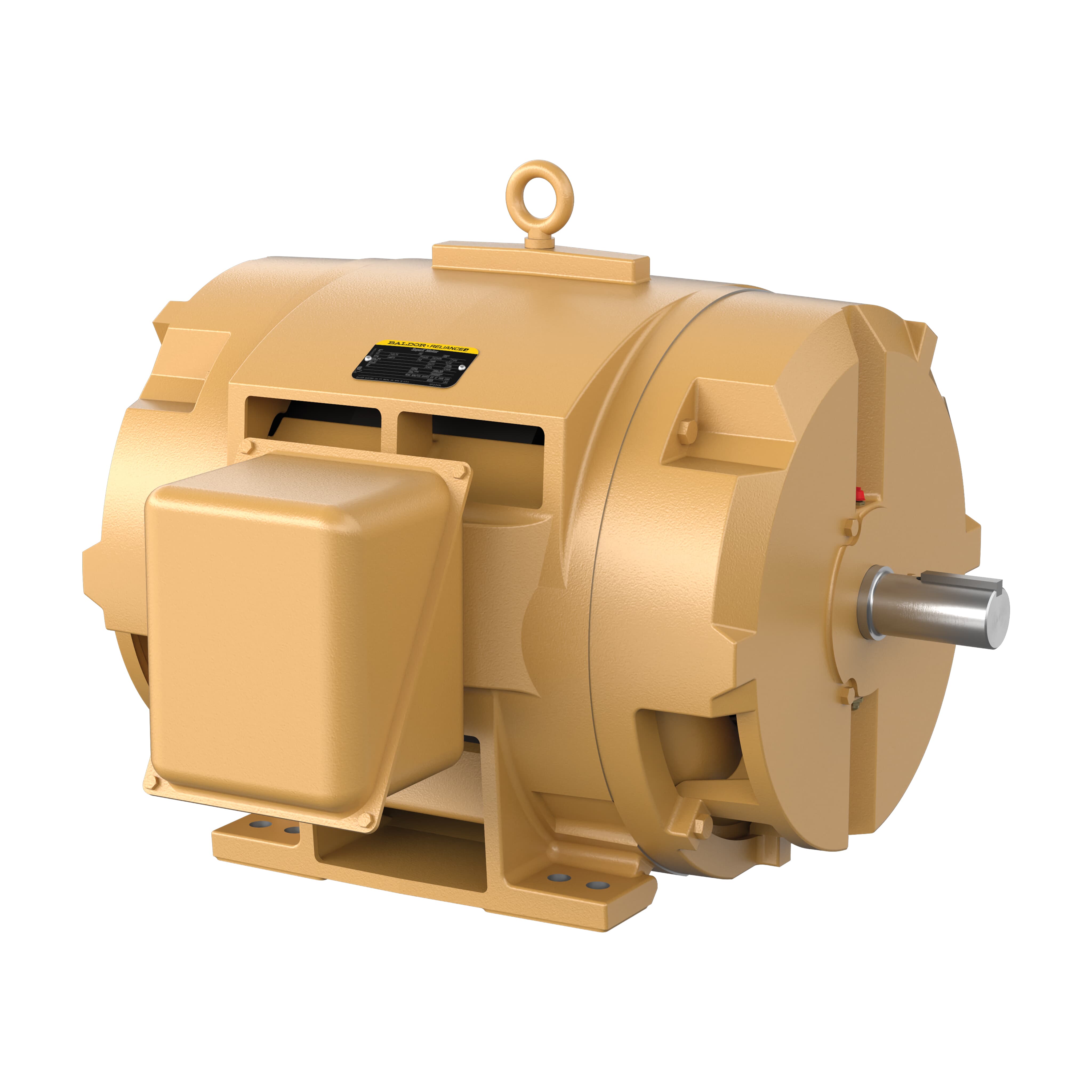

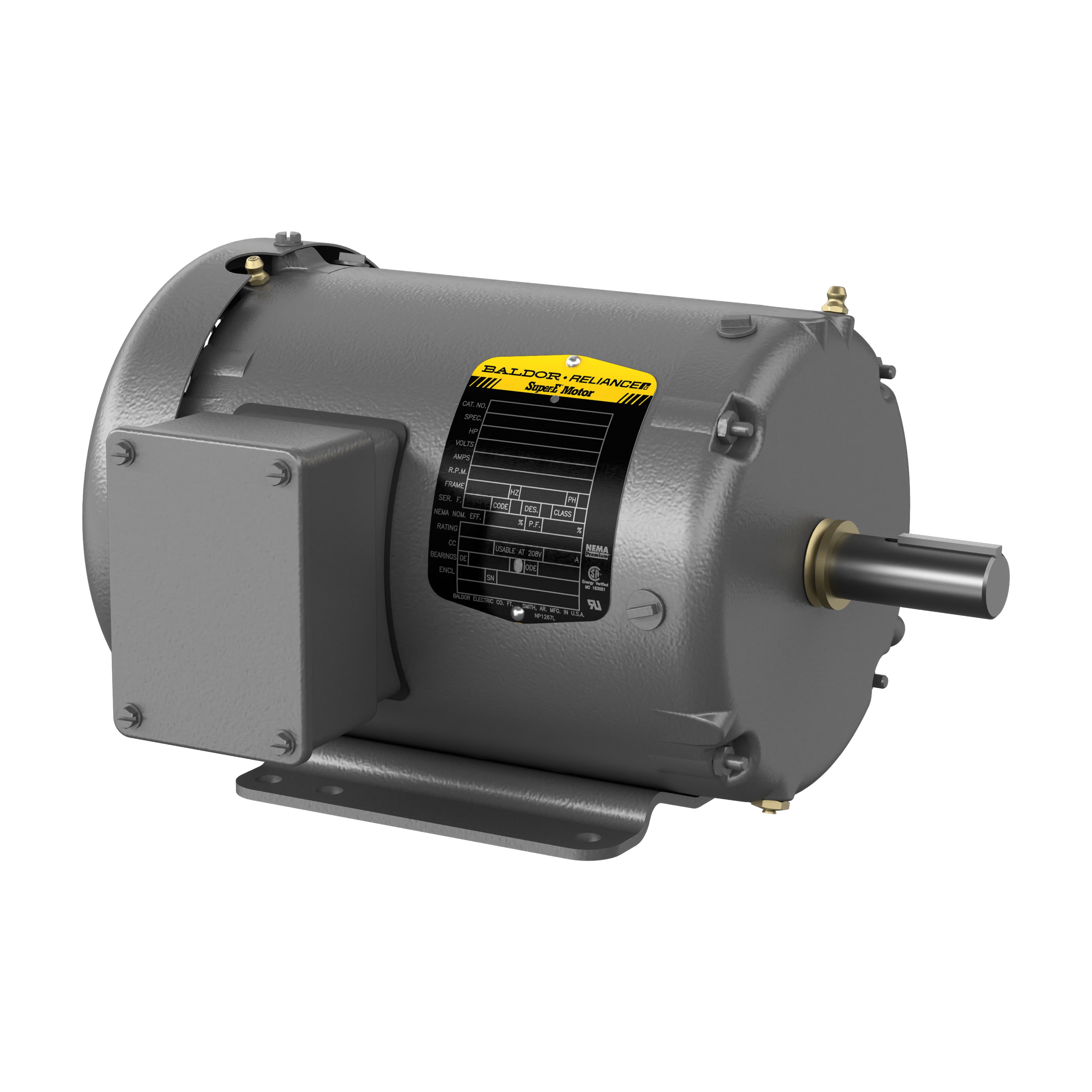

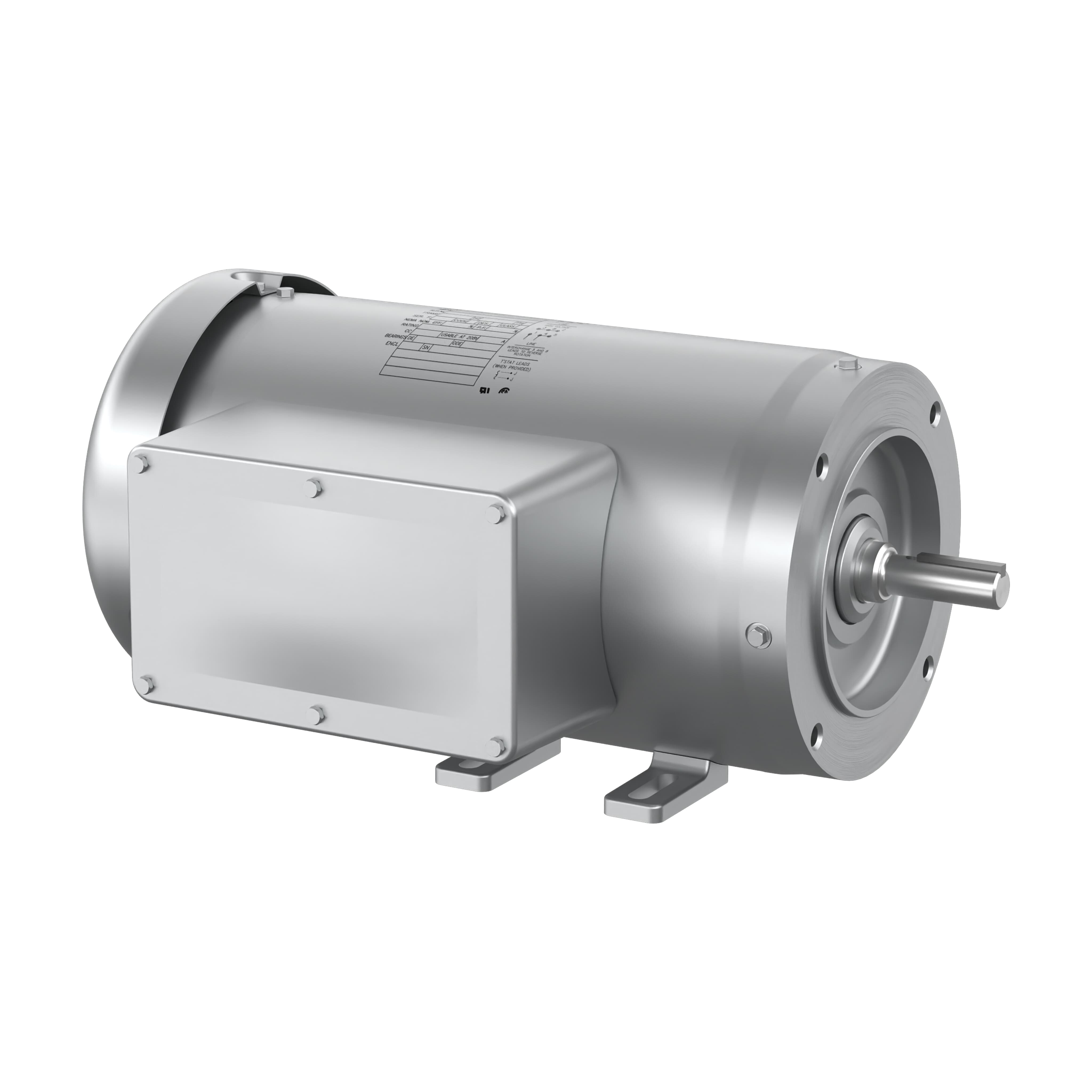

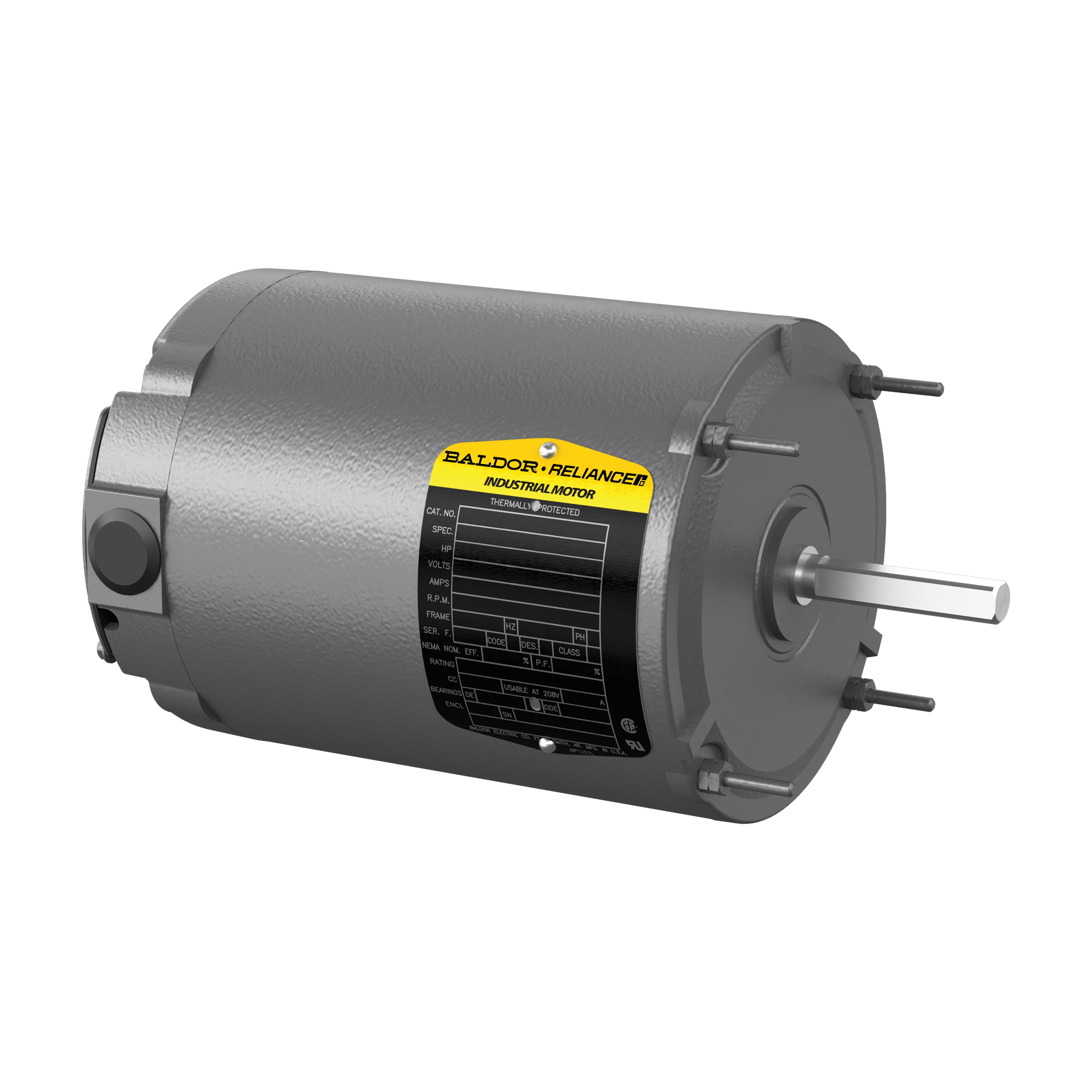

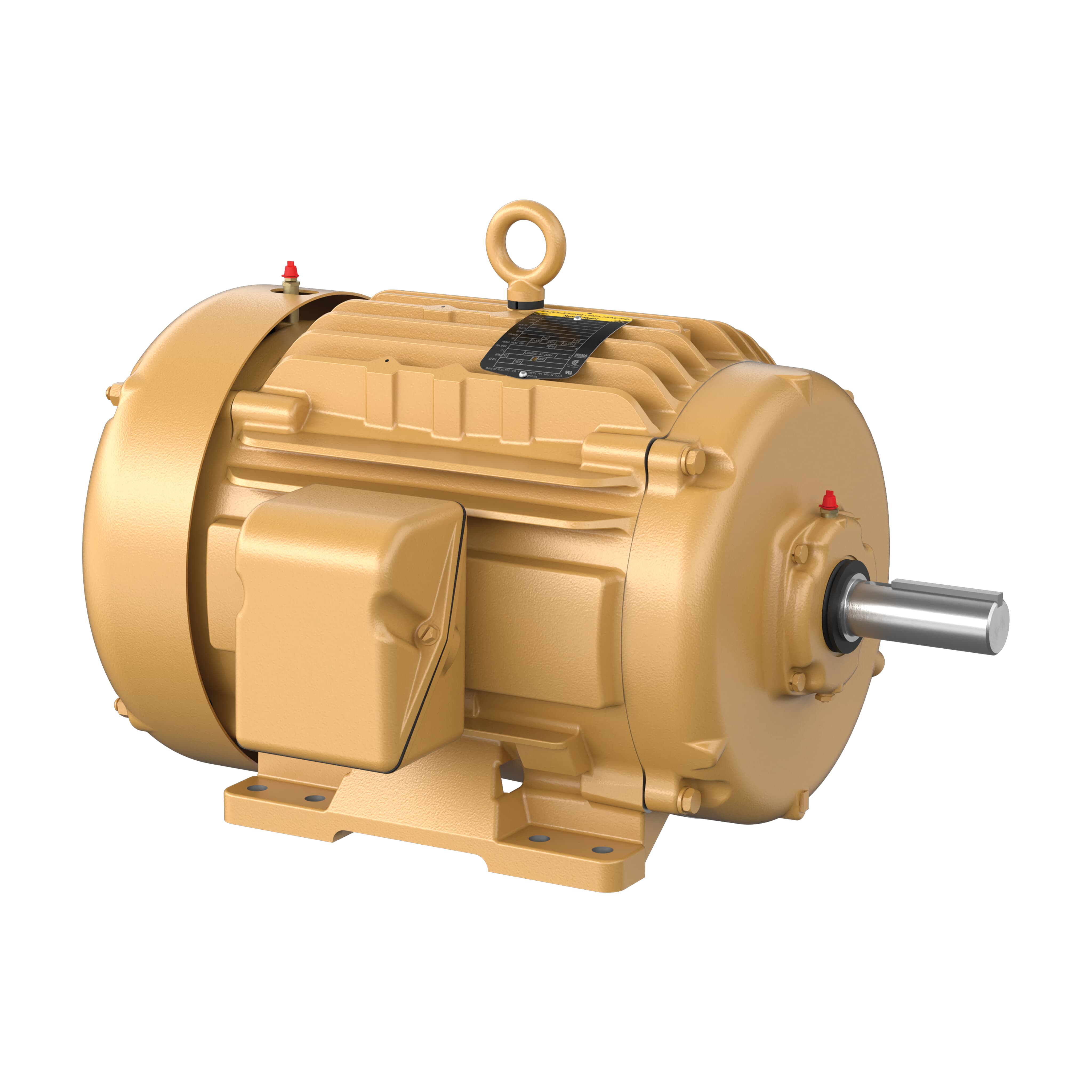

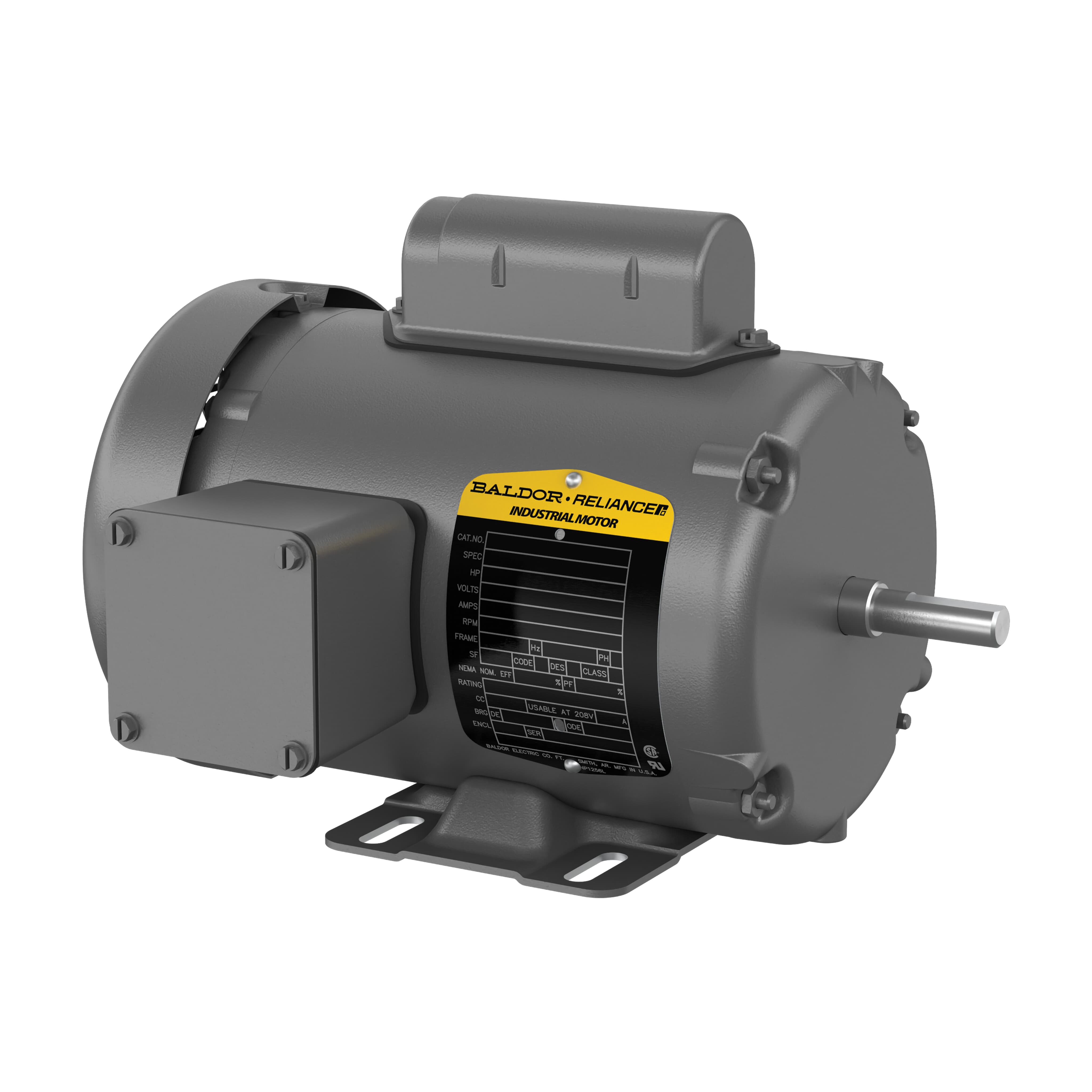

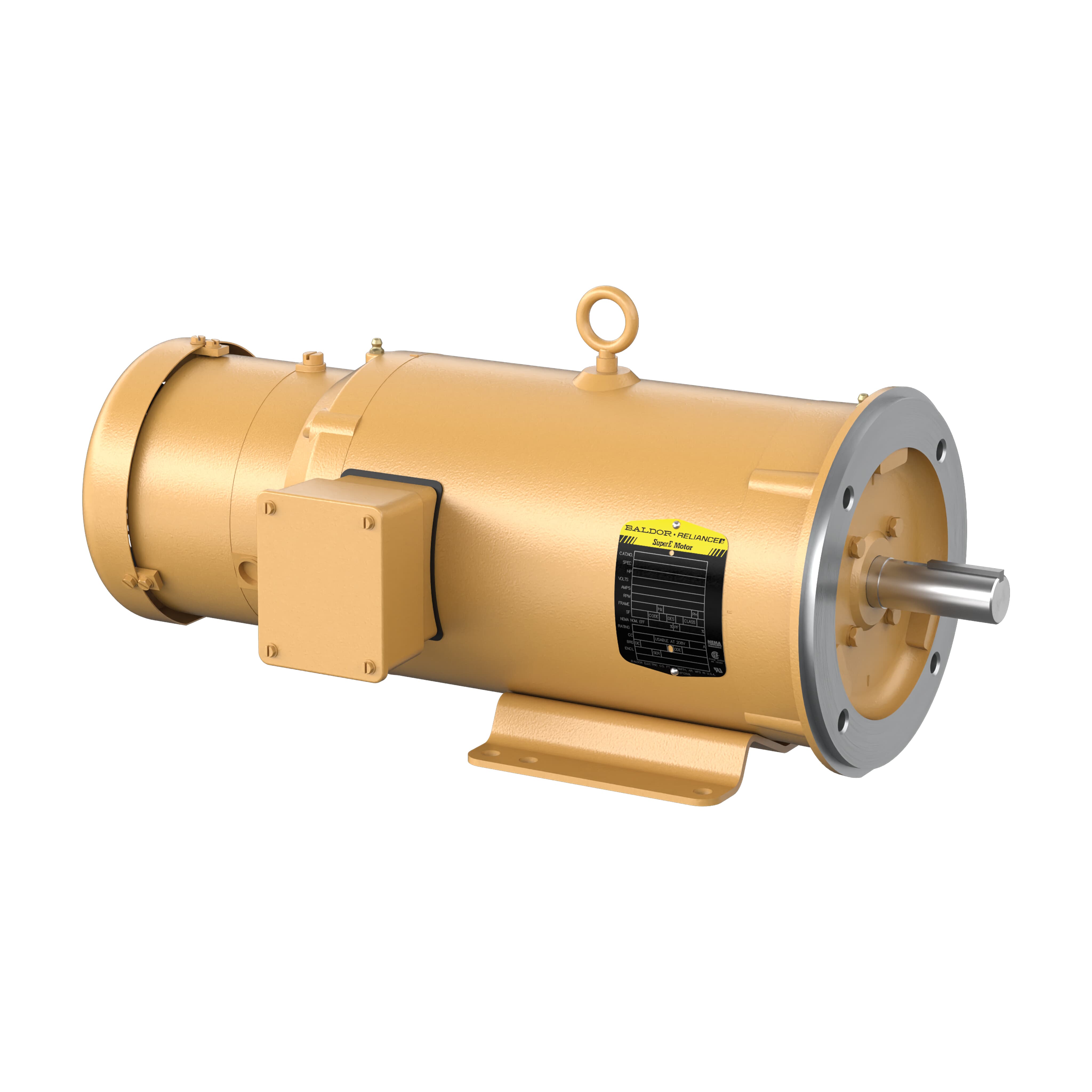

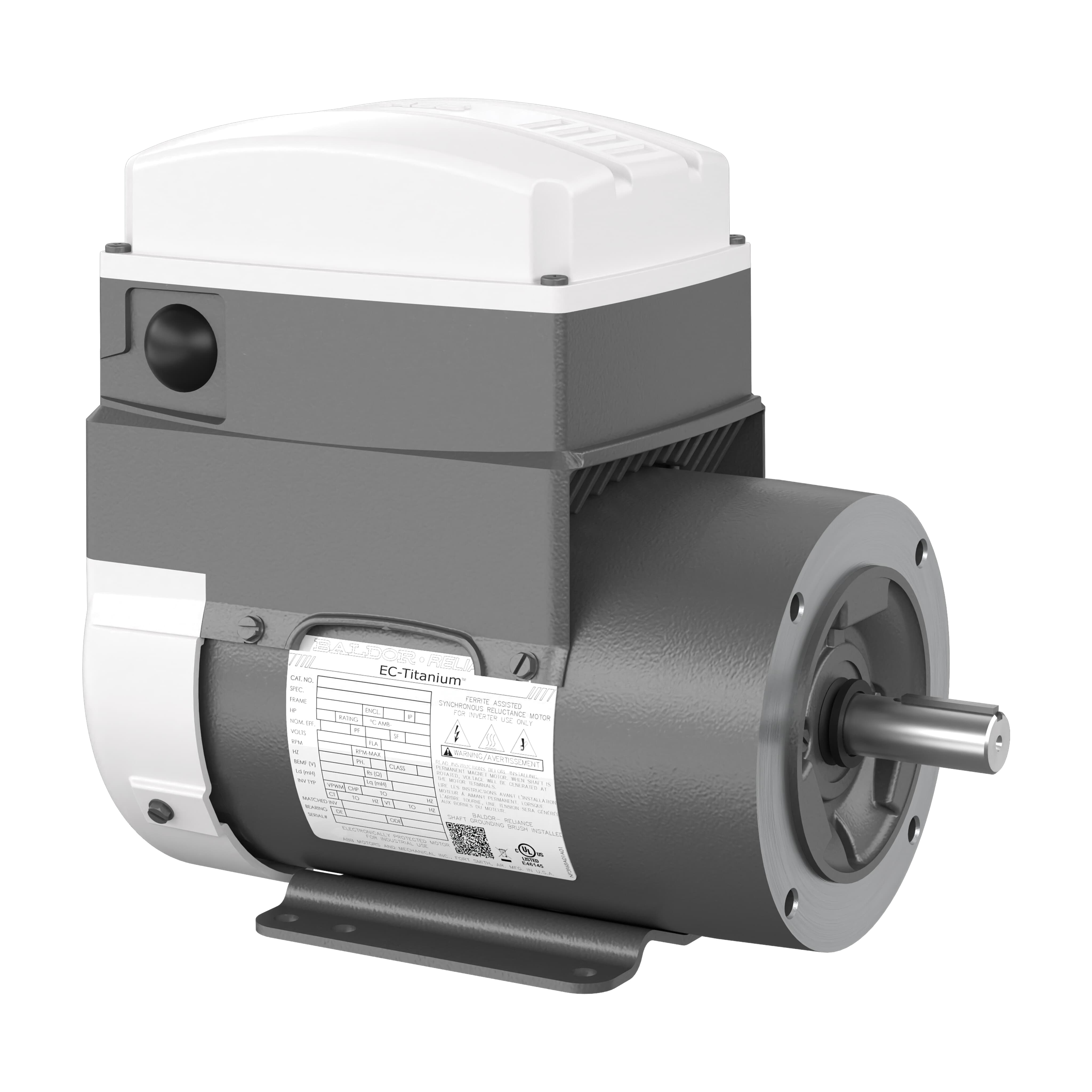

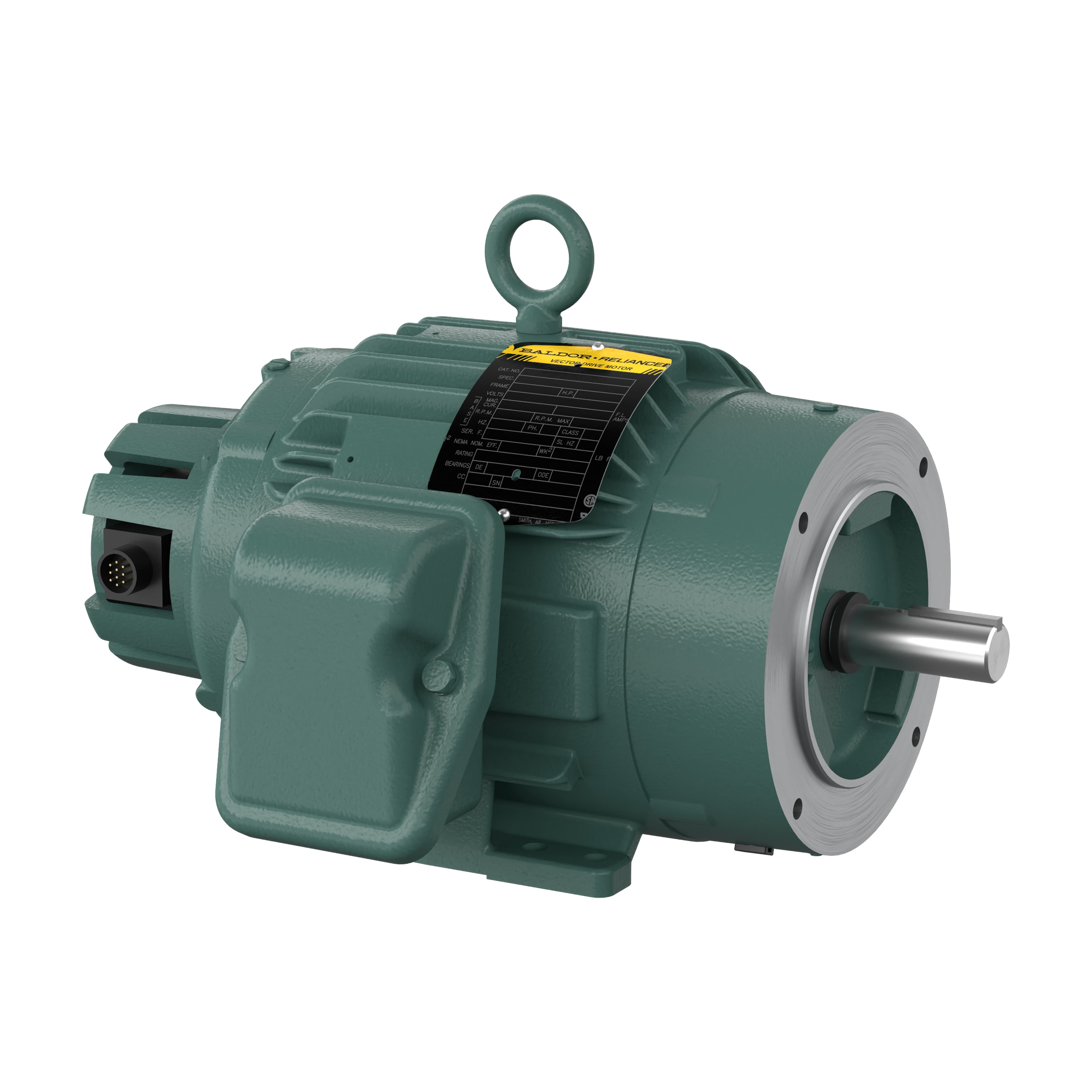

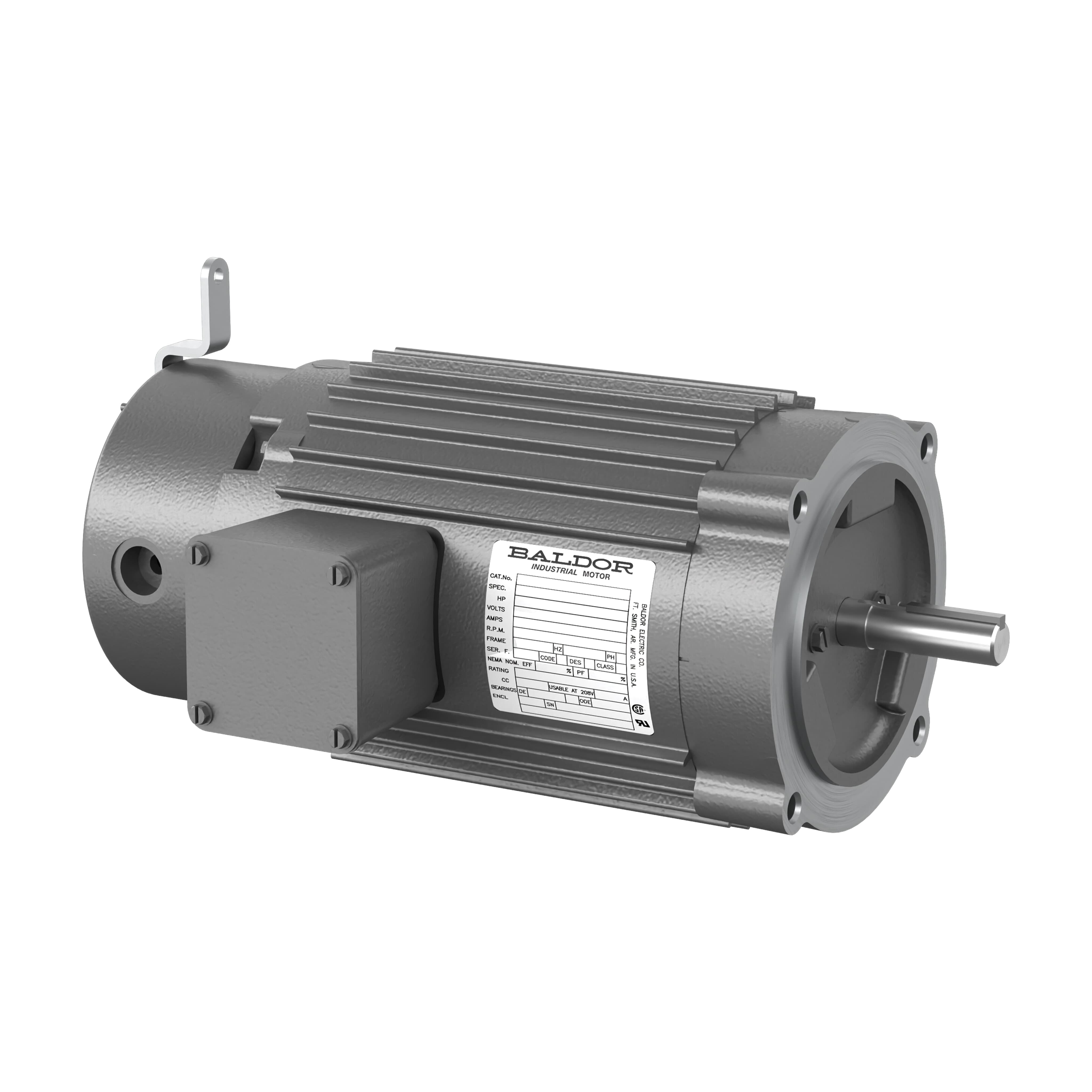

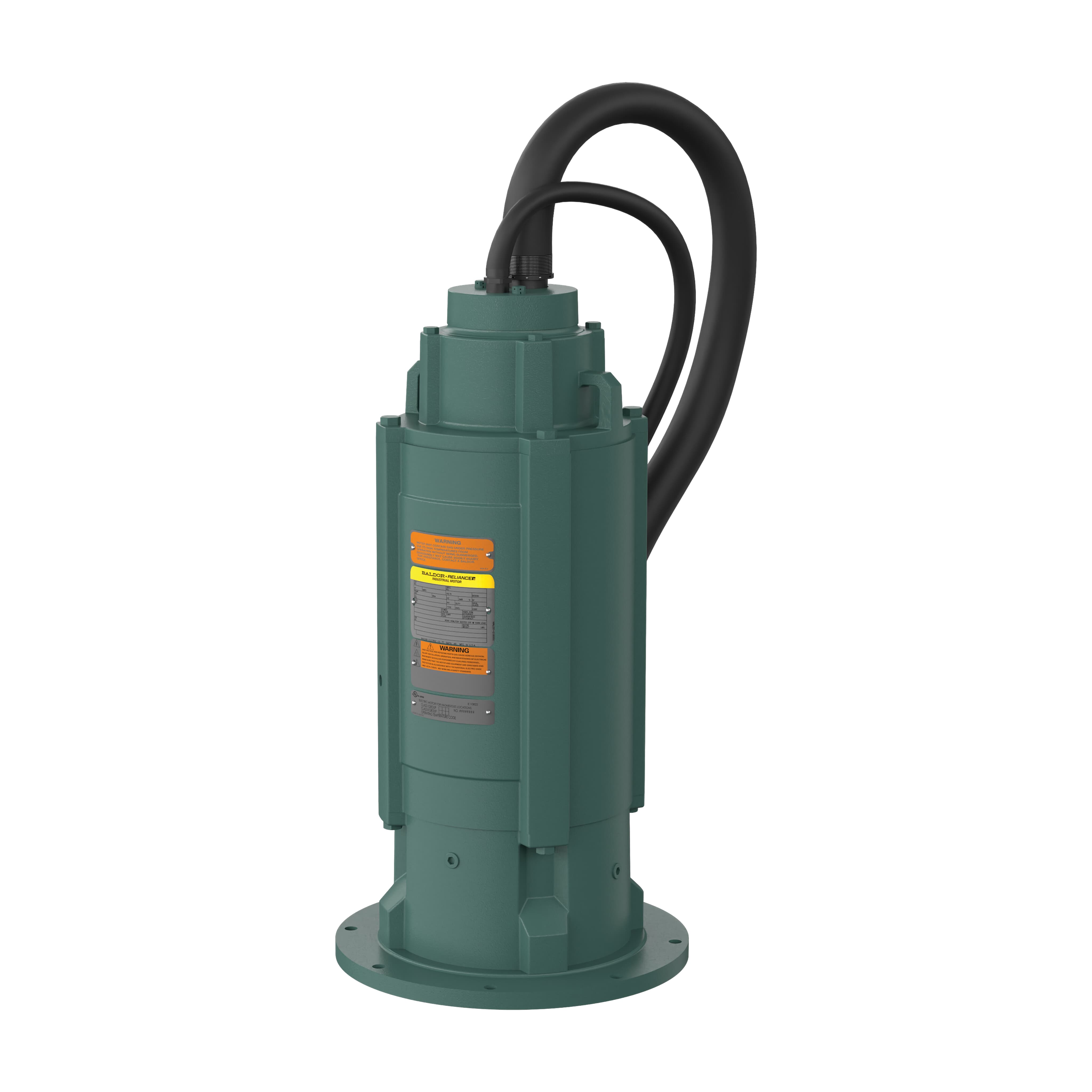

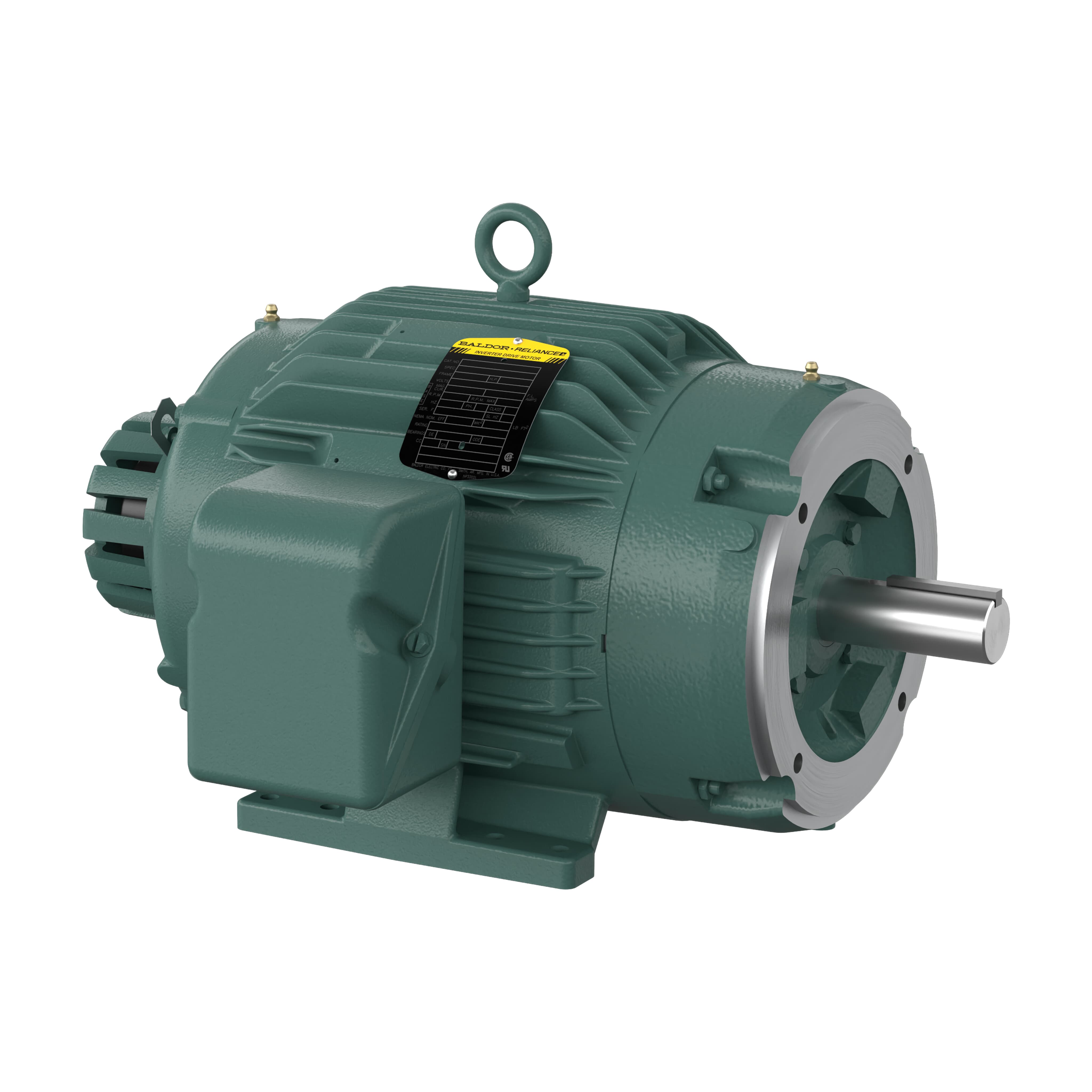

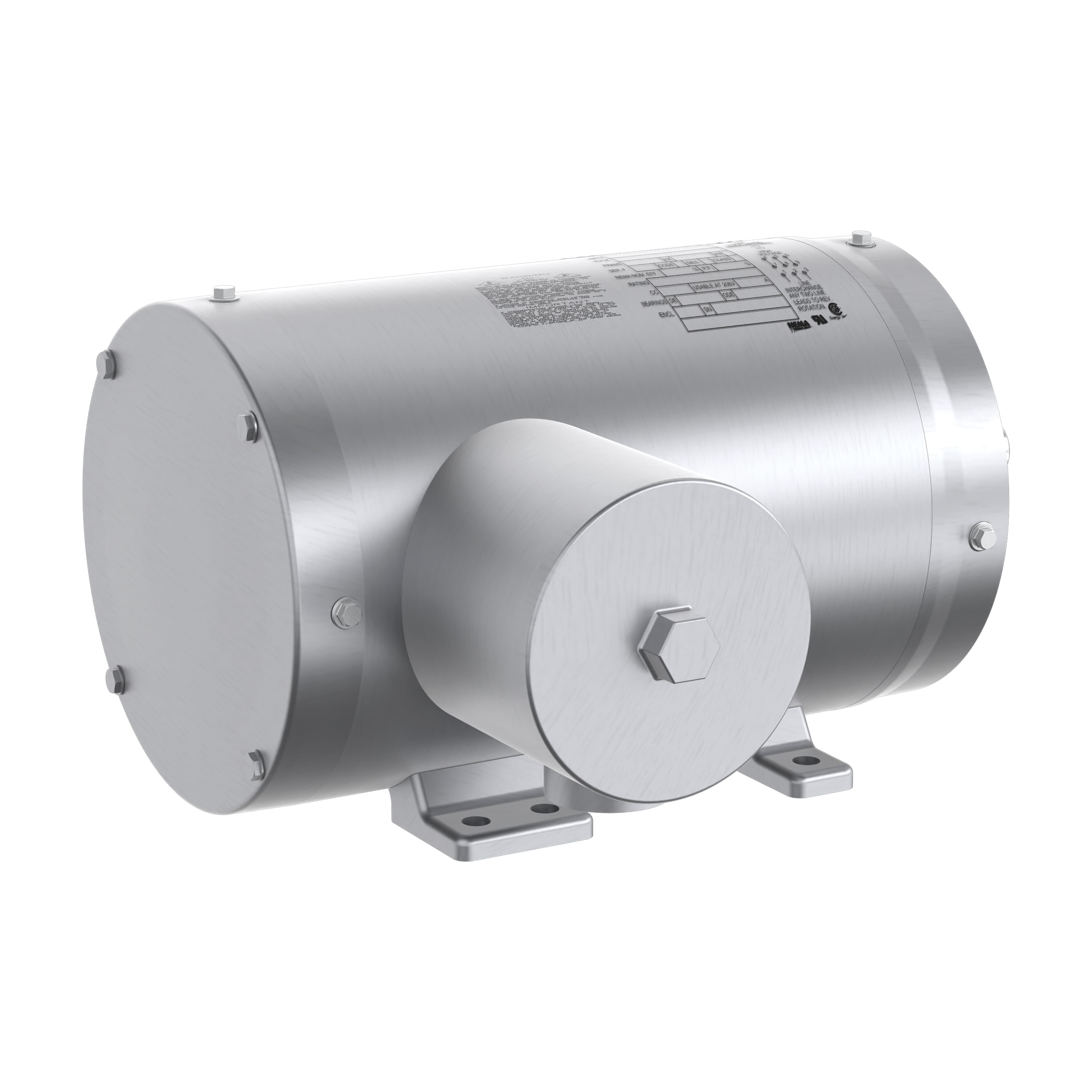

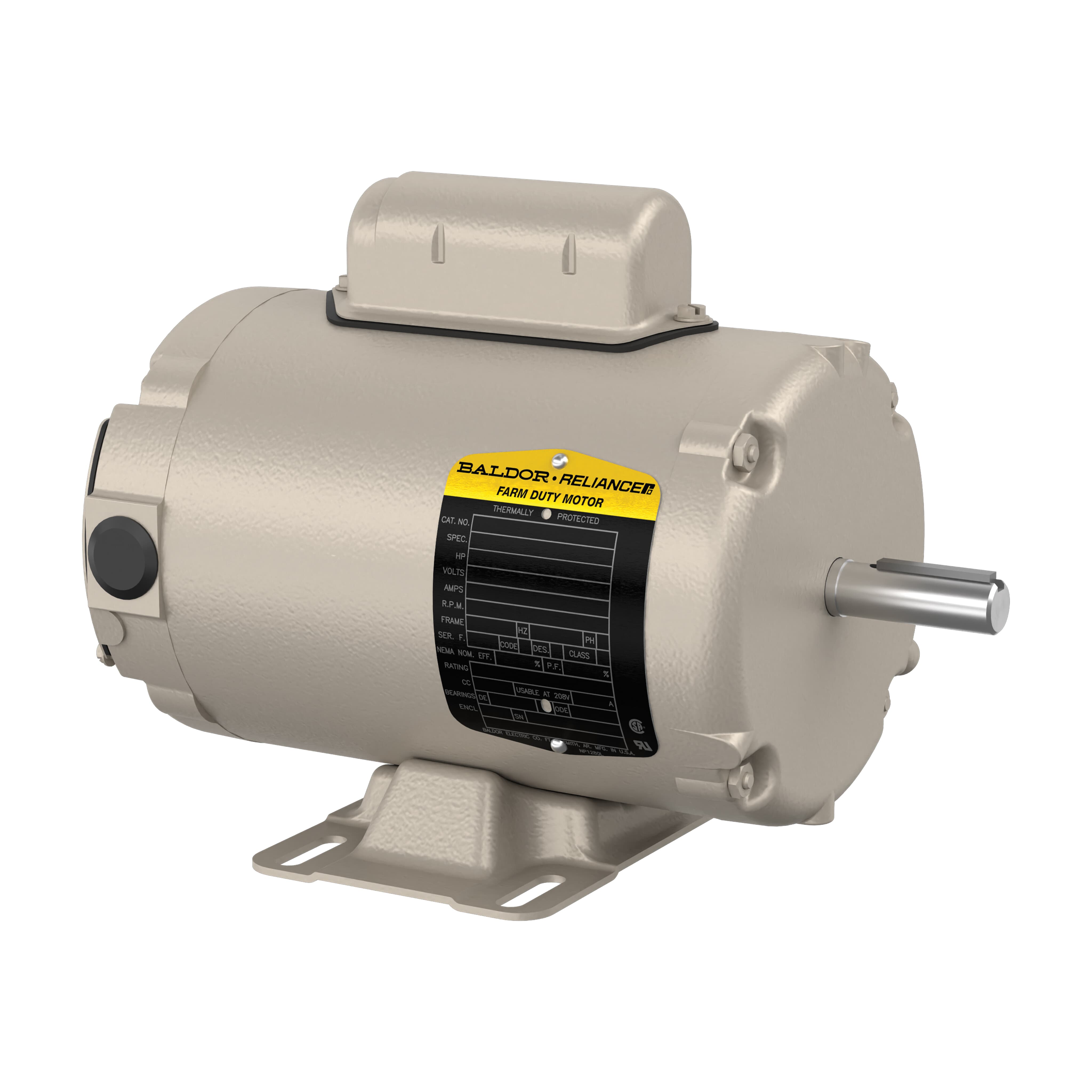

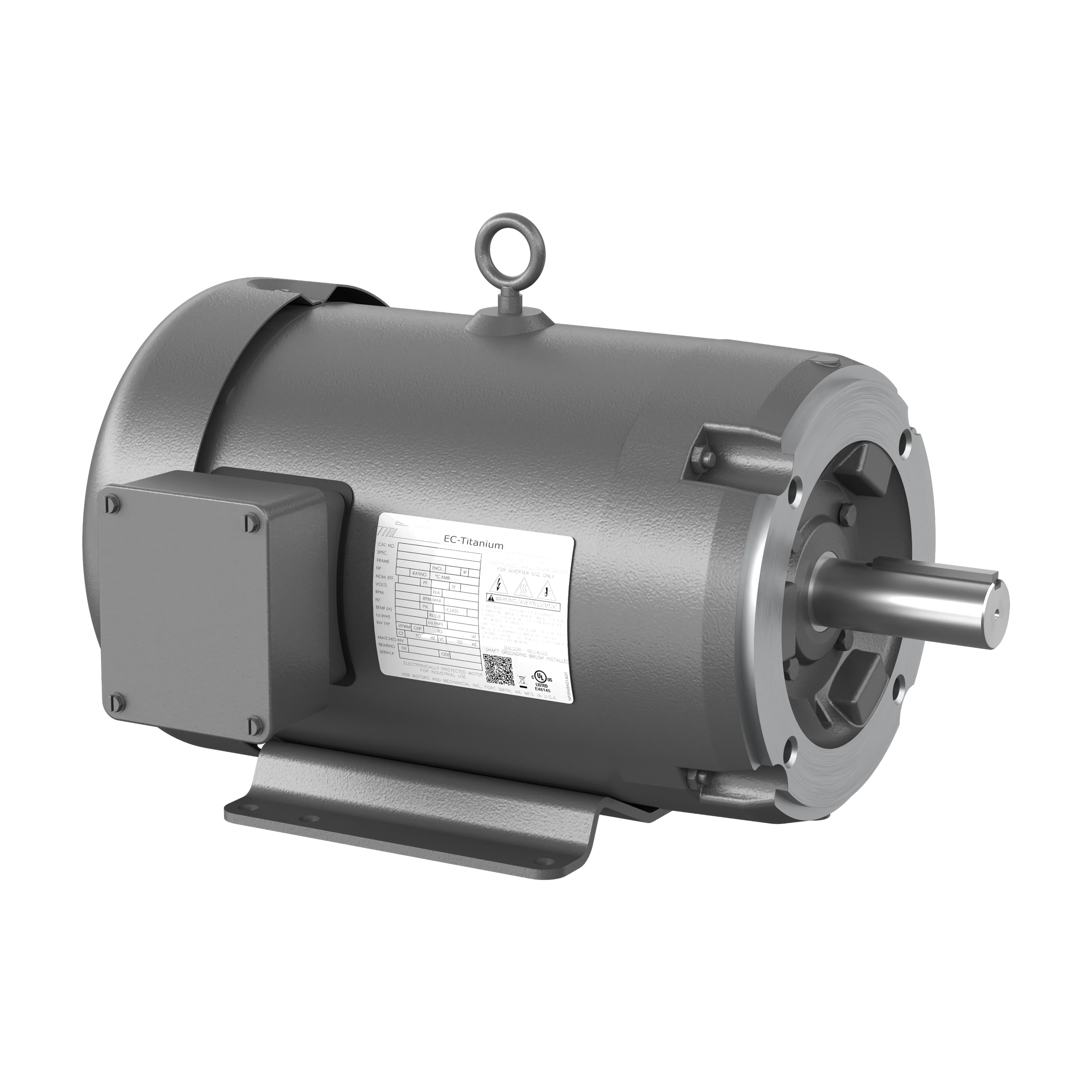

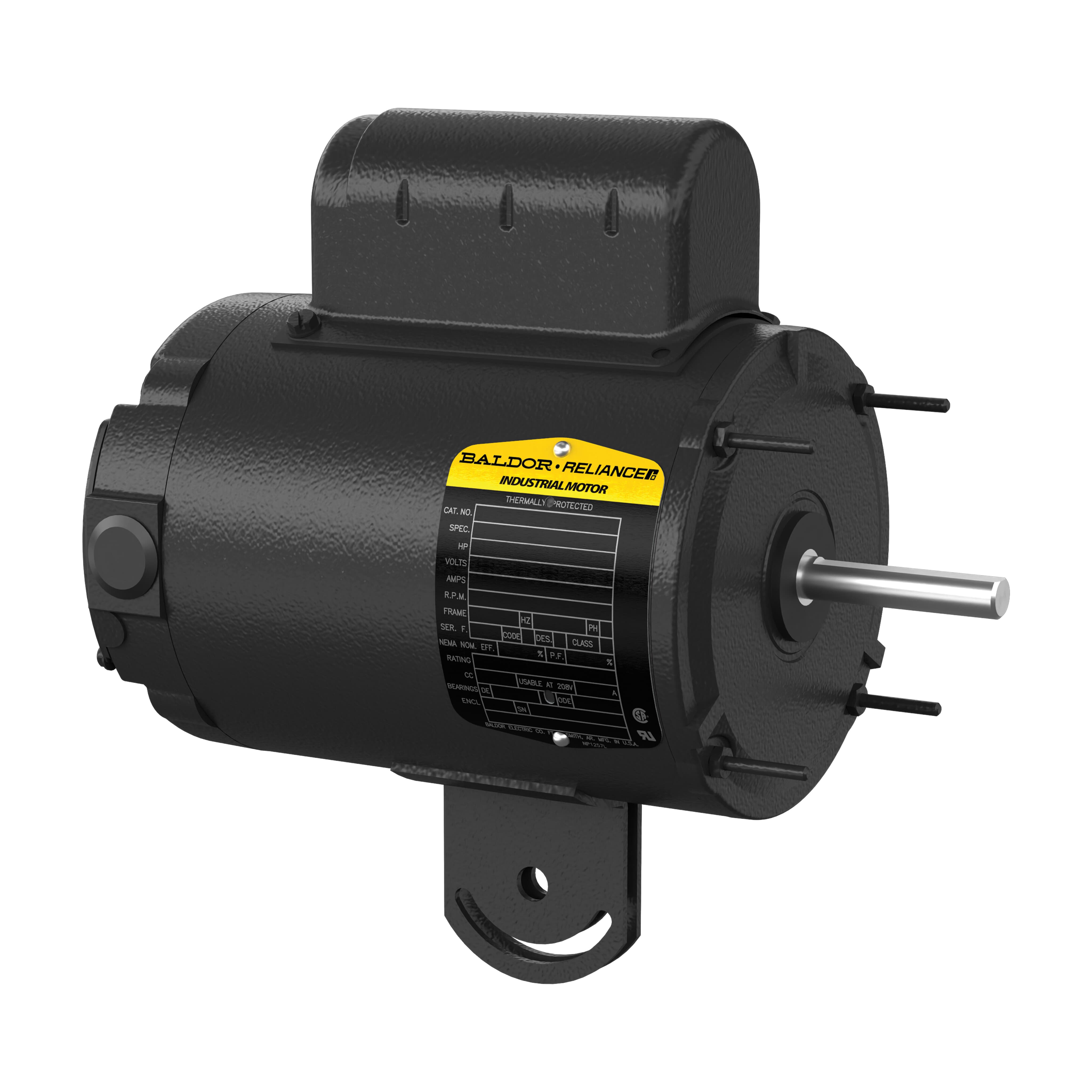

We have a large selection of new ABB electric motors for sale from our location in Harrison Township, MI. Our motors come in varying levels of horsepower, RPM, size, efficiency, voltage, and amperage. These motors are used for a wide variety of applications from industrial machines and vehicles to household appliances and power tools.
Other electric motor services we offer include:
To learn more about the New ABB motors we offer, contact our office today.
A&C Electric is a certified distributor service center.
